Home >> Lexus >> 2011 >> GX 460 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Condenser Fan >> Notes

Condenser Fan: Notes

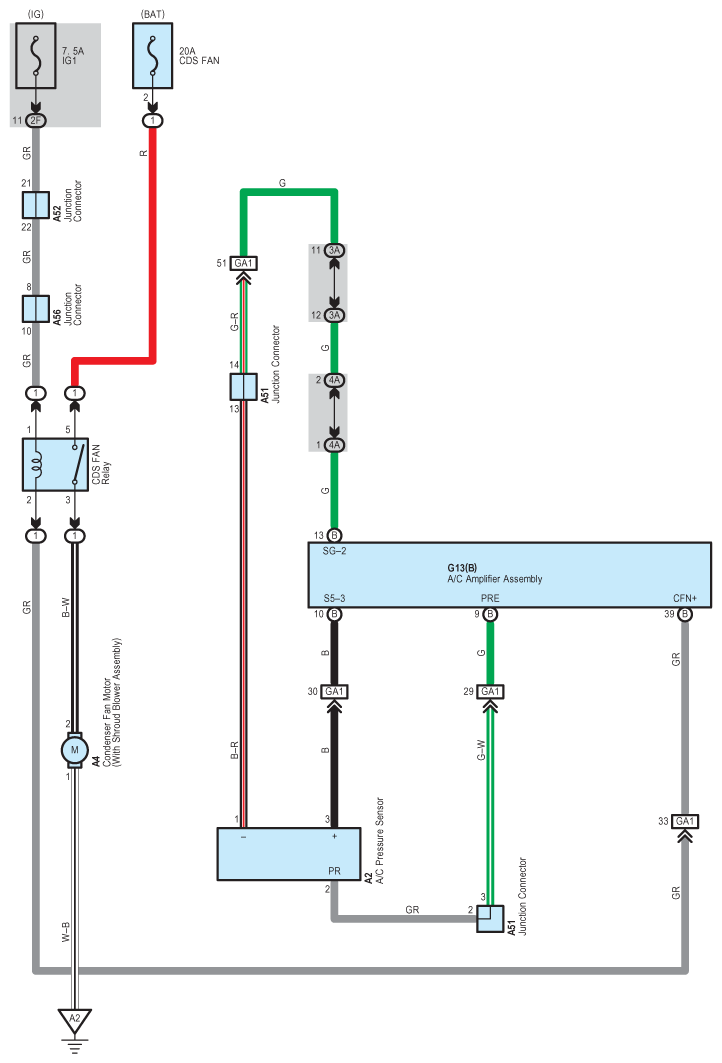

Fig 1: Condenser Fan - Circuit Diagram
G07580852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
