Cool Box: Notes

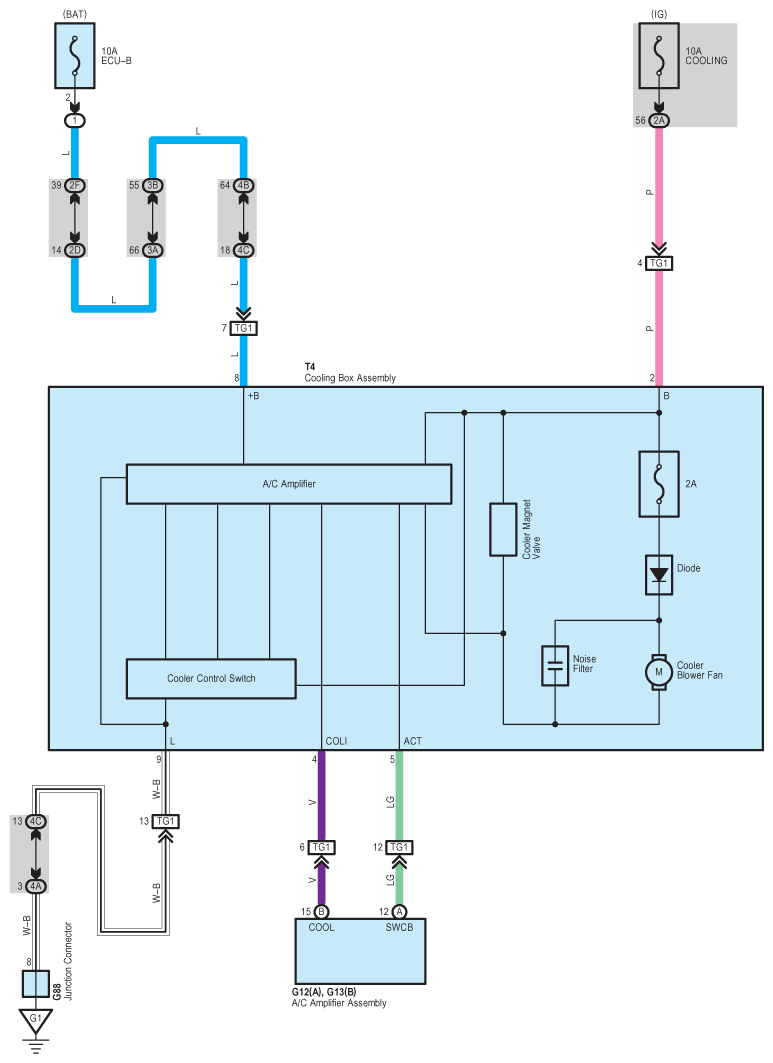

Fig 1: Cool Box - Circuit Diagram
G07580863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
