System Diagram

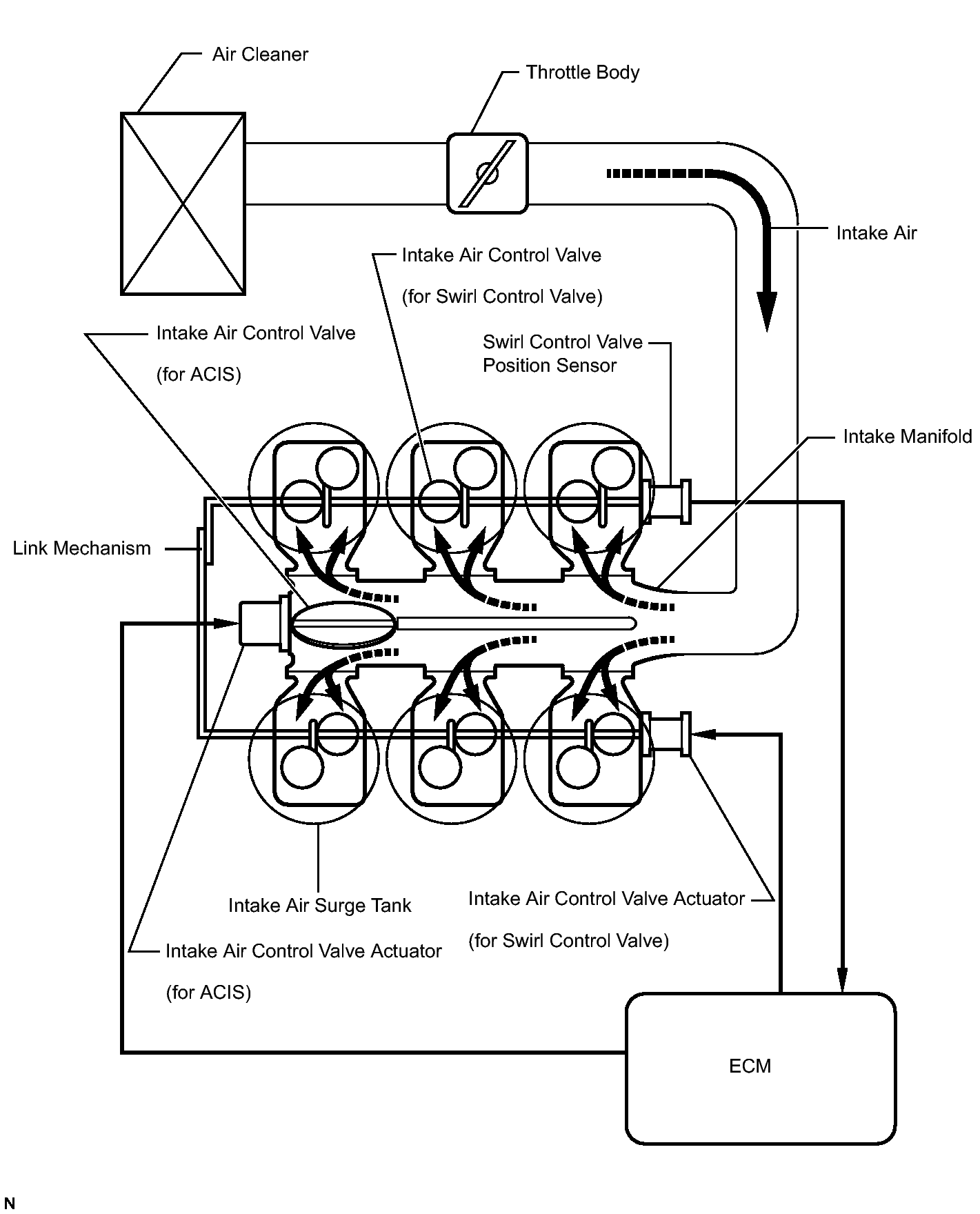

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM
    Fig 1: Intake Control System Valve Diagram
    GTY282839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

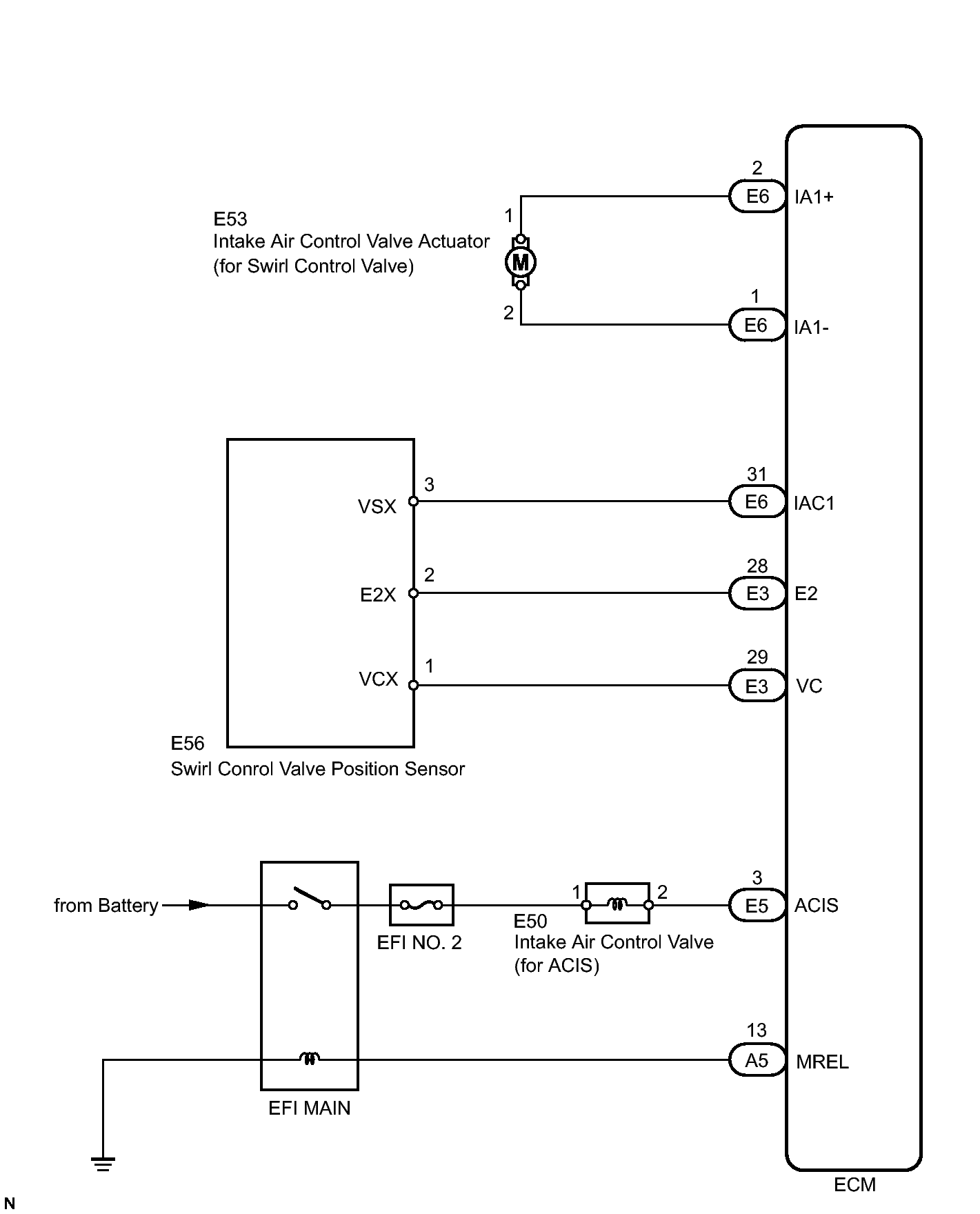

  2. ELECTRICAL WIRING DIAGRAM
    Fig 2: Intake Control System - Wiring Diagram
    GTY274036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
