OEM System Circuits: Charging: Notes

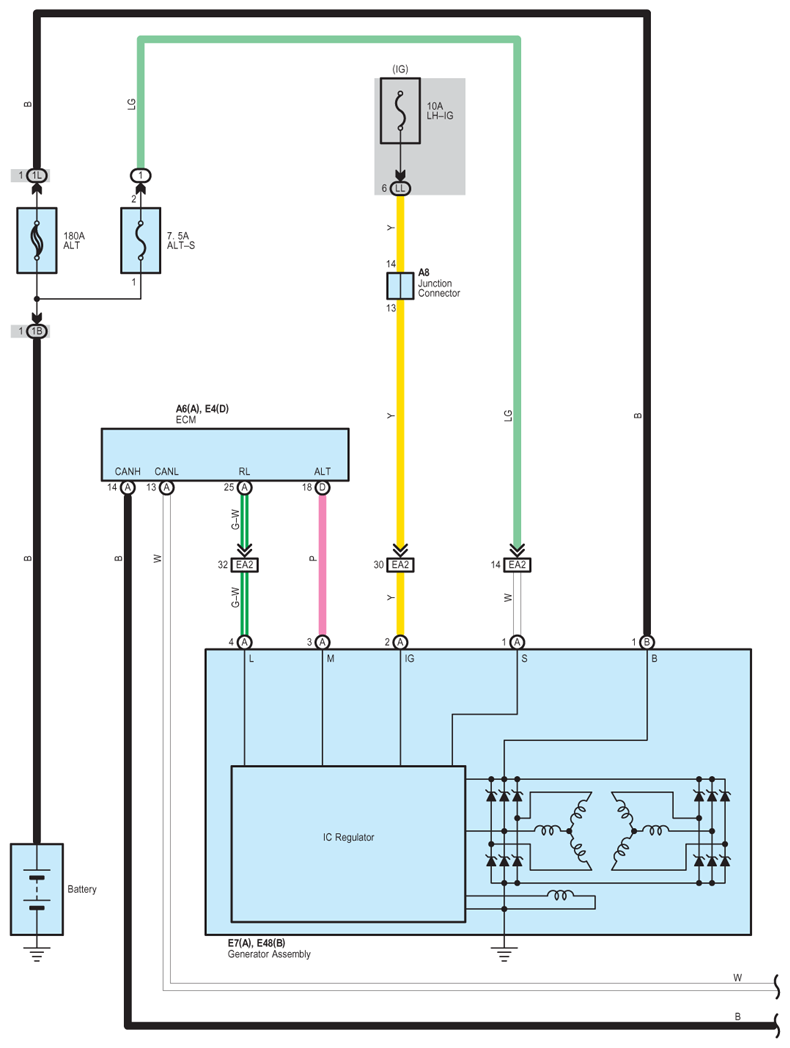

Fig 1: Charging - Circuit Diagram (1 Of 2)
G07579957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Charging - Circuit Diagram (2 Of 2)
G07579958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
