Data Link Connector 3: Notes

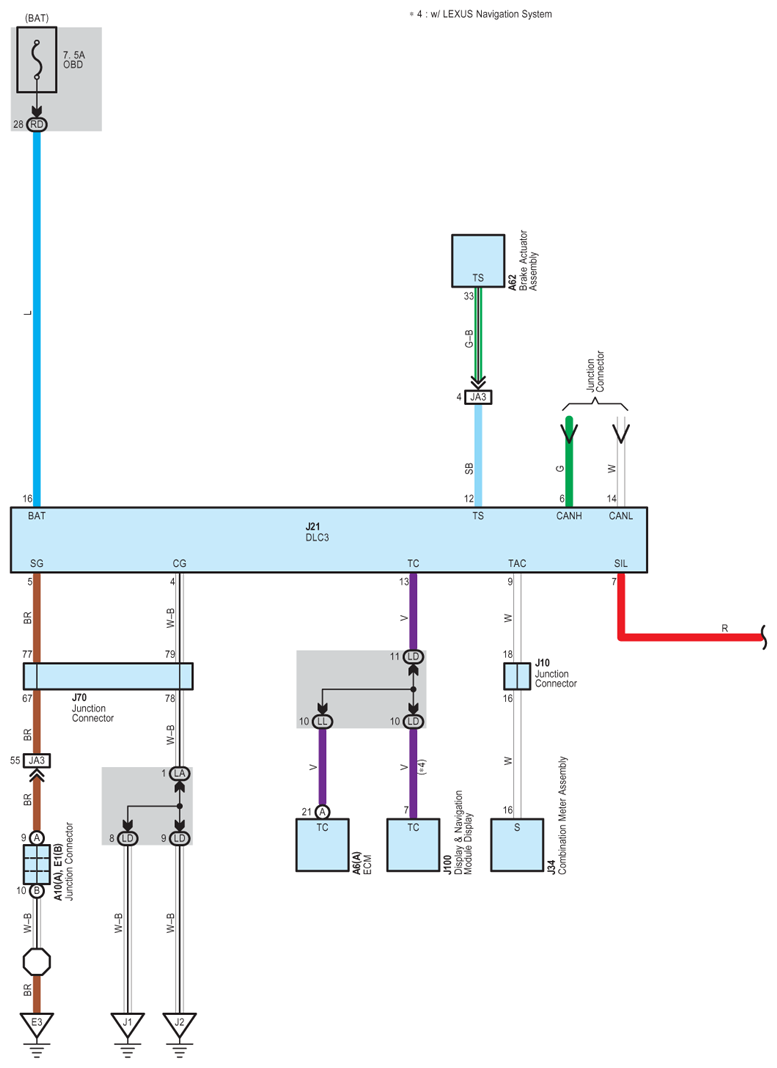

Fig 1: Data Link Connector 3 - Circuit Diagram (1 Of 2)
G07579989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

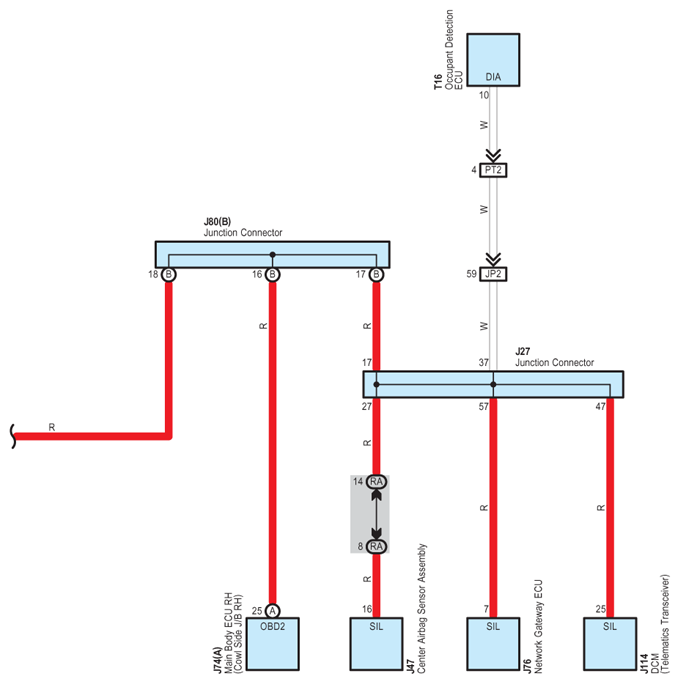

Fig 2: Data Link Connector 3 - Circuit Diagram (2 Of 2)
G07579990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
