Front Wiper and Washer: Notes

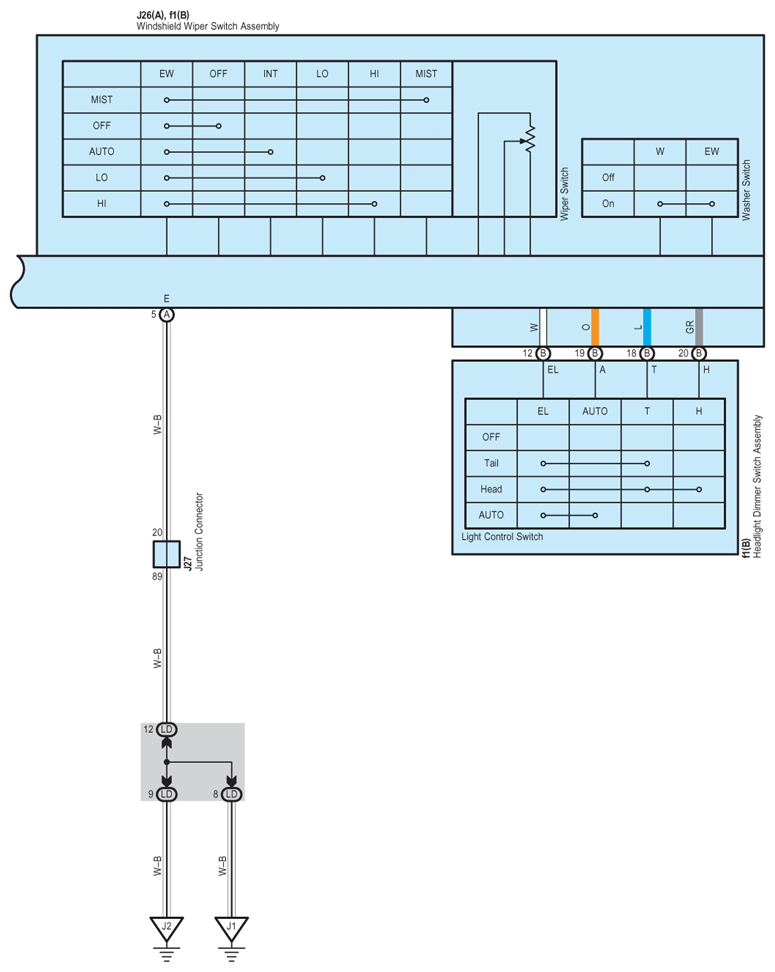

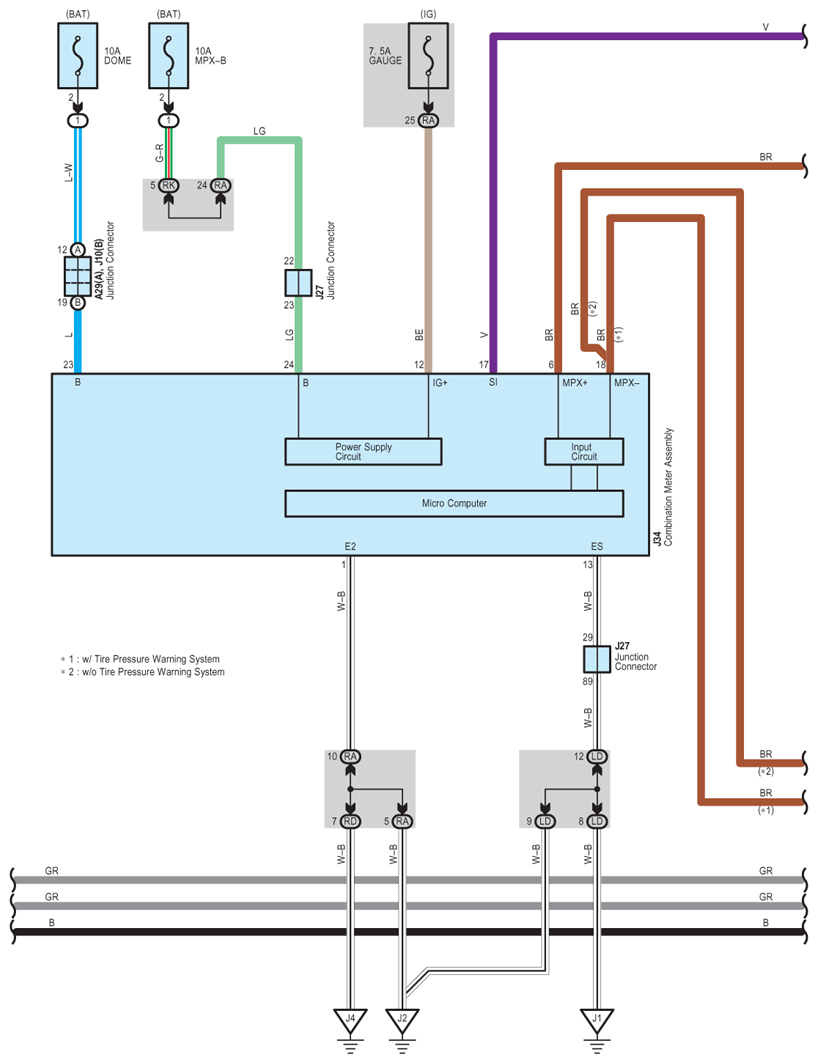

Fig 1: Front Wiper And Washer - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

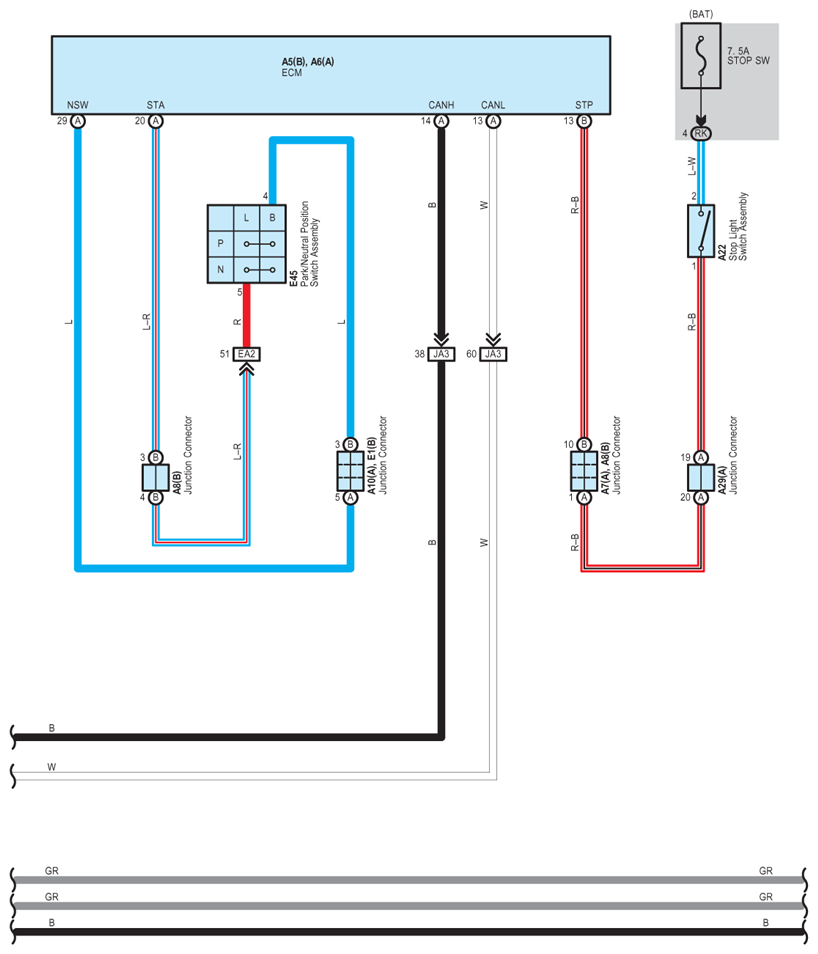

Fig 2: Front Wiper And Washer - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

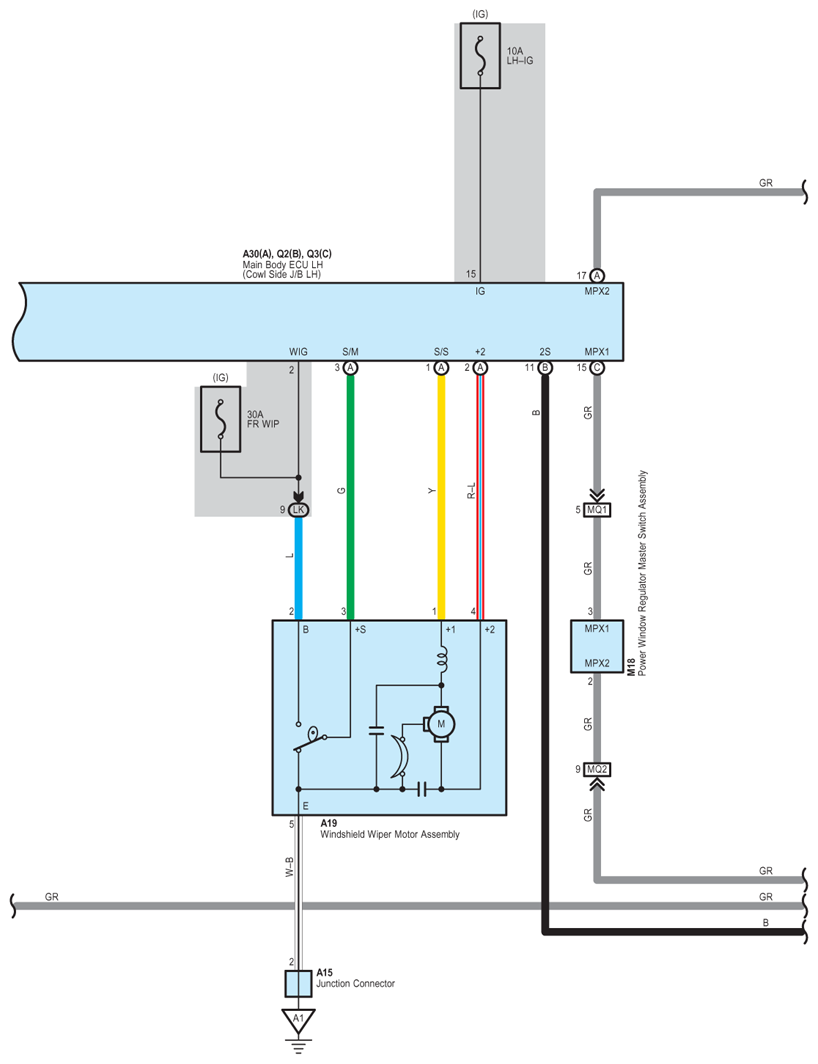

Fig 3: Front Wiper And Washer - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

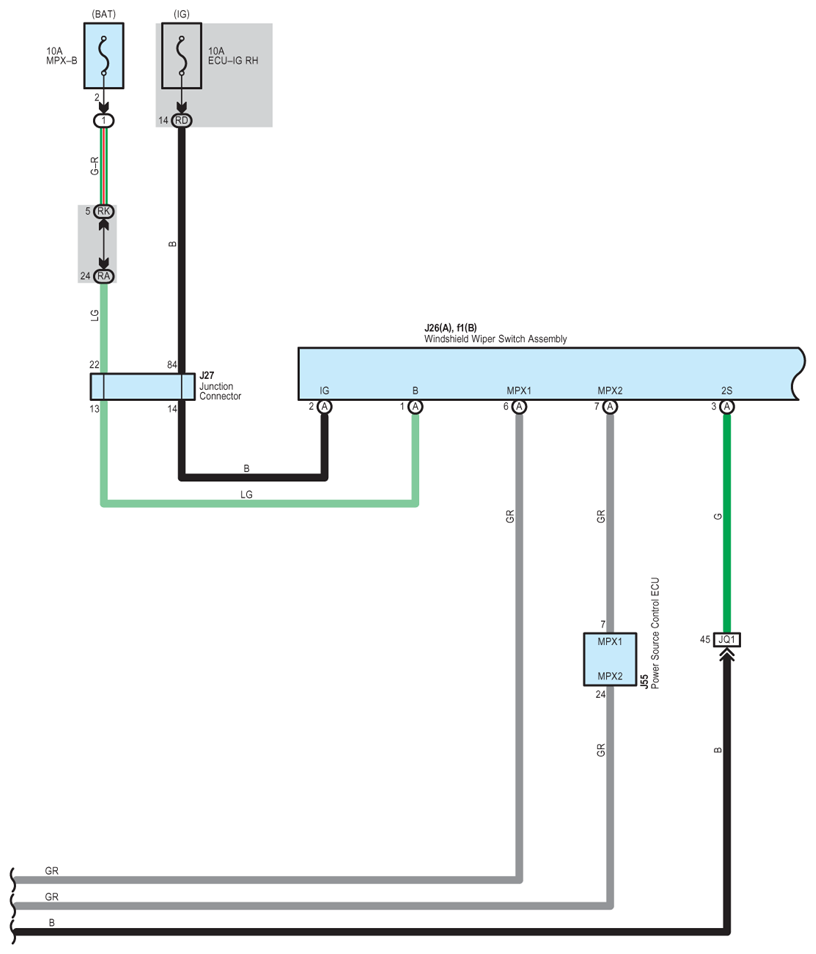

Fig 4: Front Wiper And Washer - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

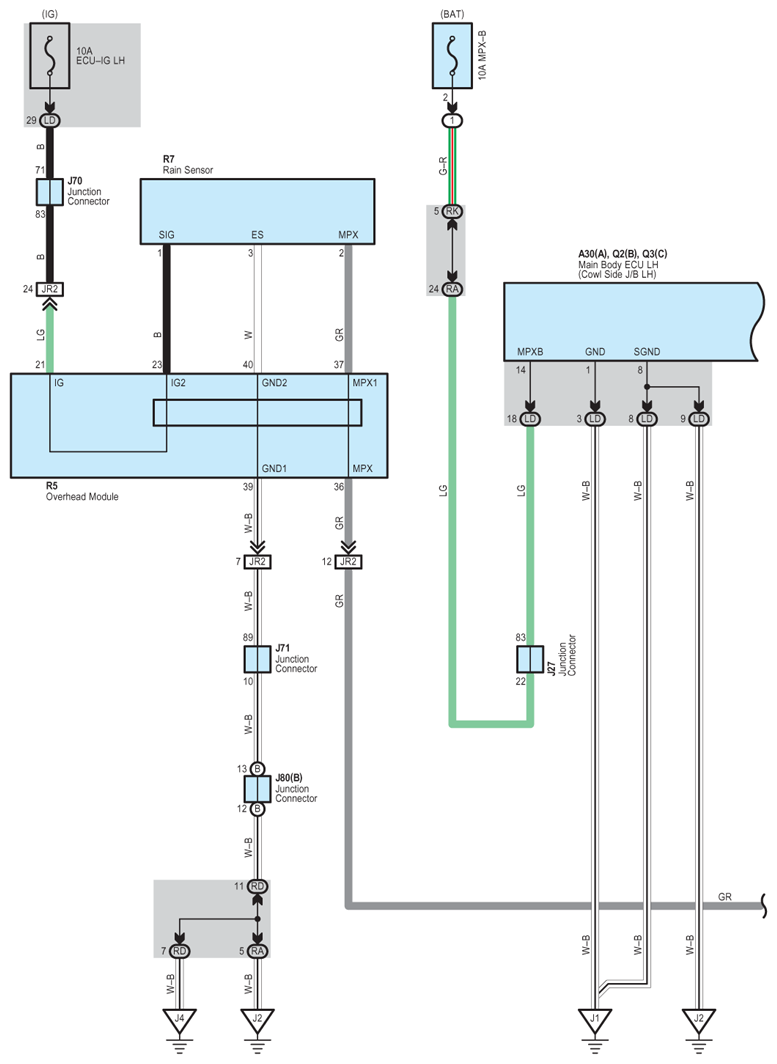

Fig 5: Front Wiper And Washer - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

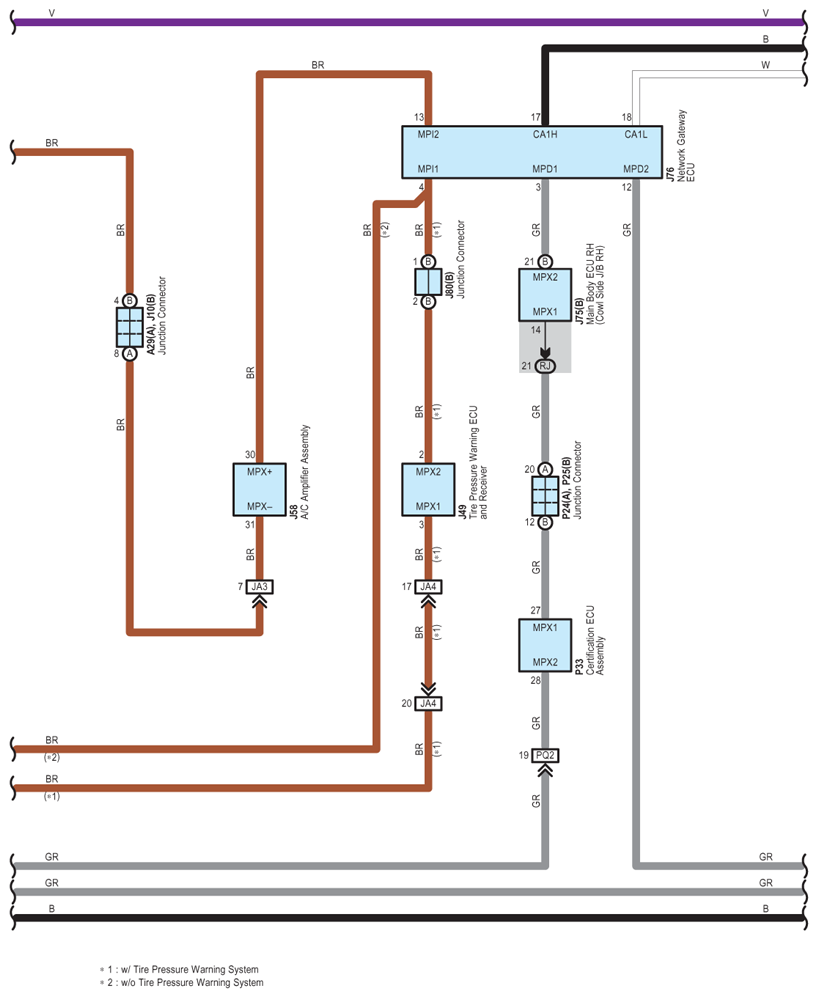

Fig 6: Front Wiper And Washer - Circuit Diagram (6 Of 9)

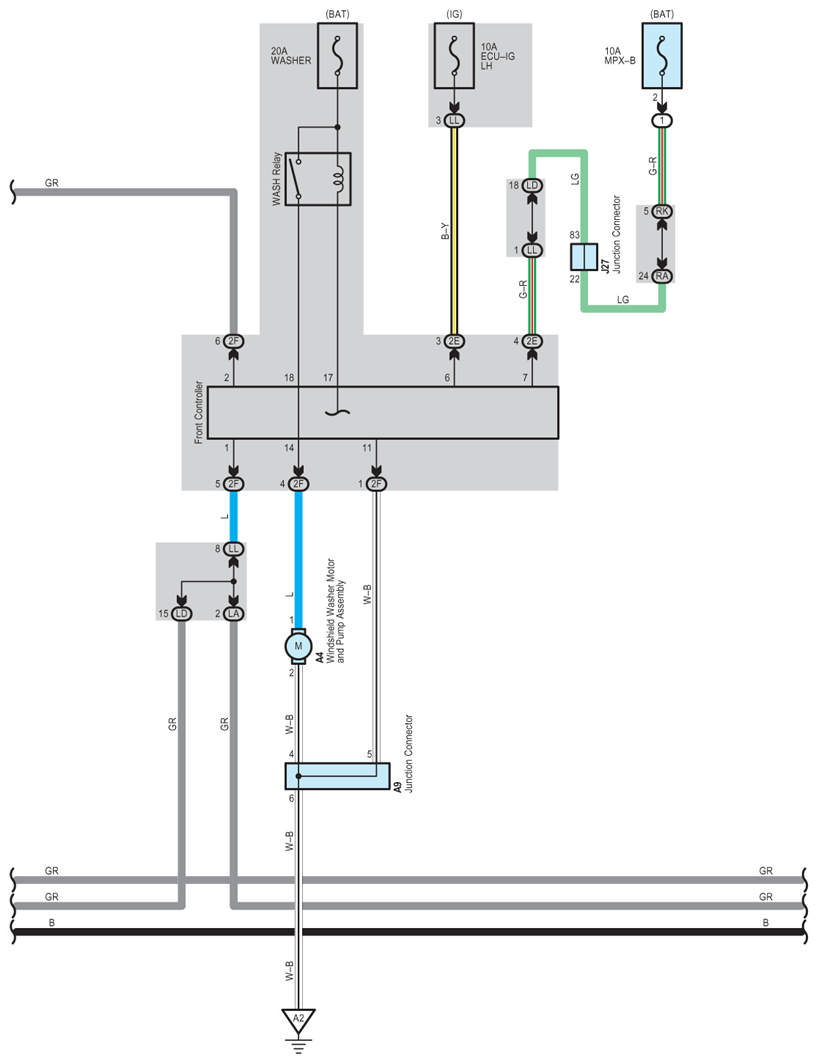

Fig 7: Front Wiper And Washer - Circuit Diagram (7 Of 9)

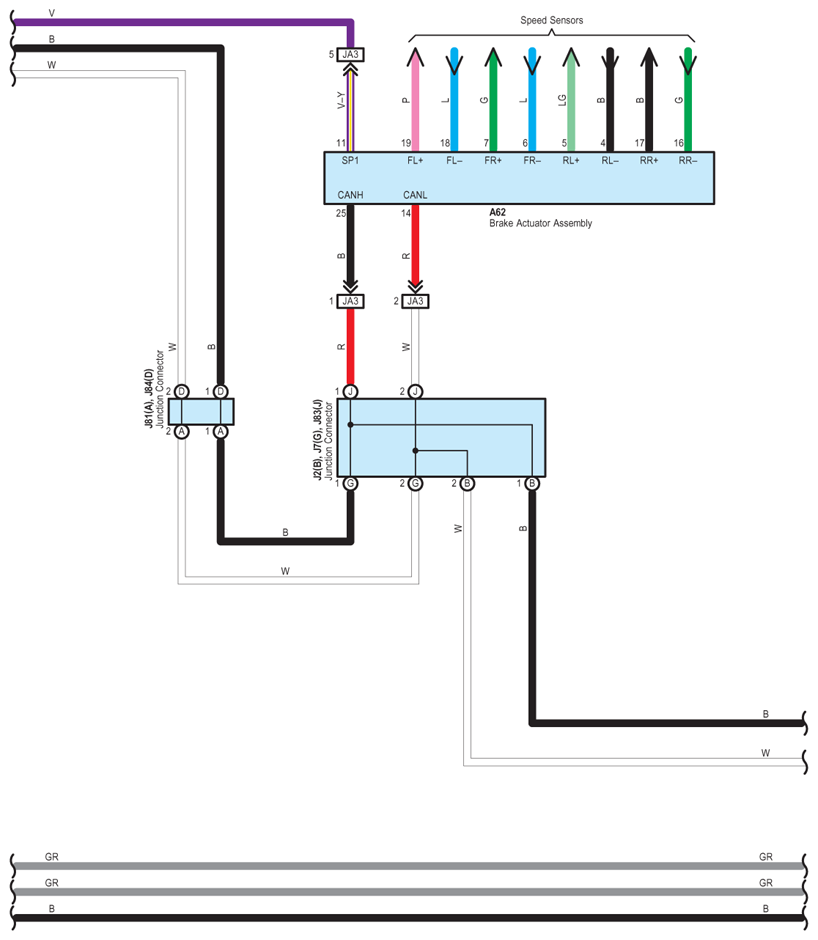

Fig 8: Front Wiper And Washer - Circuit Diagram (8 Of 9)

Fig 9: Front Wiper And Washer - Circuit Diagram (9 Of 9)
