OEM System Circuits: Ignition: Notes

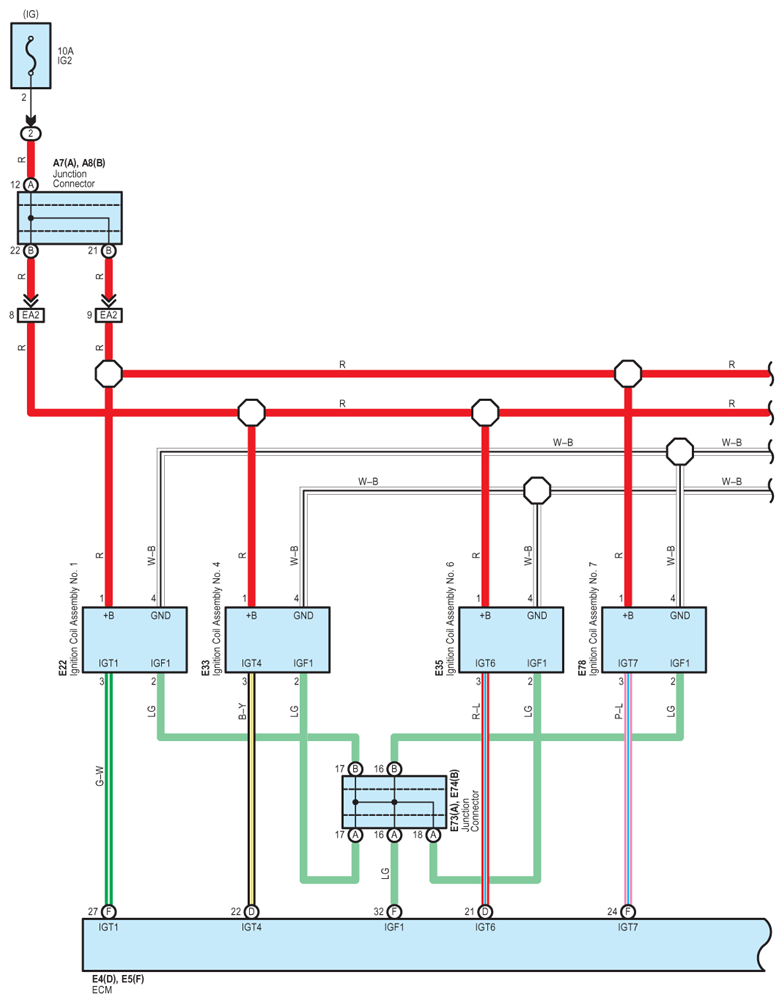

Fig 1: Ignition - Circuit Diagram (1 Of 2)
G07579955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

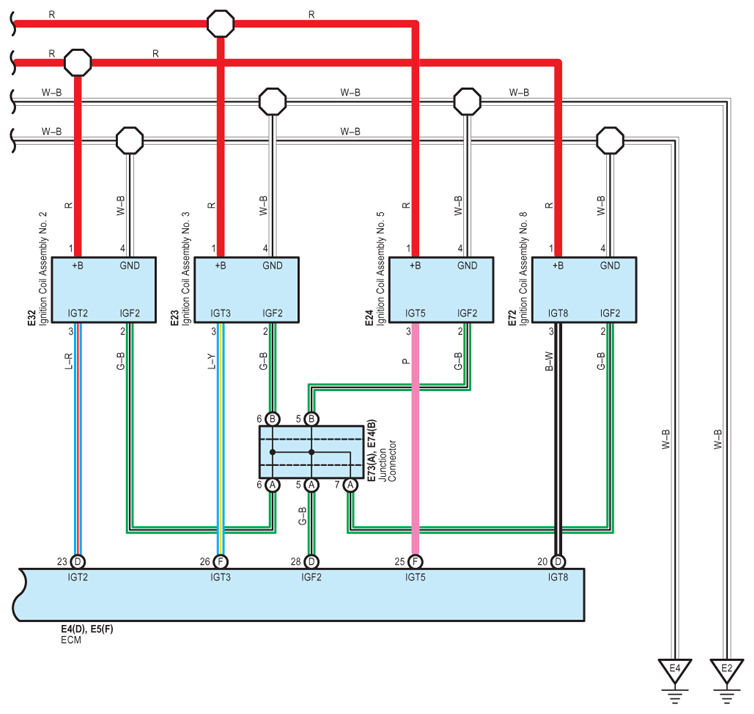

Fig 2: Ignition - Circuit Diagram (2 Of 2)
G07579956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
