Components Location: Illustration

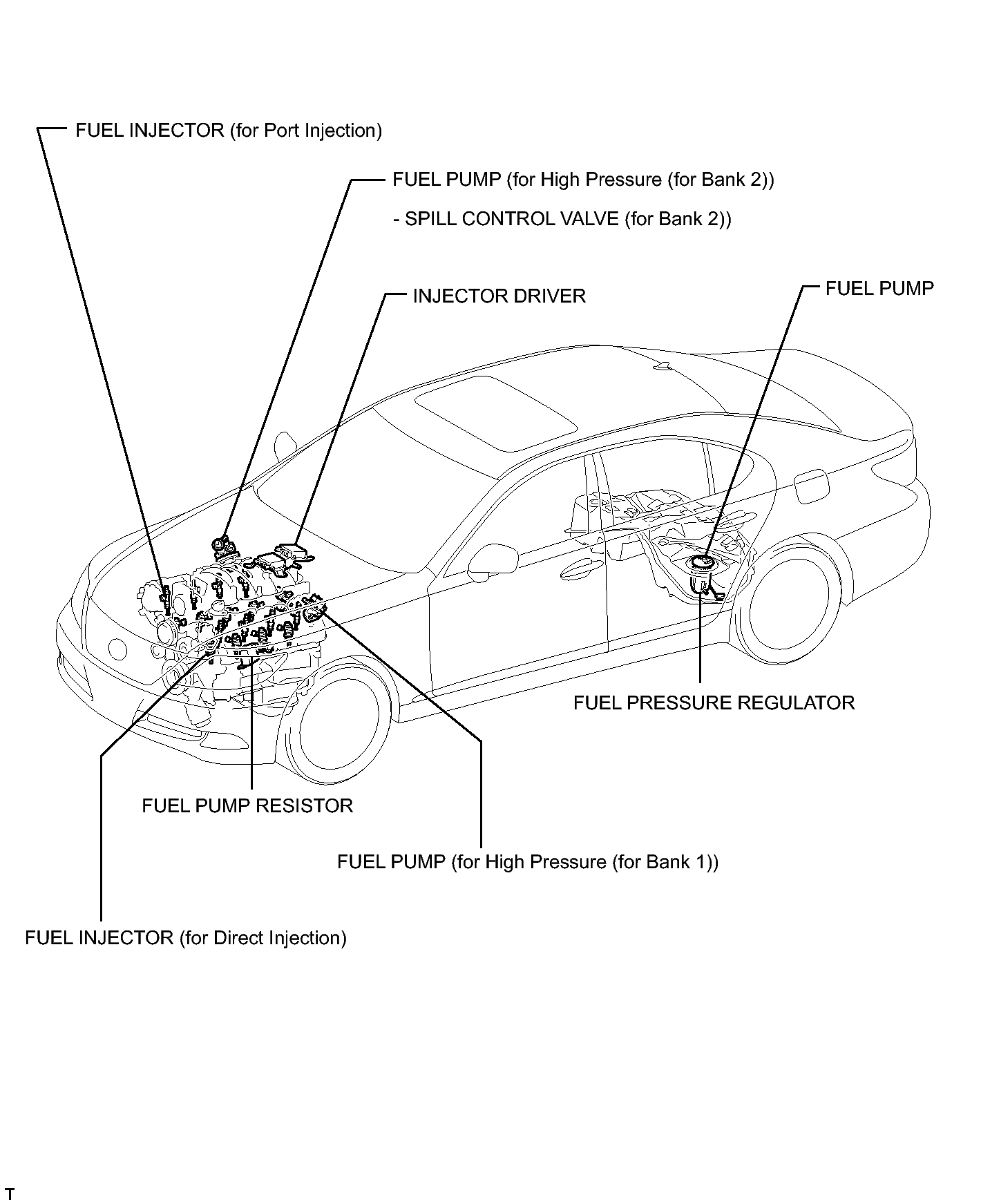

Fig 1: Identifying Fuel System Components Location (1 Of 2)
GTY288197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

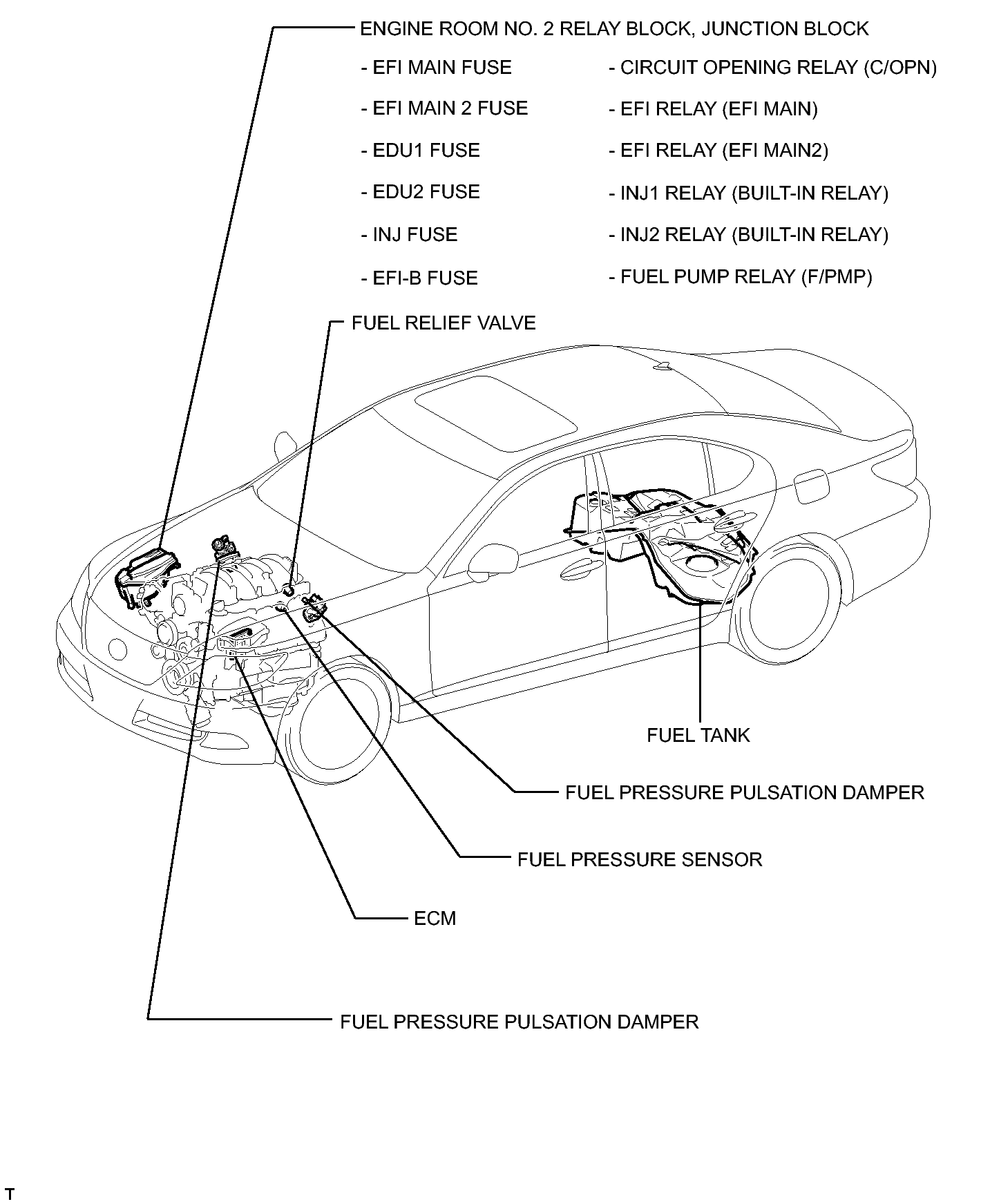

Fig 1: Identifying Fuel System Components Location (2 Of 2)
GTY272569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
