Components Location: Illustration

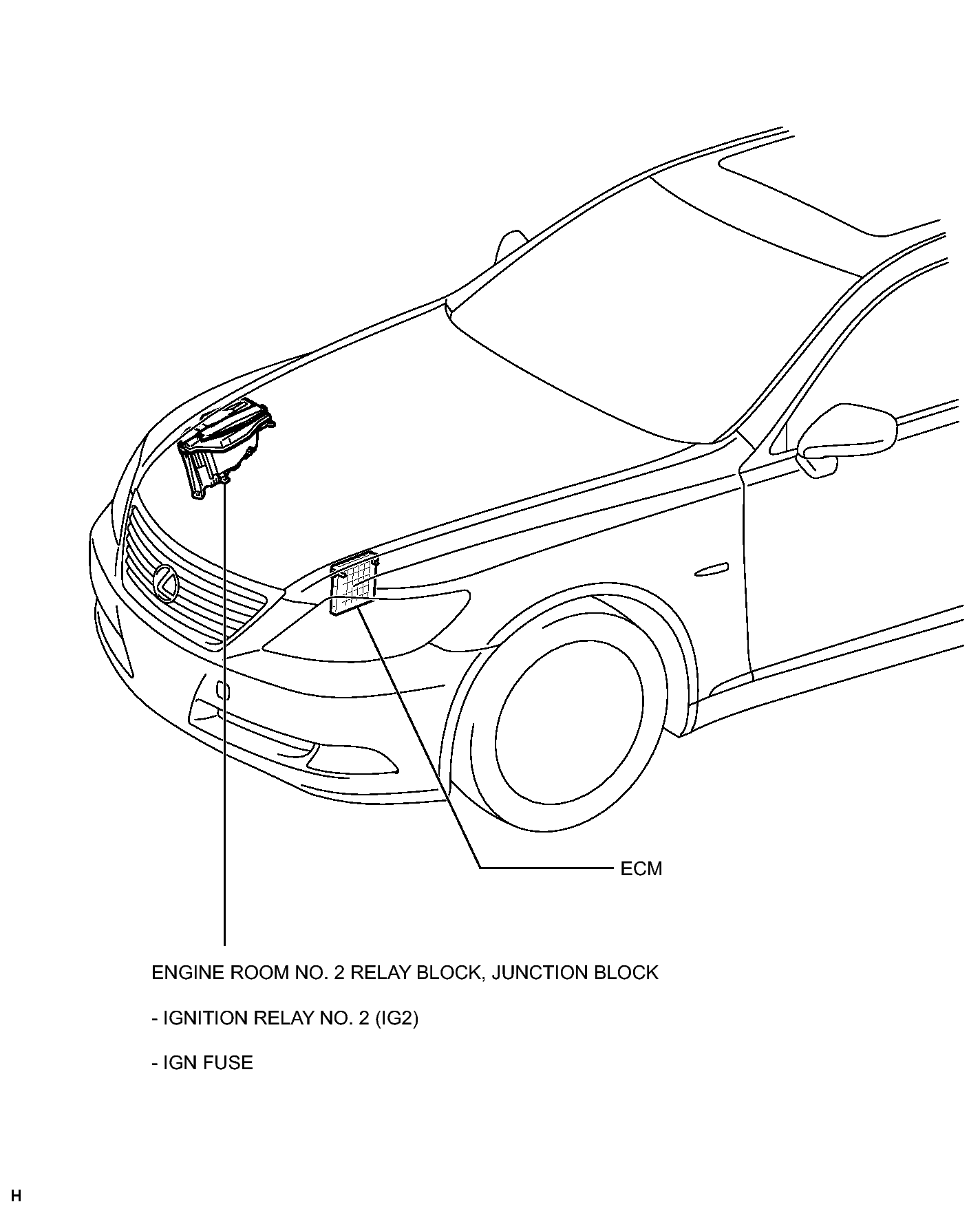

Fig 1: Identifying Ignition System Components Location (1 Of 2)
GTY284907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

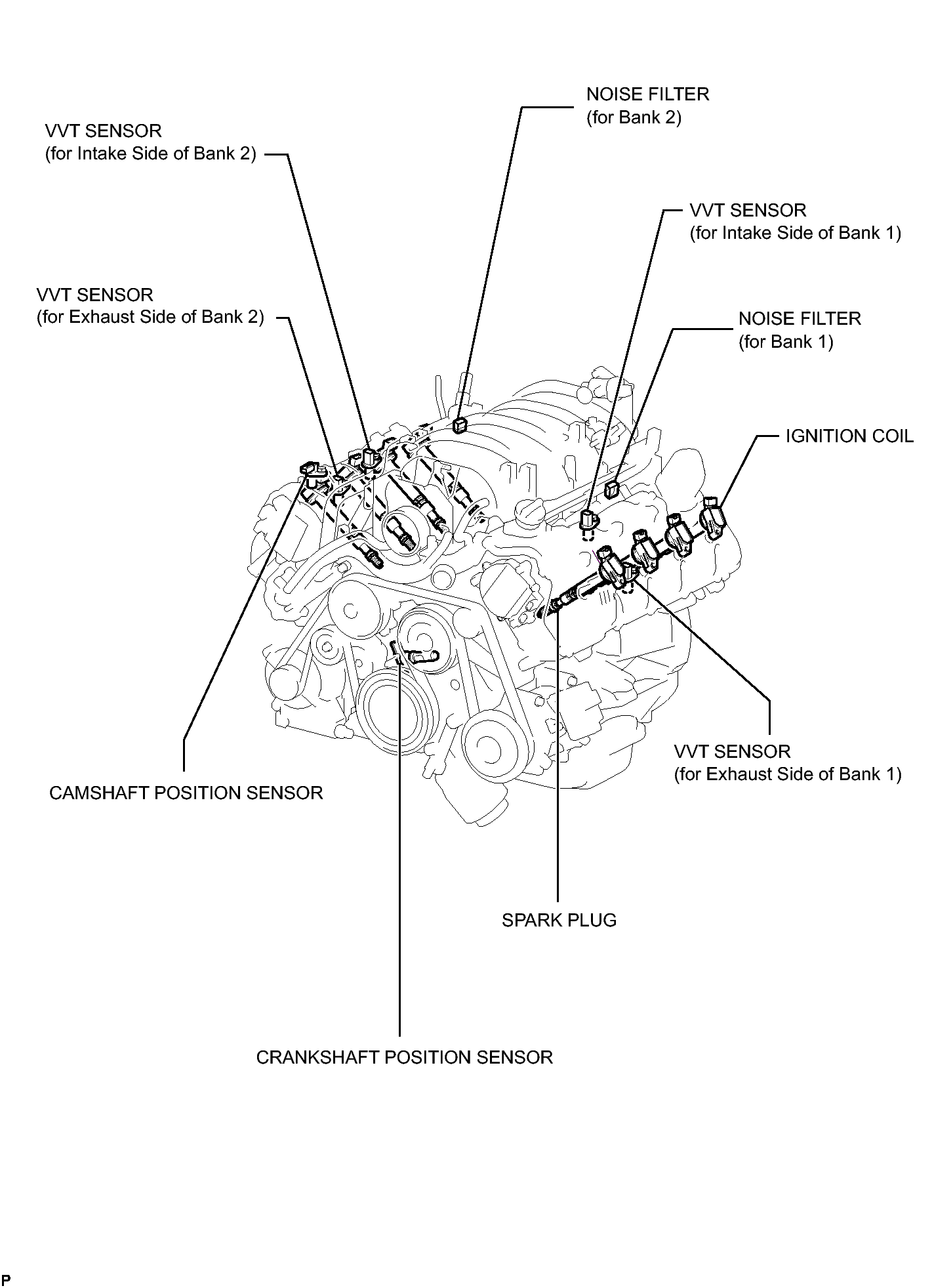

Fig 1: Identifying Ignition System Components Location (2 Of 2)
GTY265870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
