Front Window Deicer: Notes

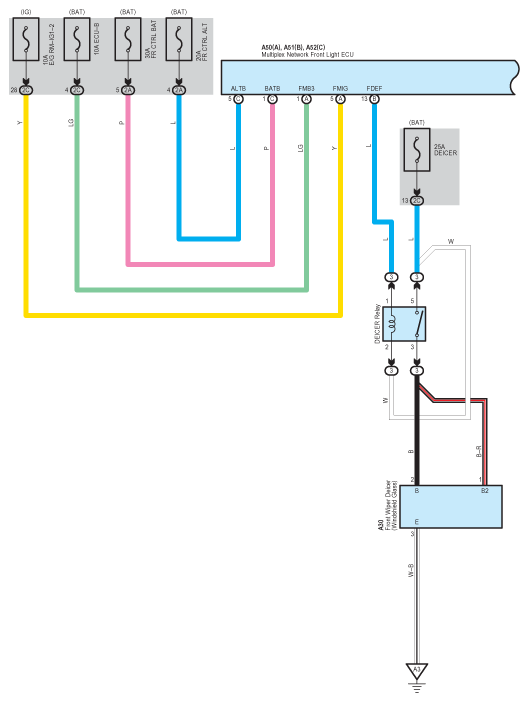

Fig 1: Front Window Deicer - Circuit Diagram (1 Of 2)
G07566266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

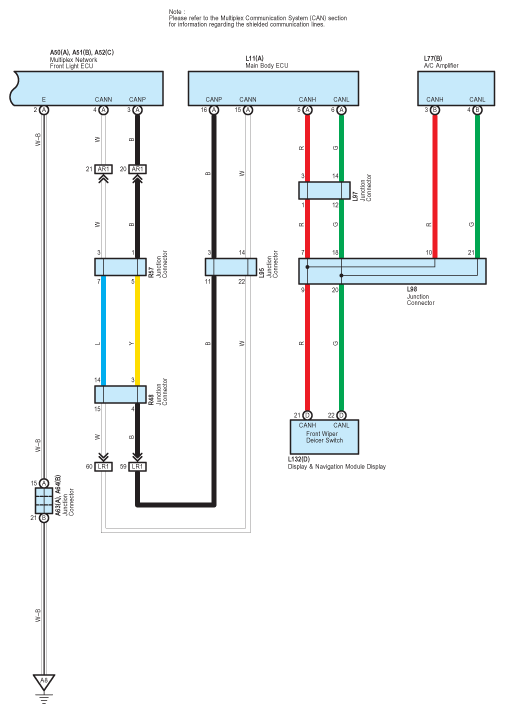

Fig 2: Front Window Deicer - Circuit Diagram (2 Of 2)
G07566267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
