Home >> Lexus >> 2011 >> LS 600hL >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System (Service Information) >> Fuel Pressure Sensor >> Components >> Illustration

Fuel Pressure Sensor: Components: Illustration

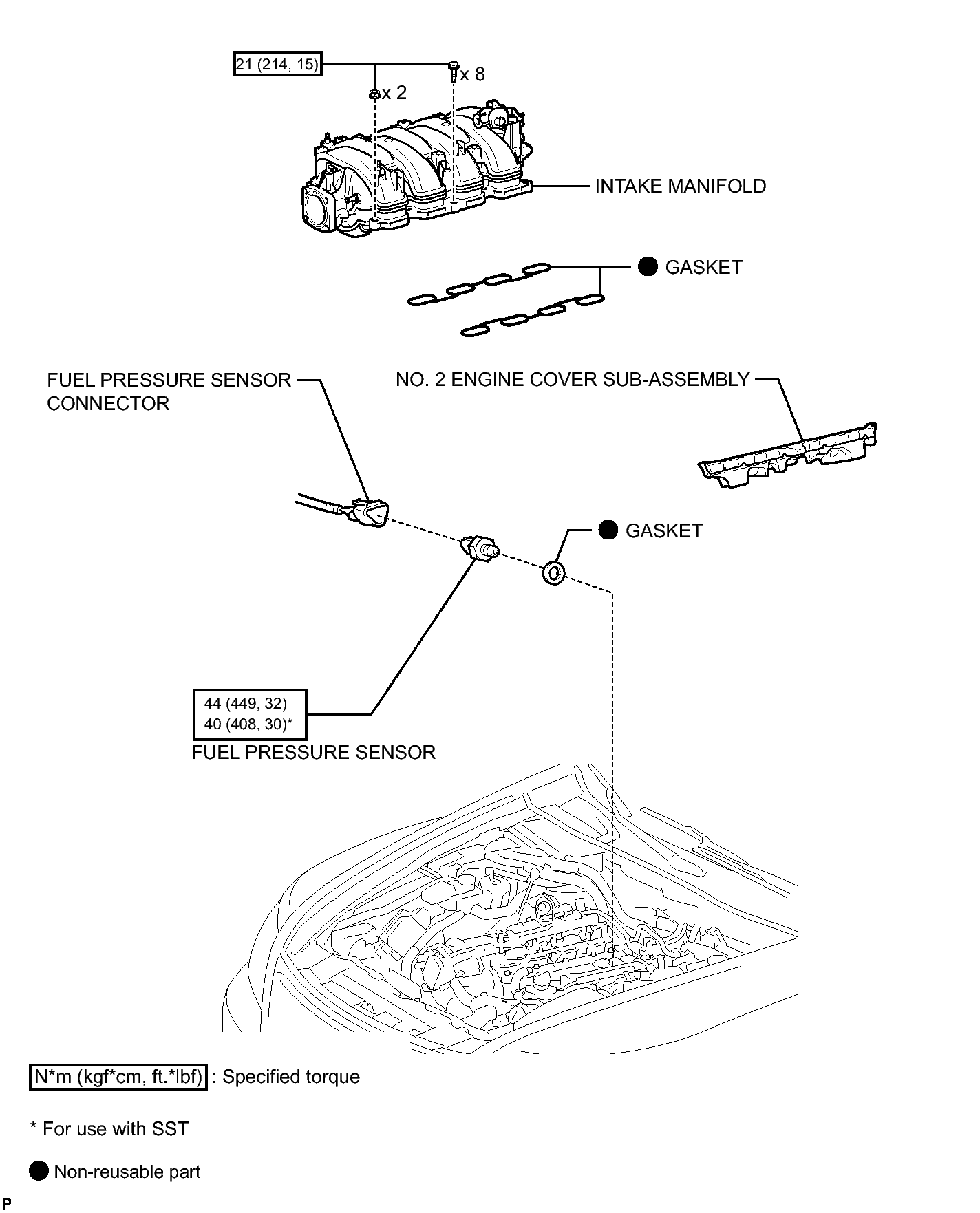

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications

GTY148252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
