Ground Point: Notes

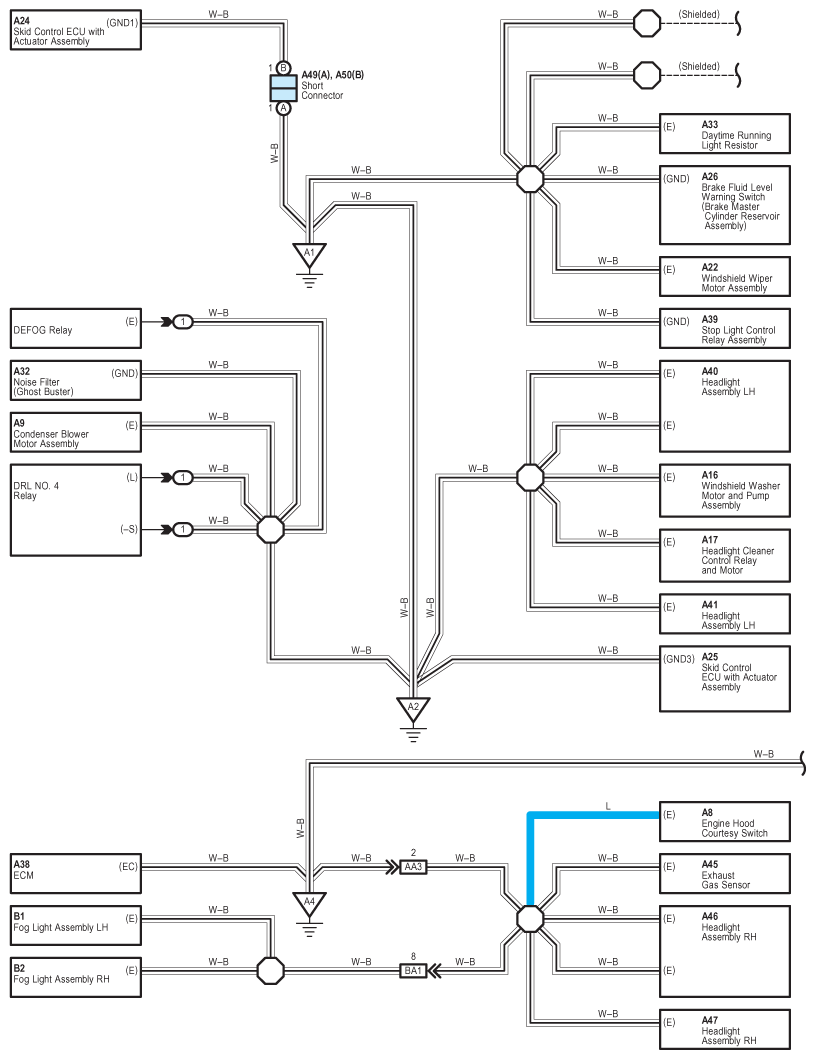

Fig 1: Ground Point - Circuit Diagram (1 Of 11)

G07575750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

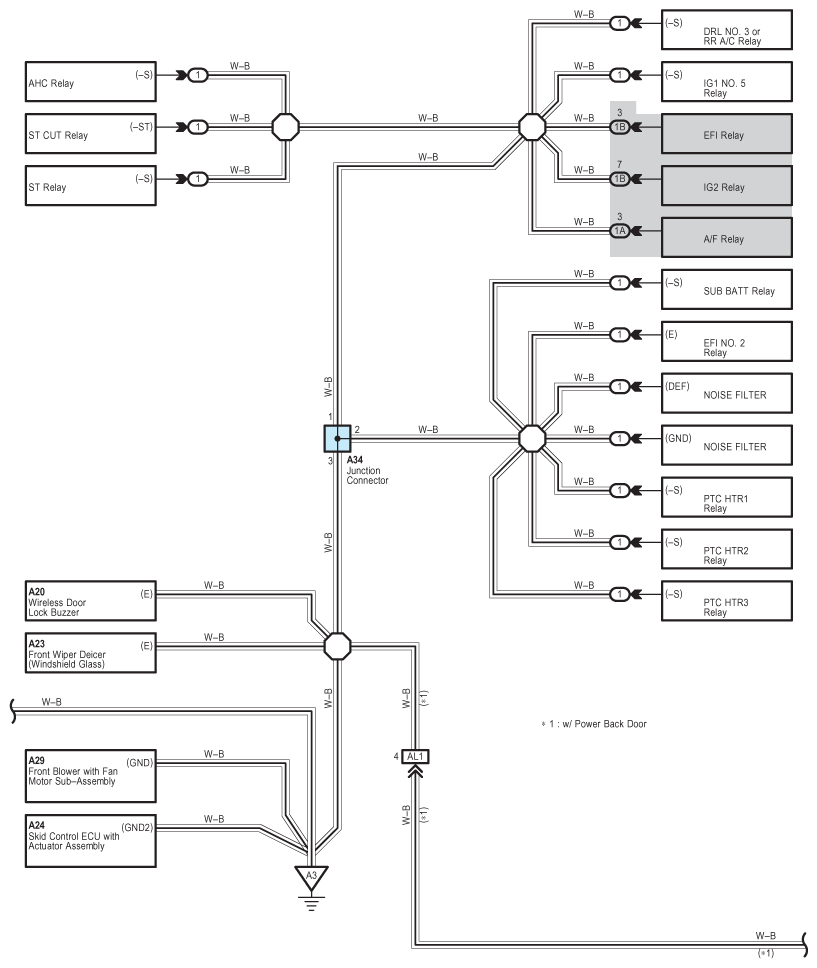

Fig 2: Ground Point - Circuit Diagram (2 Of 11)

G07575751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

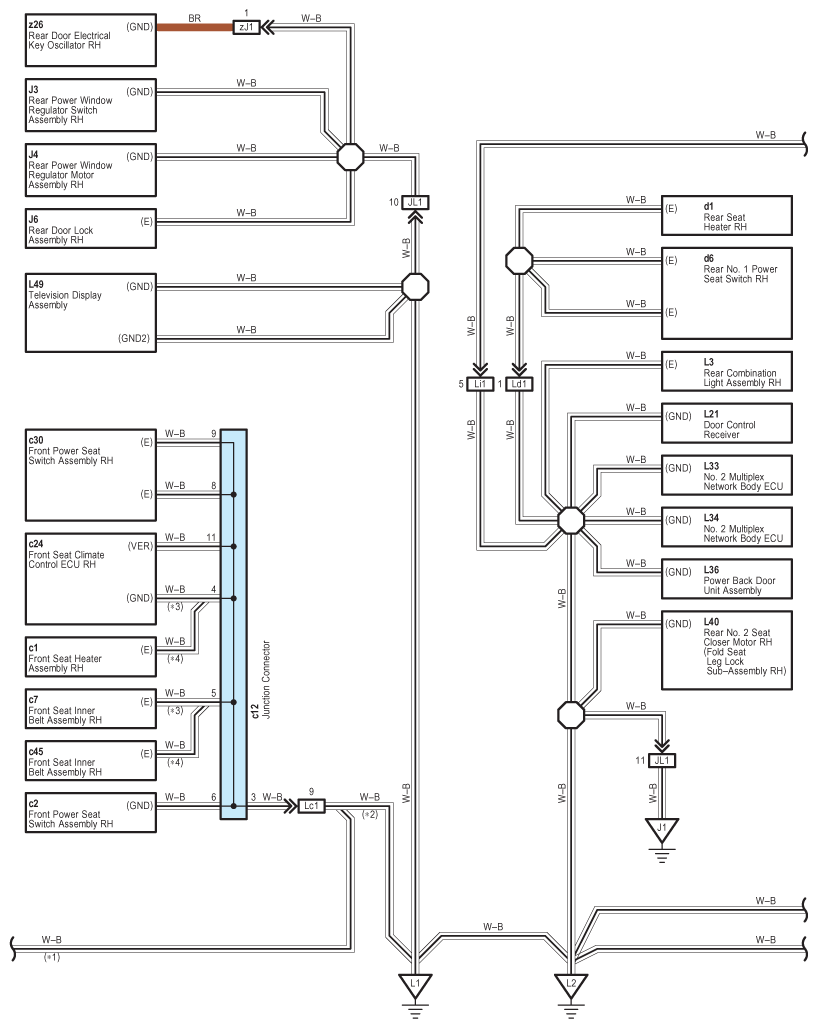

Fig 3: Ground Point - Circuit Diagram (3 Of 11)

G07575752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

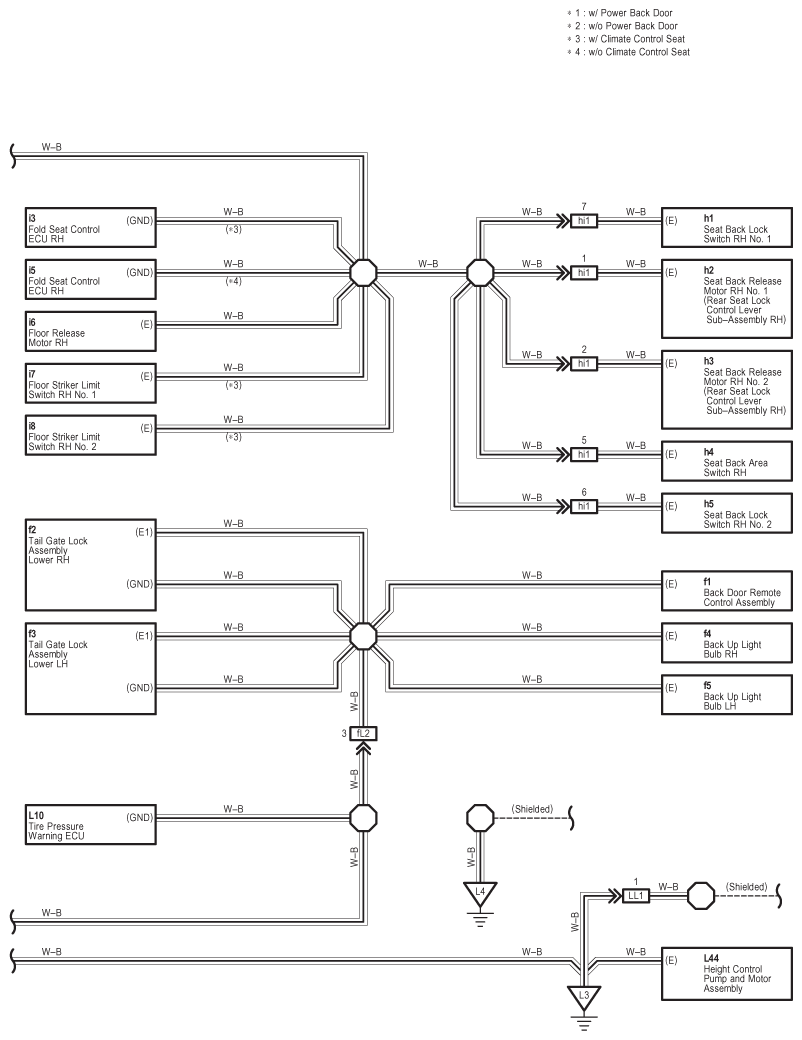

Fig 4: Ground Point - Circuit Diagram (4 Of 11)

G07575753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

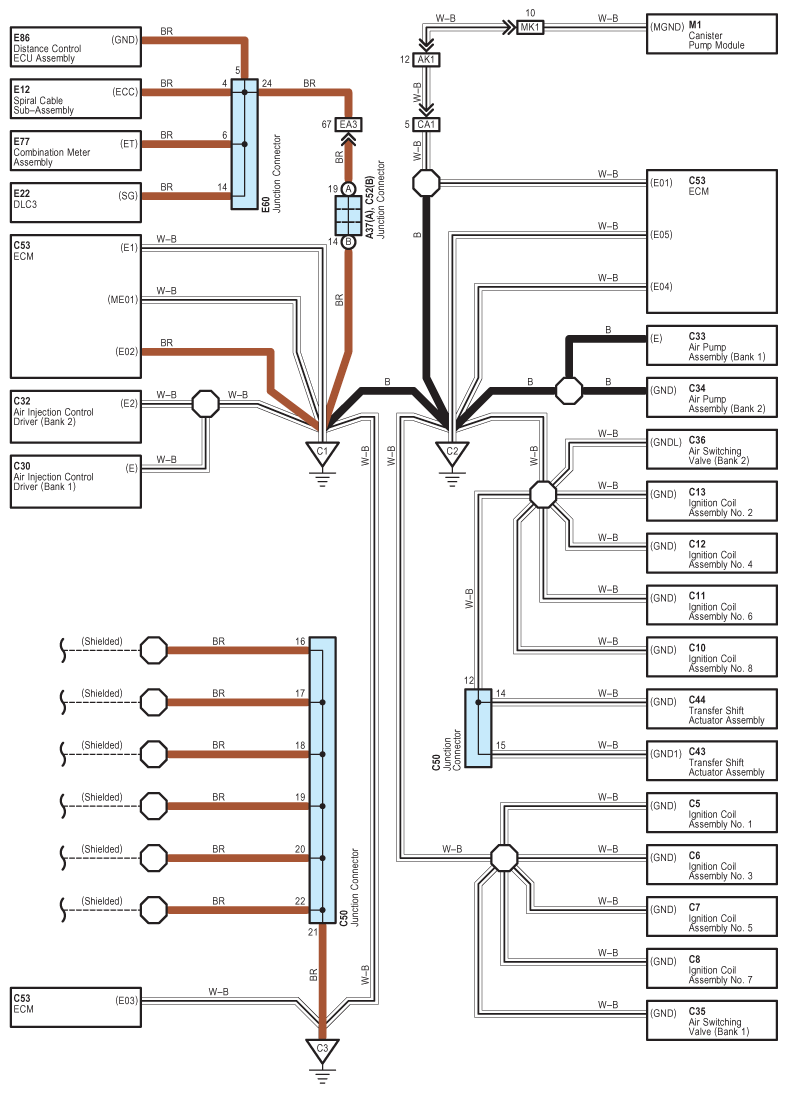

Fig 5: Ground Point - Circuit Diagram (5 Of 11)

G07575754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

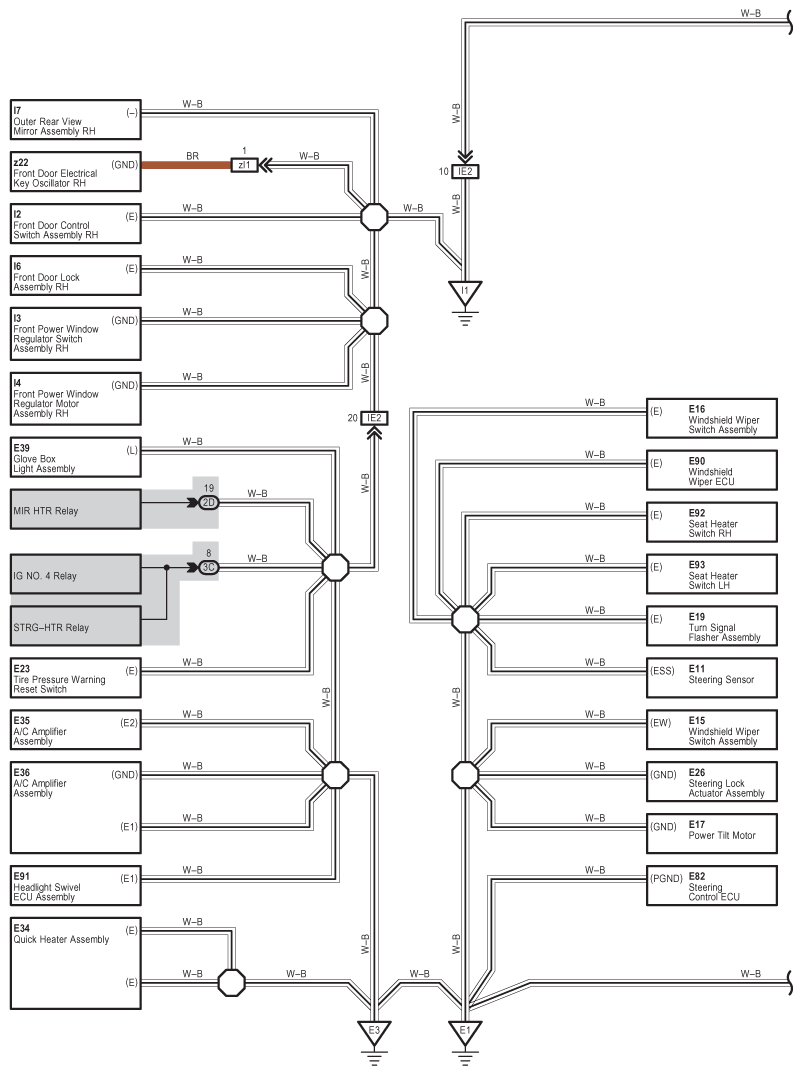

Fig 6: Ground Point - Circuit Diagram (6 Of 11)

G07575755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

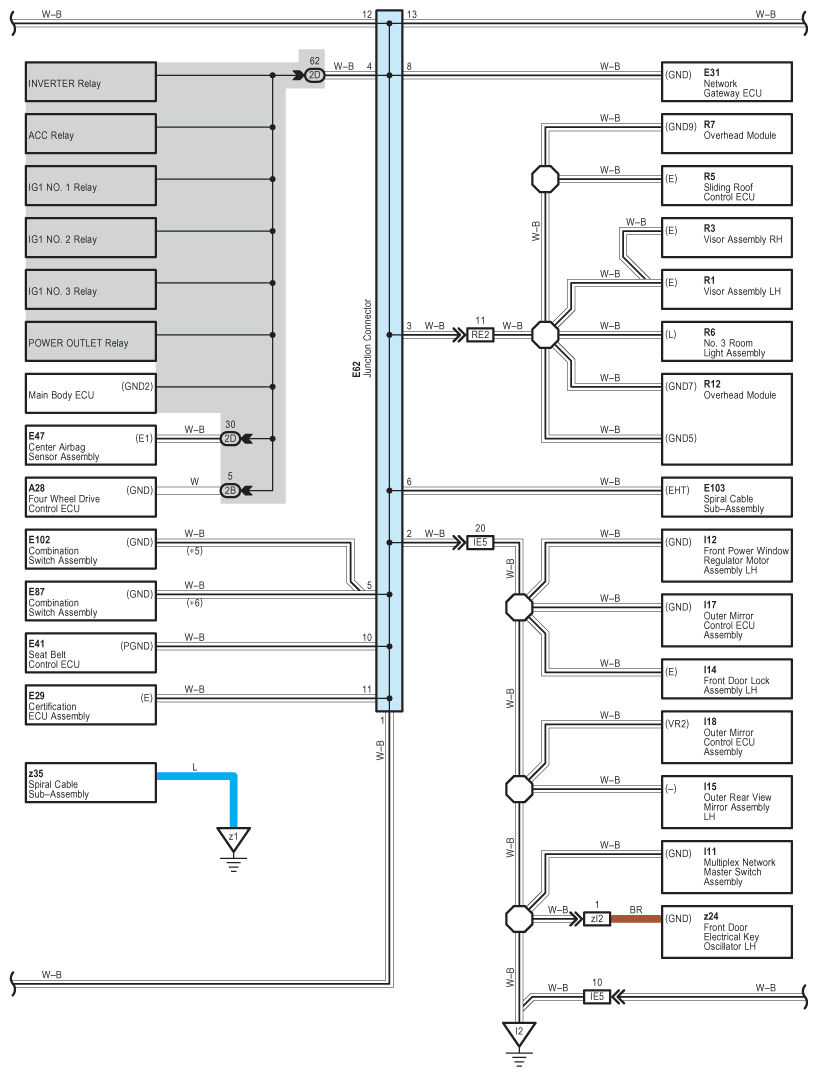

Fig 7: Ground Point - Circuit Diagram (7 Of 11)

G07575756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

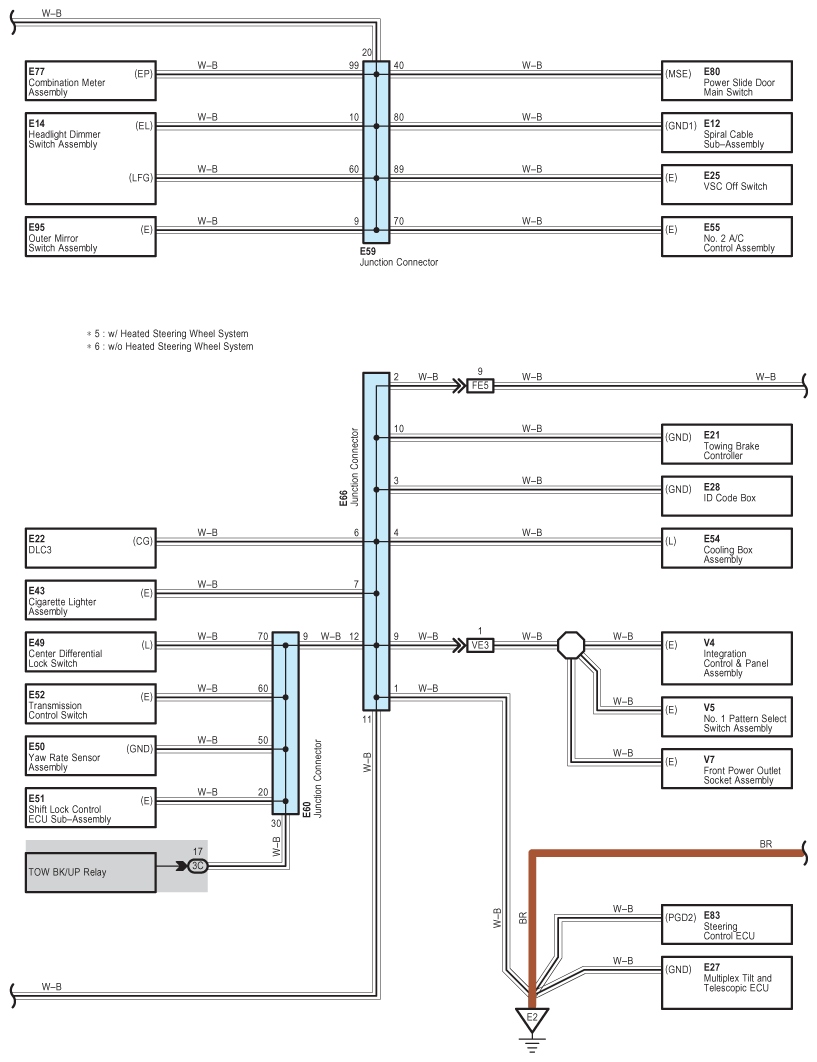

Fig 8: Ground Point - Circuit Diagram (8 Of 11)

G07575757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

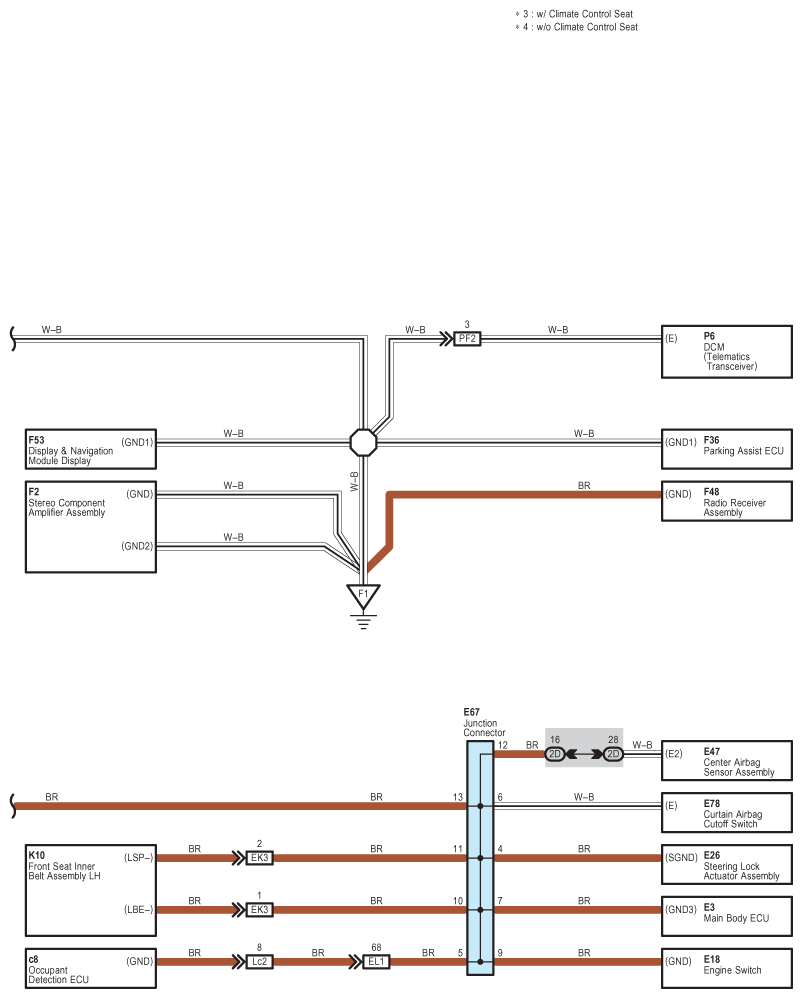

Fig 9: Ground Point - Circuit Diagram (9 Of 11)

G07575758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

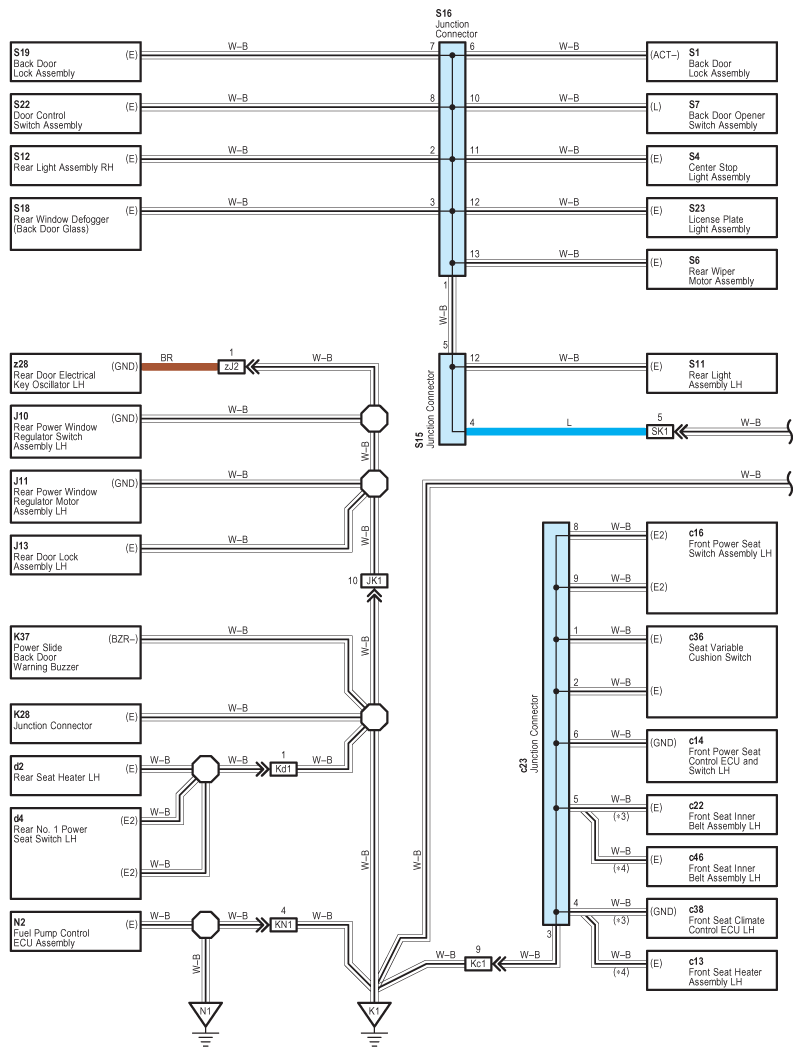

Fig 10: Ground Point - Circuit Diagram (10 Of 11)

G07575759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

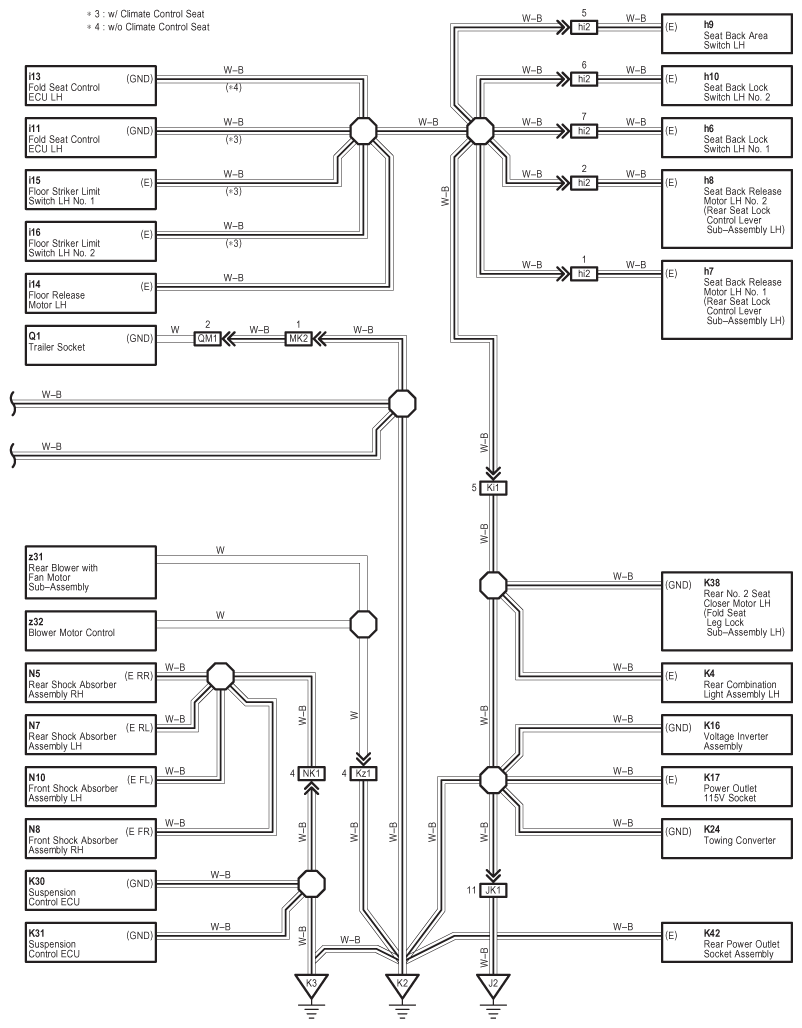

Fig 11: Ground Point - Circuit Diagram (11 Of 11)

G07575760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
