4WD Control Switch: Components: Illustration

Fig 1: Identifying 4WD Control Switch Replacement Components (1 Of 2)
GTY149216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

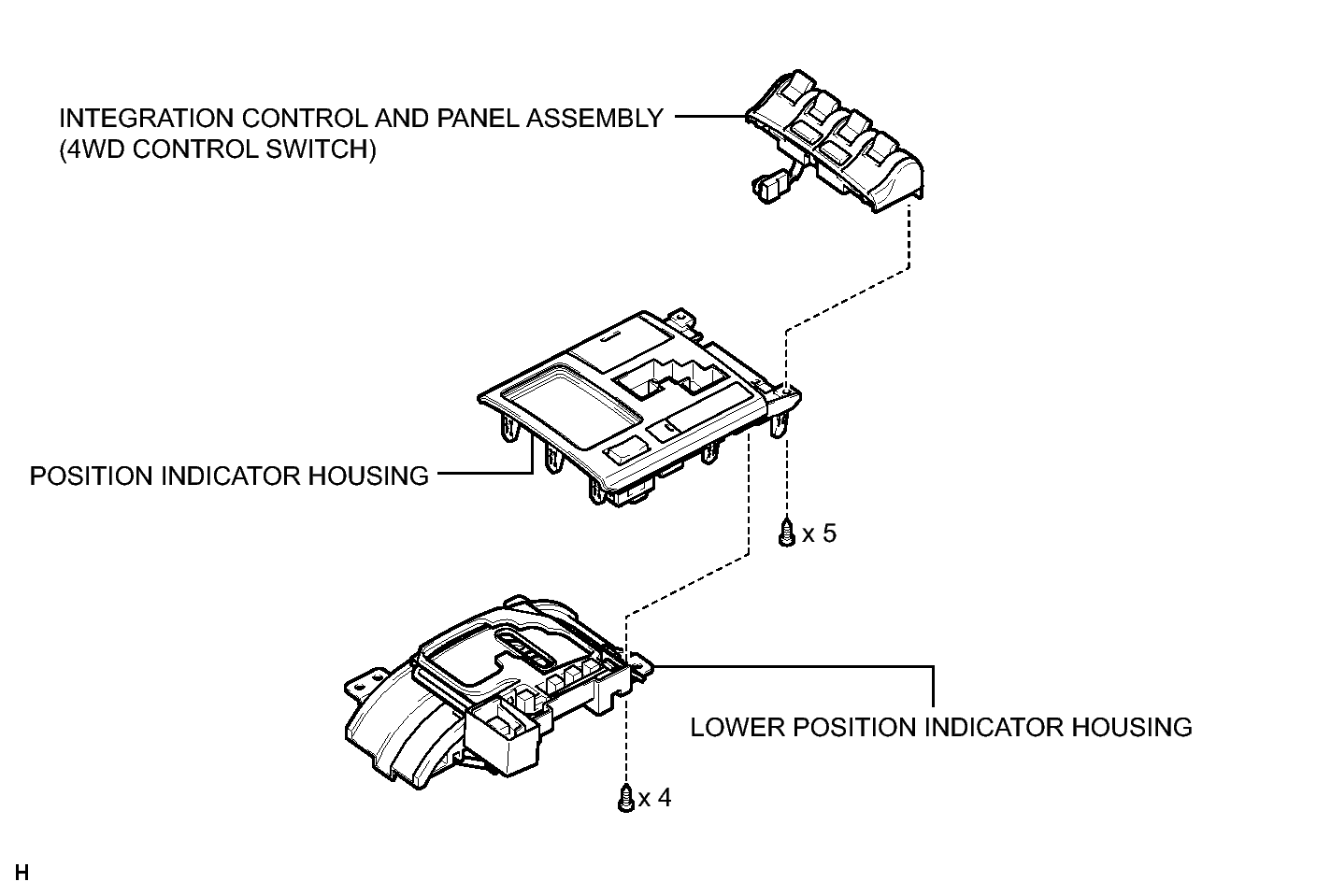

Fig 1: Identifying 4WD Control Switch Replacement Components (2 Of 2)
GTY108862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
