Multiplex Communication System (LIN): Notes

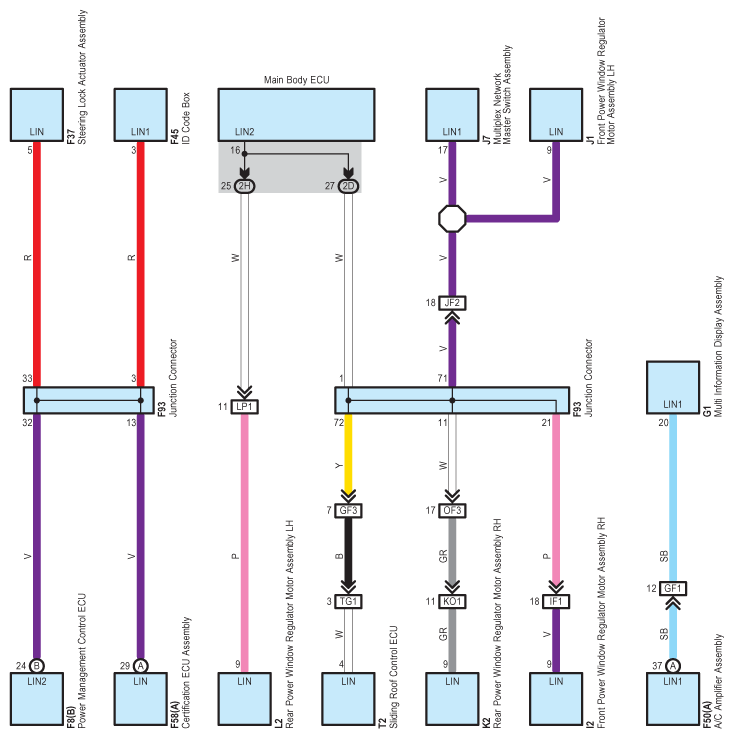

Fig 1: Multiplex Communication System (LIN) - Circuit Diagram

G07576052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
