Home >> Lexus >> 2011 >> RX 350 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Outlet >> Notes

Power Outlet: Notes

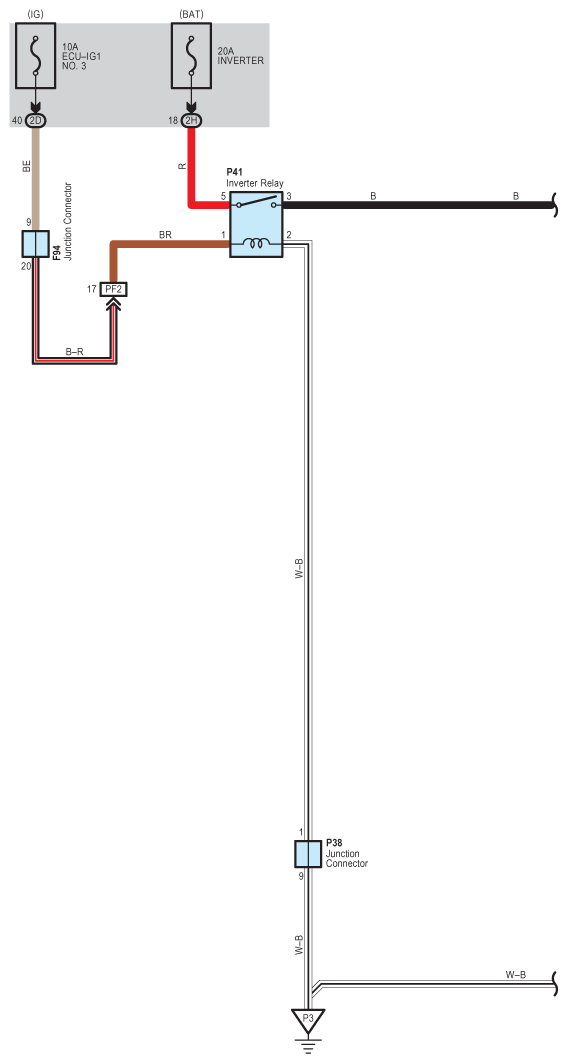

Fig 1: Power Outlet - Circuit Diagram (1 Of 2)
G07576259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

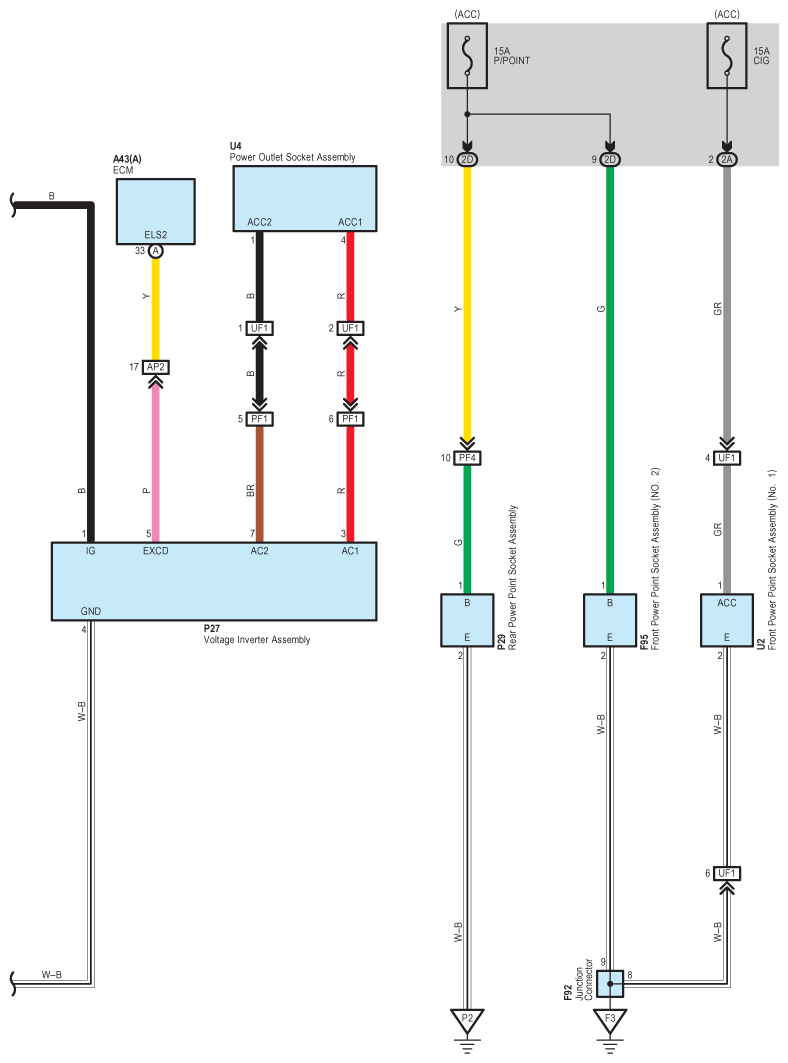

Fig 2: Power Outlet - Circuit Diagram (2 Of 2)
G07576260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
