Home >> Lexus >> 2011 >> RX 350 FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System [2GR-FE] (Service Information) >> Knock Sensor >> Components >> Illustration

Knock Sensor: Components: Illustration

Fig 1: Identifying Knock Sensor Replacement Components (1 of 2) With Torque Specifications
GTY277013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

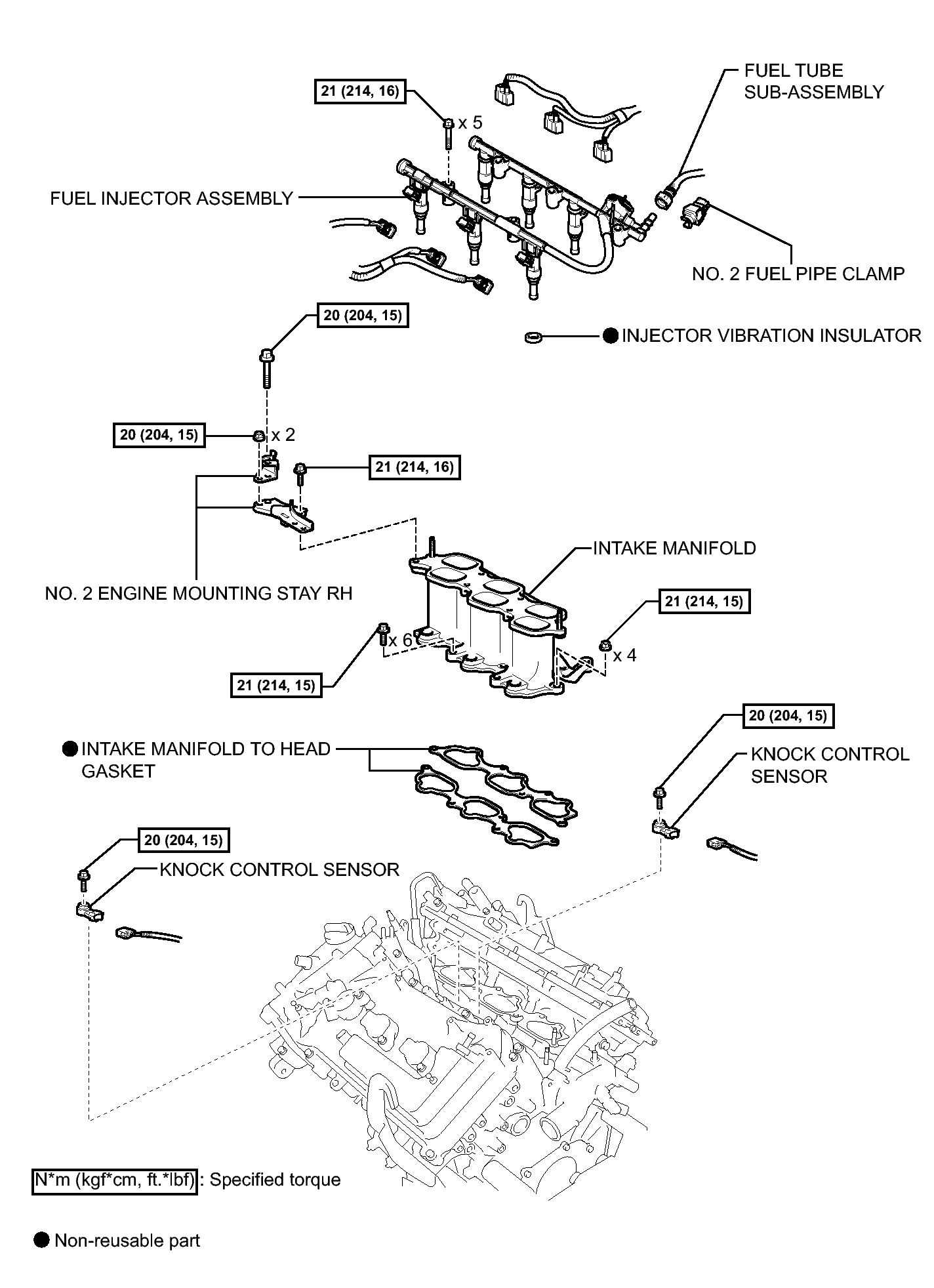

Fig 1: Identifying Knock Sensor Replacement Components (2 of 2) With Torque Specifications
GTY255278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
