Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 4)
GTY257835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 4)
GTY257826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (3 Of 4)
GTY287298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

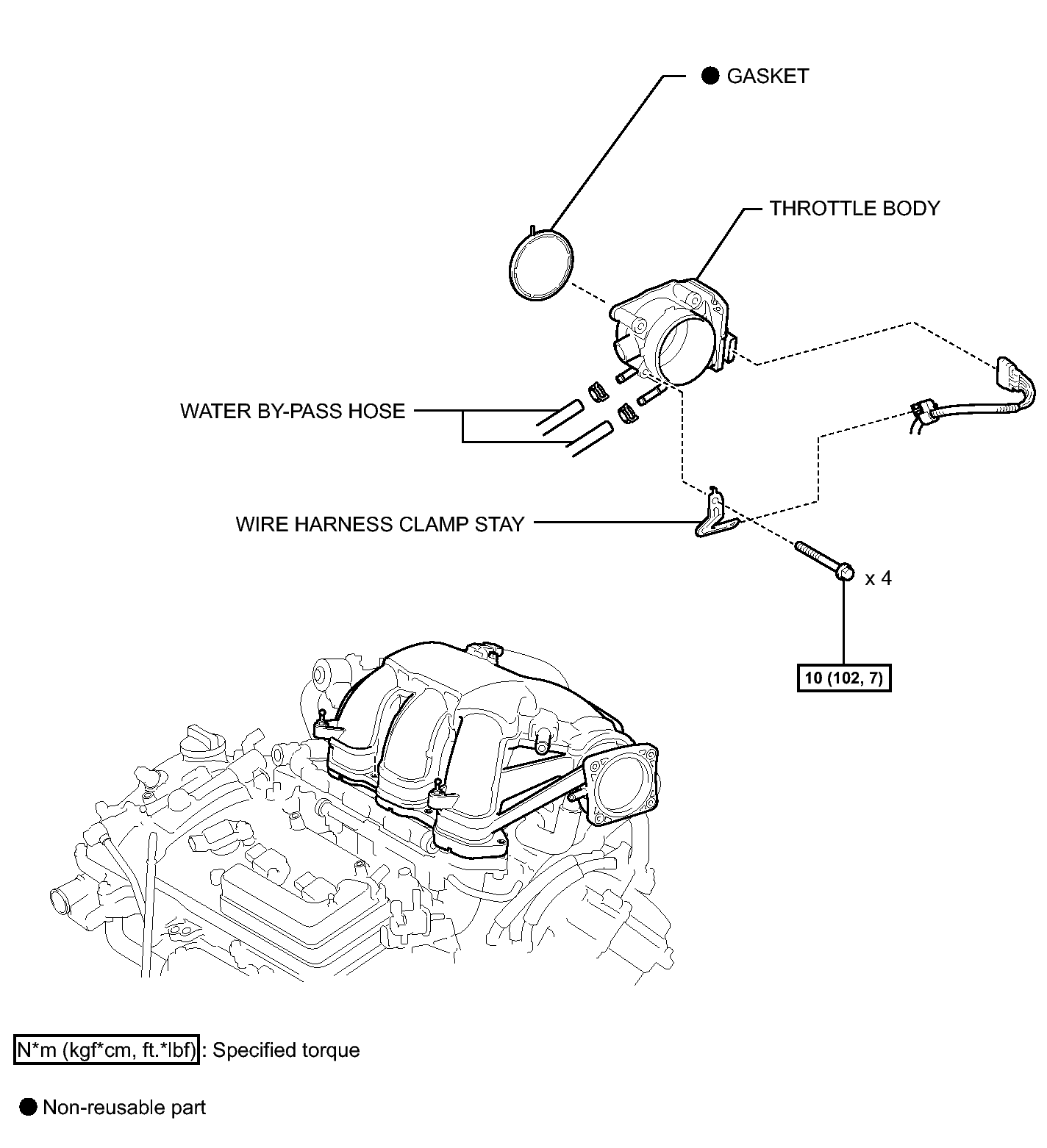

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (4 Of 4)
GTY258844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
