Back-Up Light: Notes

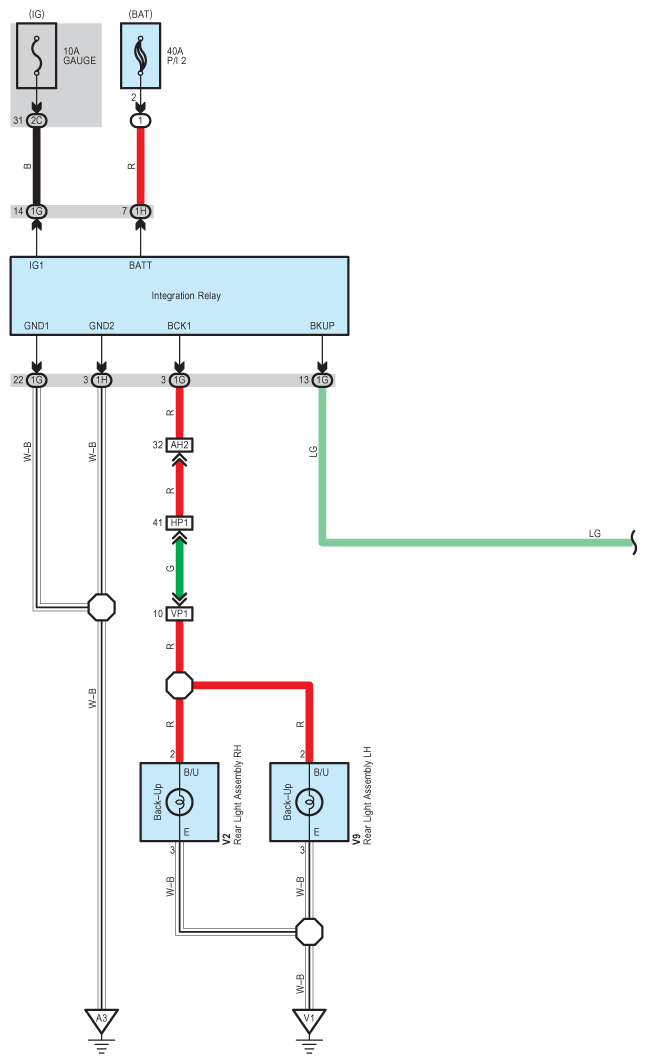

Fig 1: Back-Up Light - Wiring Diagram (1 Of 2)
G08934526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back-Up Light - Wiring Diagram (2 Of 2)
G08934527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
