Garage Door Opener: Notes

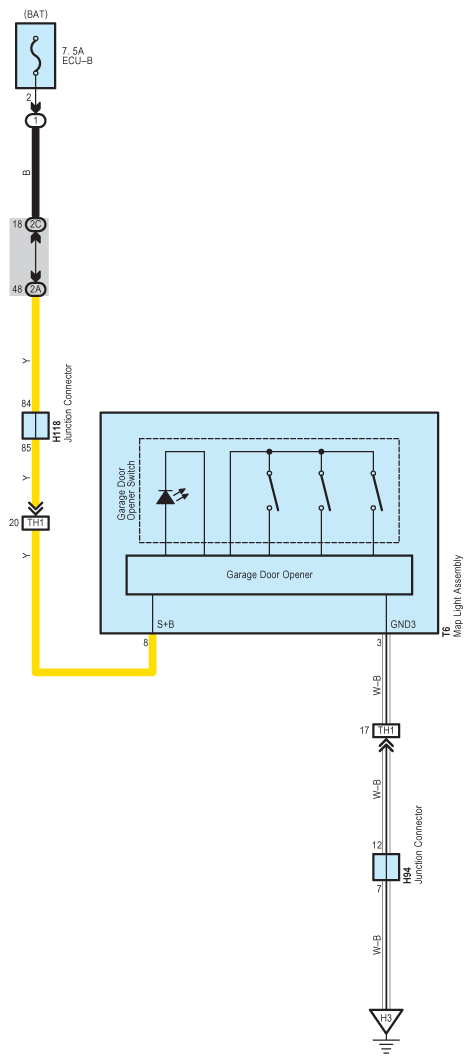

Fig 1: Garage Door Opener - Circuit Diagram
G08934661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
