Multiplex Communication System (AVC-LAN)
>>
Notes
Multiplex Communication System (AVC-LAN): Notes

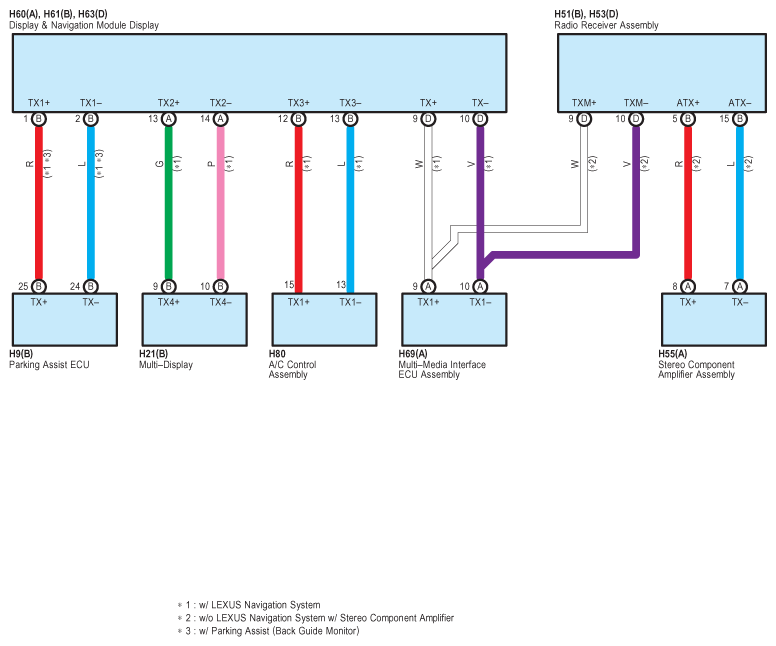

Fig 1: Multiplex Communication System (Avc-Lan) - Circuit Diagram
