Power Source: Notes

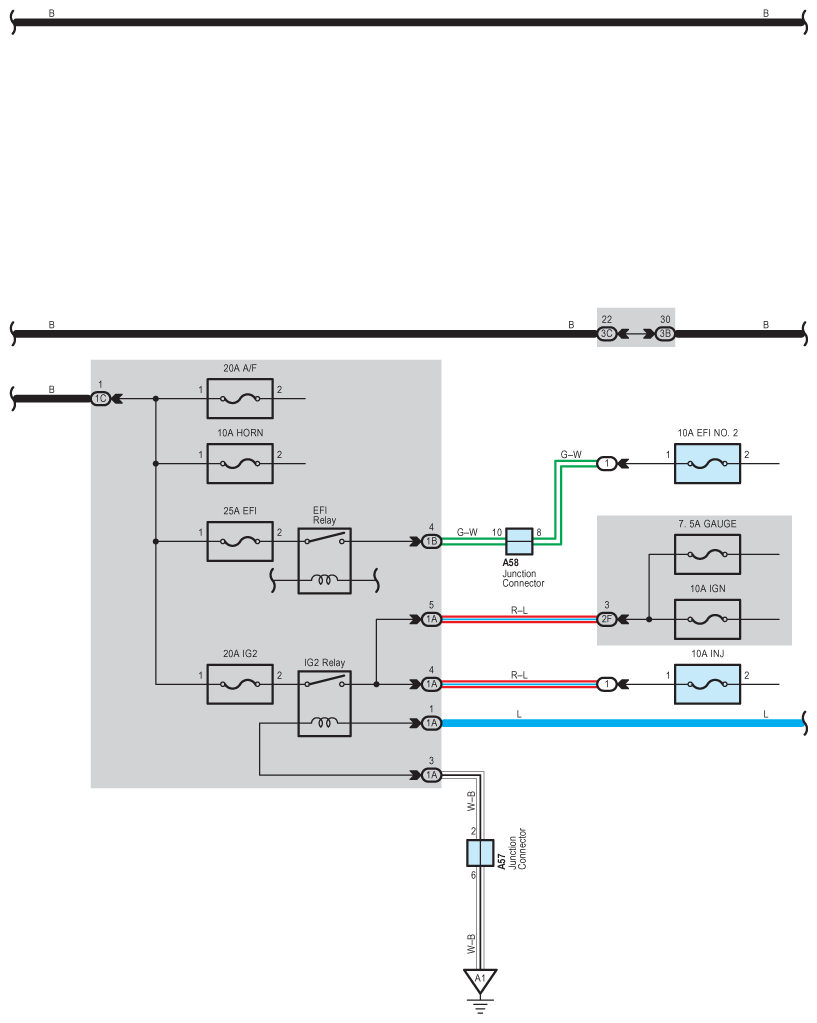

Fig 1: Power Source - Wiring Diagram (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

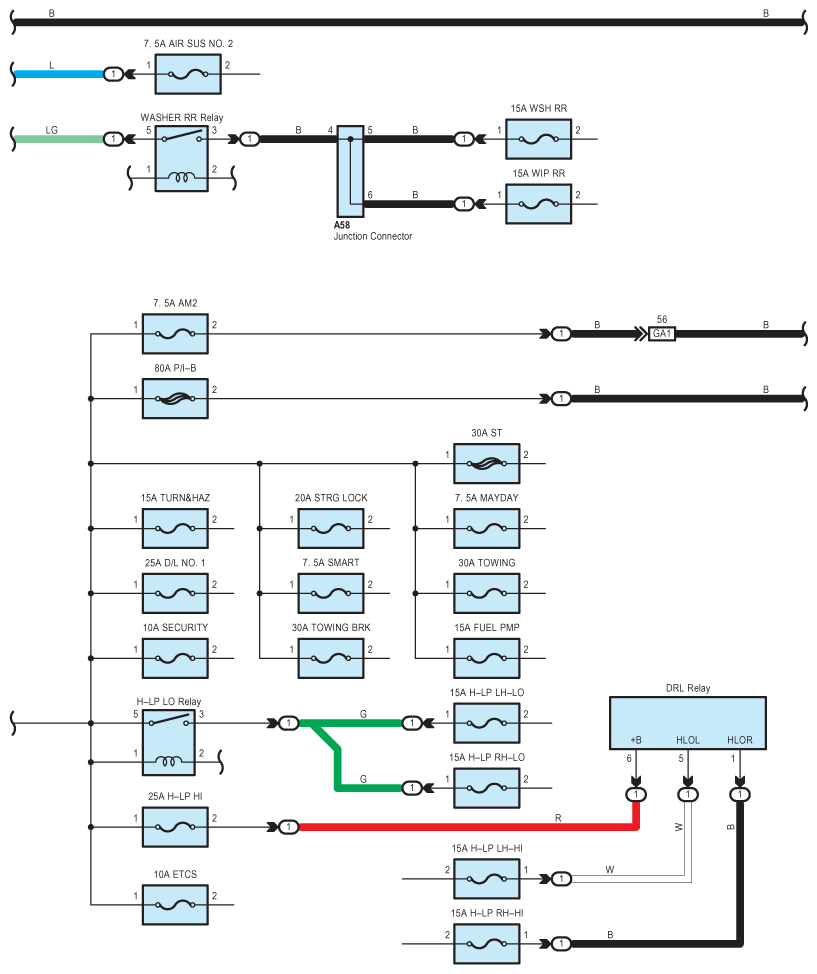

Fig 2: Power Source - Wiring Diagram (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

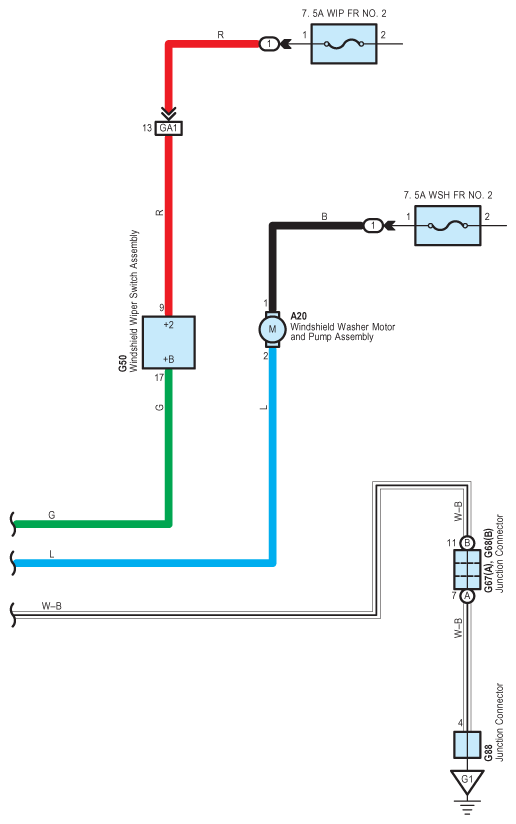

Fig 3: Power Source - Wiring Diagram (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

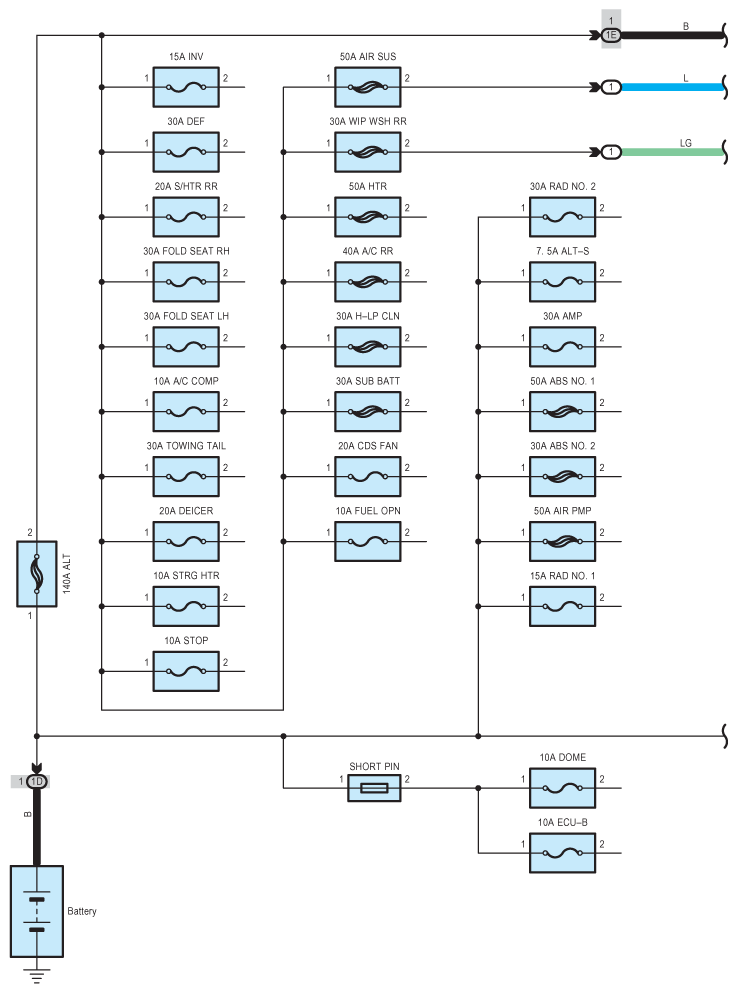

Fig 4: Power Source - Wiring Diagram (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

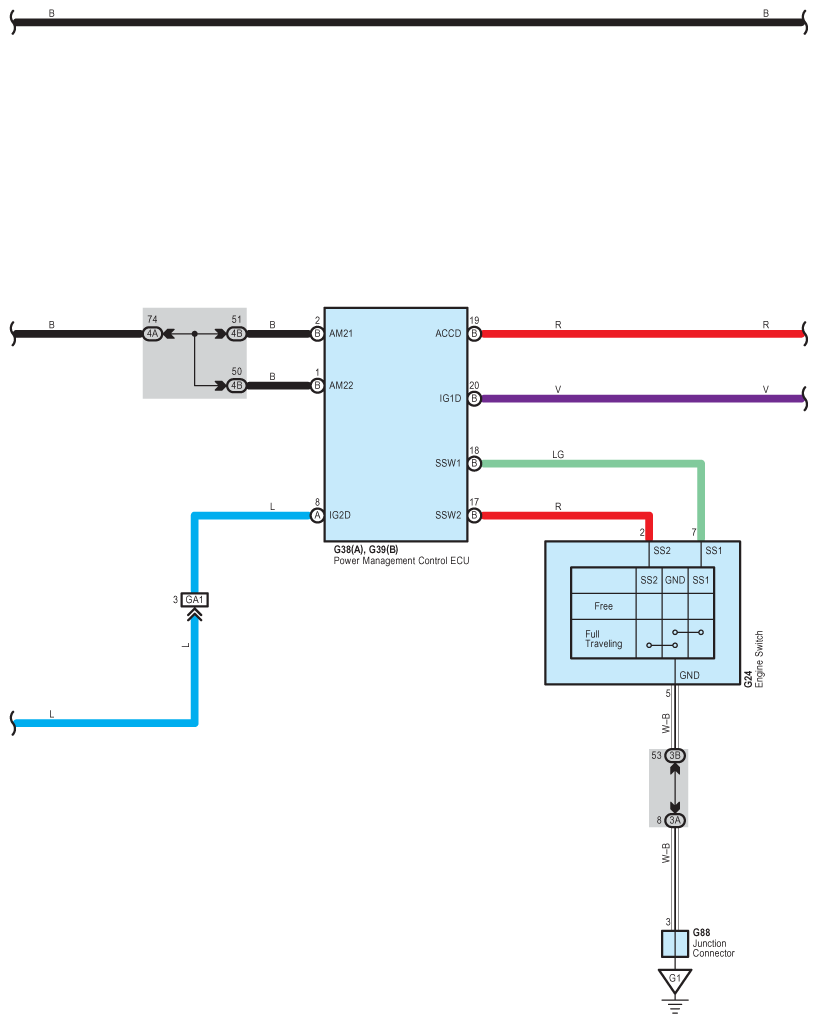

Fig 5: Power Source - Wiring Diagram (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

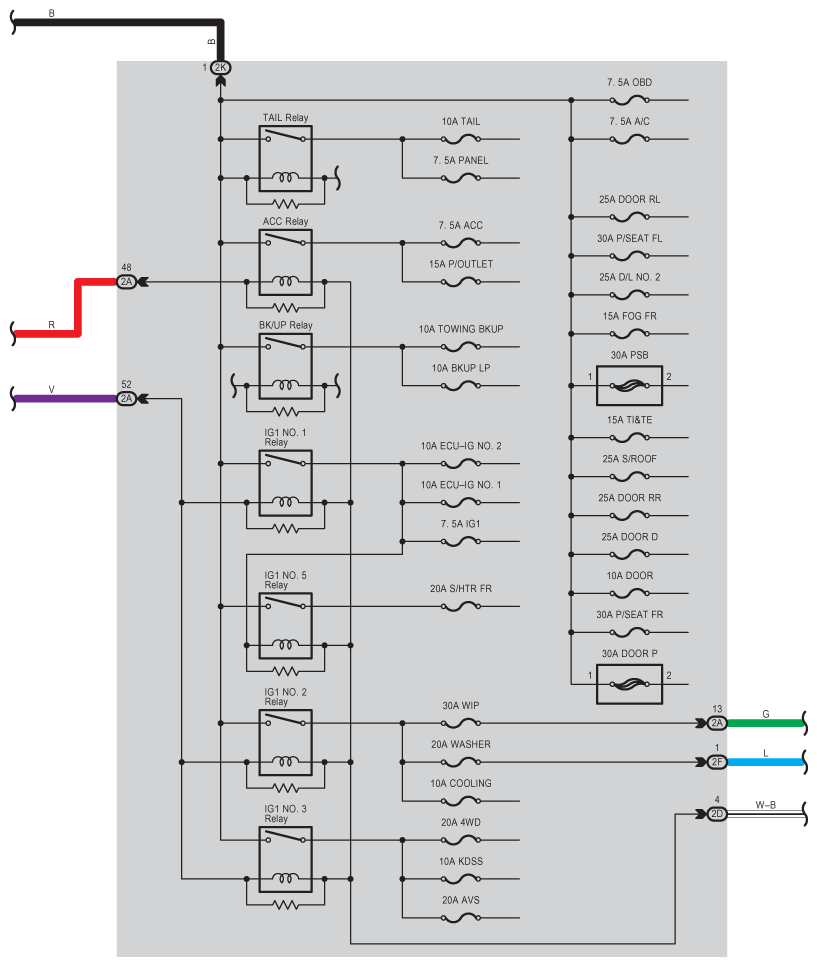

Fig 6: Power Source - Wiring Diagram (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
