Home >> Lexus >> 2012 >> HS 250h >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Stop Light >> Notes

Stop Light: Notes

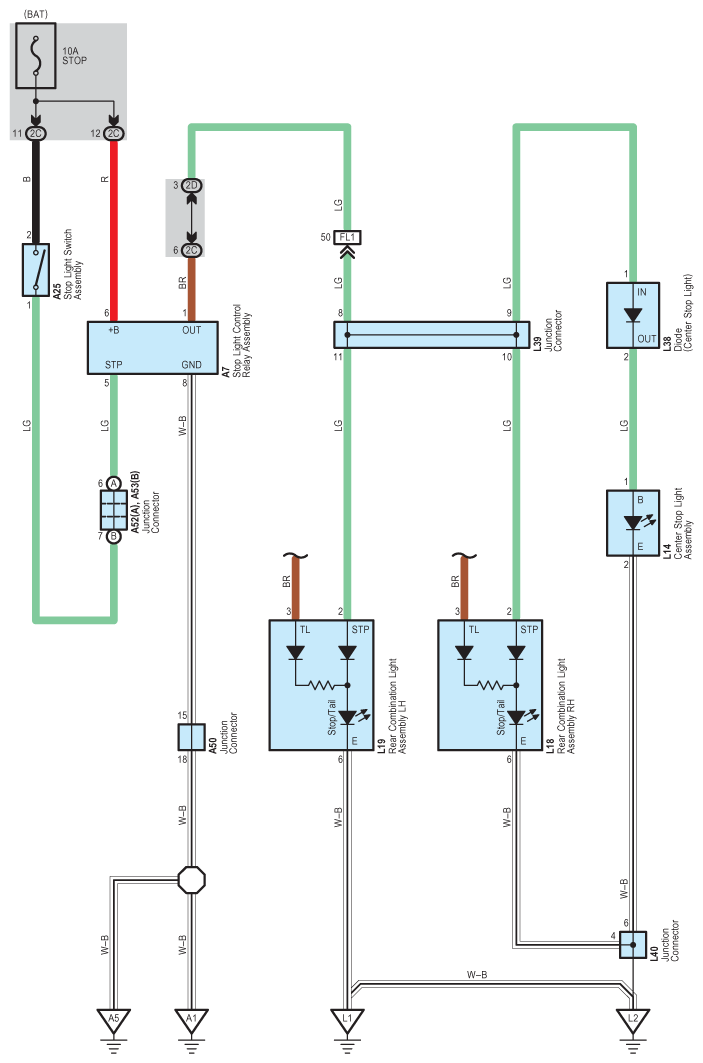

Fig 1: Stop Light - Circuit Diagram
G08911455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
