Cold Start Injector: Components: Illustration

Fig 1: Identifying Cold Start Injector Replacement Components (1 Of 2)
GTY350630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

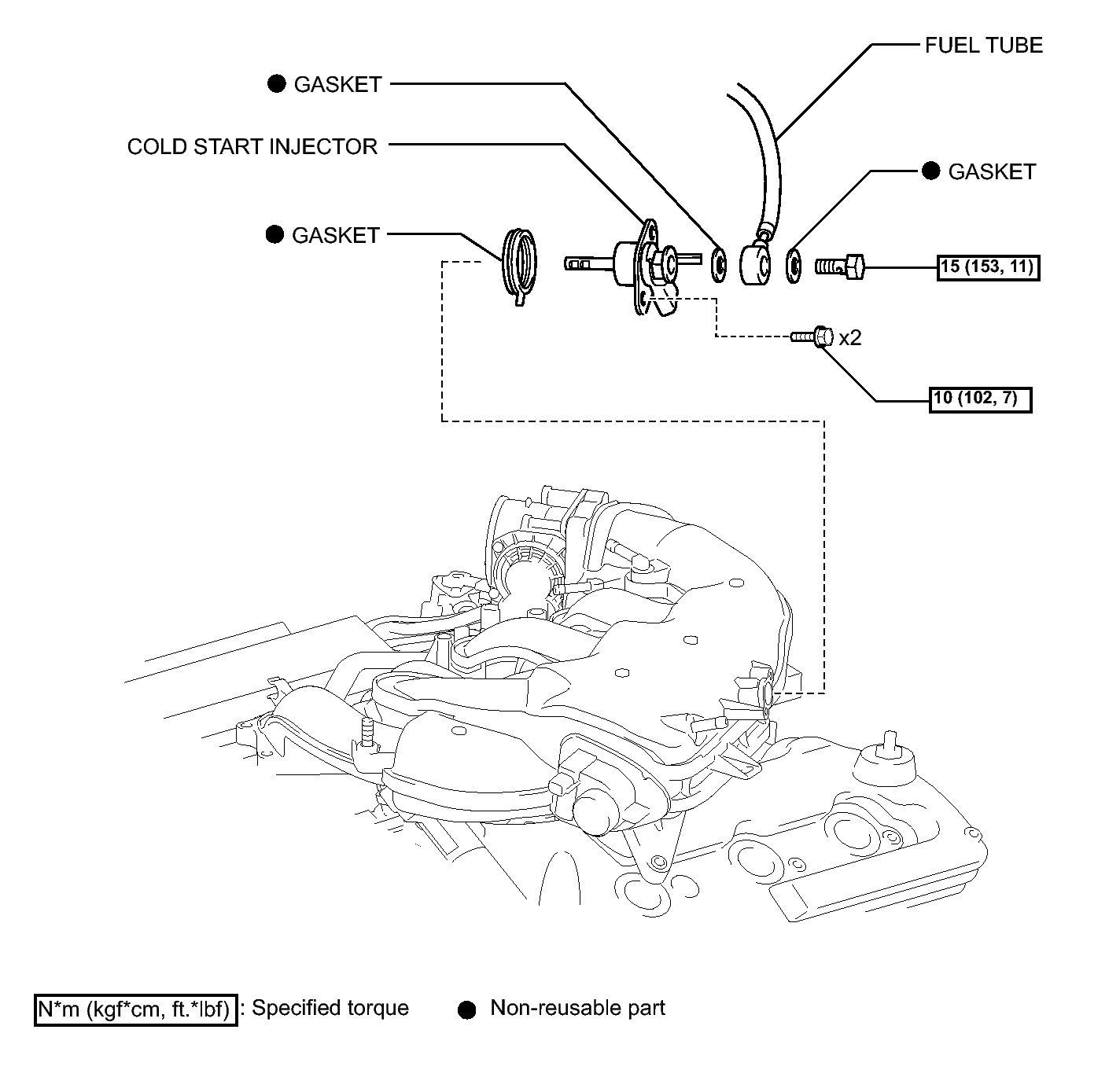

Fig 1: Identifying Cold Start Injector Replacement Components With Torque Specifications (2 Of 2)
GTY146280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
