Rear Sunshade: Notes

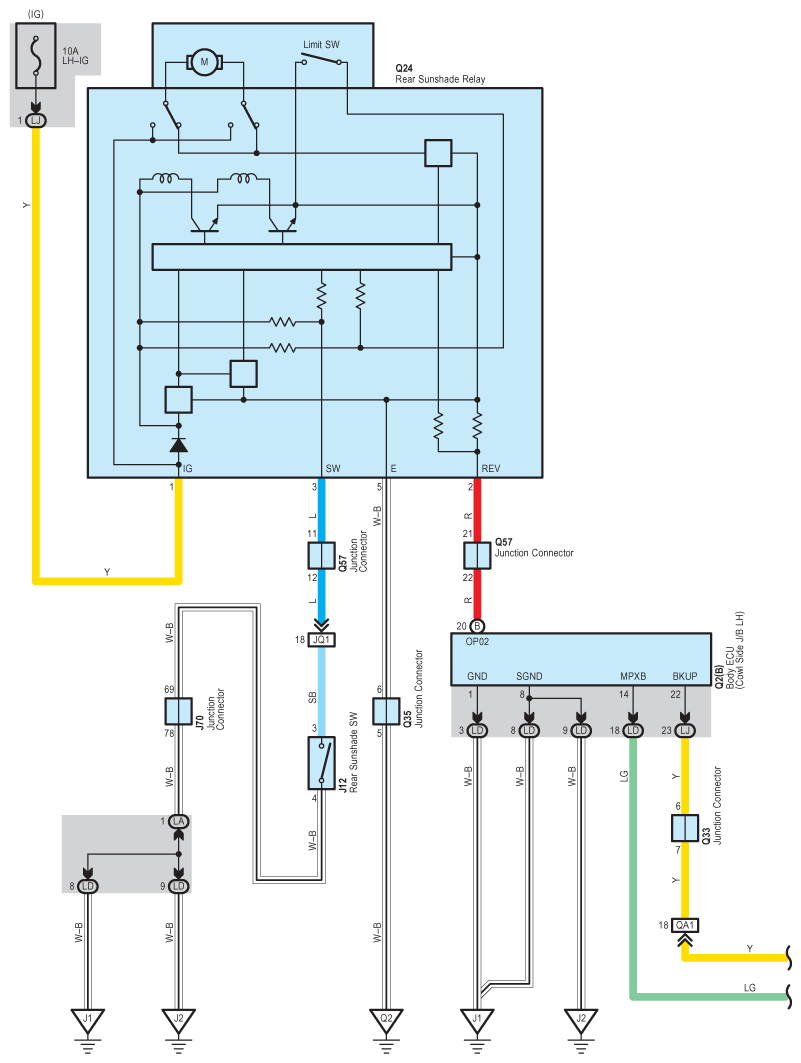

Fig 1: Rear Sunshade - Wiring Diagram (1 Of 2)
G08935603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Sunshade - Wiring Diagram (2 Of 2)
G08935604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
