Home >> Lexus >> 2012 >> IS 350 Base, RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight Cleaner >> Notes

Headlight Cleaner: Notes

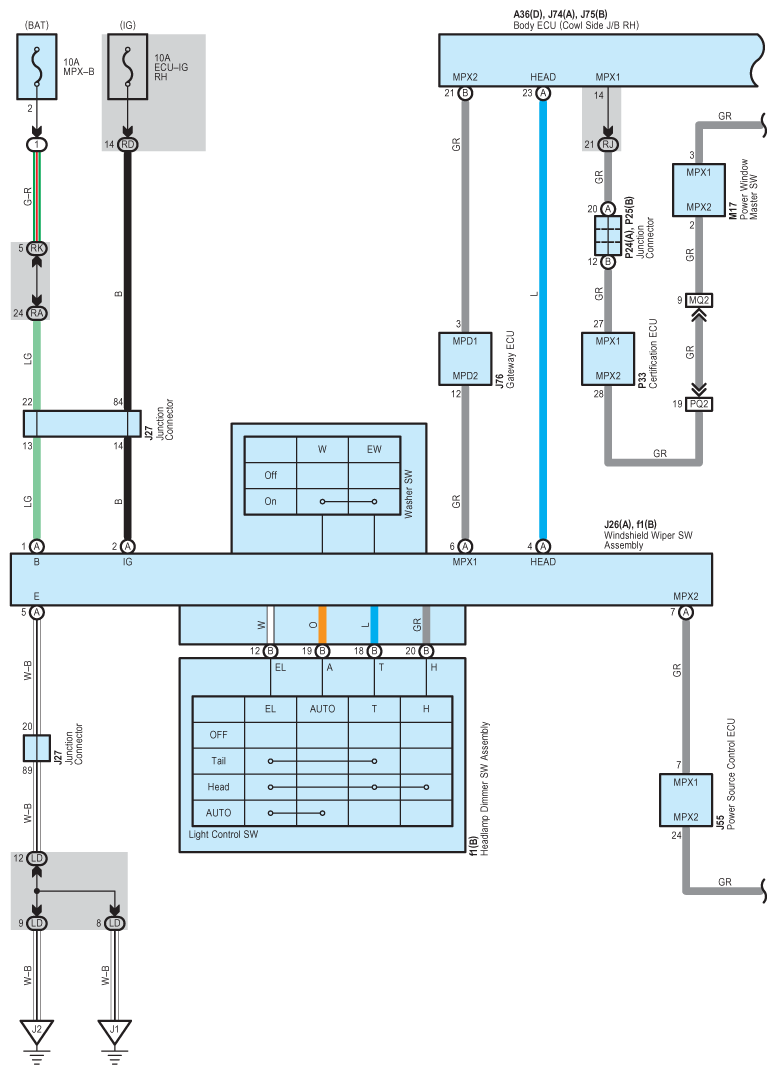

Fig 1: Headlight Cleaner - Wiring Diagram (1 Of 2)
G08935494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

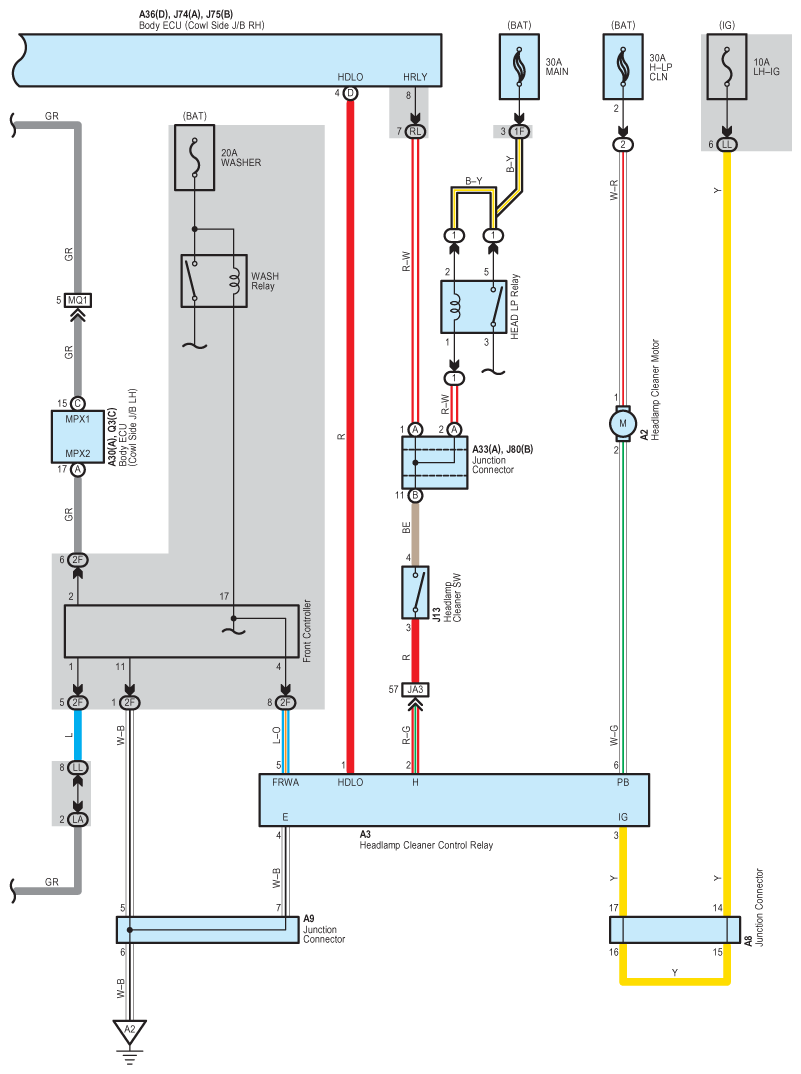

Fig 2: Headlight Cleaner - Wiring Diagram (2 Of 2)
G08935495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
