Home >> Lexus >> 2012 >> IS 350C >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ignition (2GR-FSE) >> Notes

Ignition (2GR-FSE): Notes

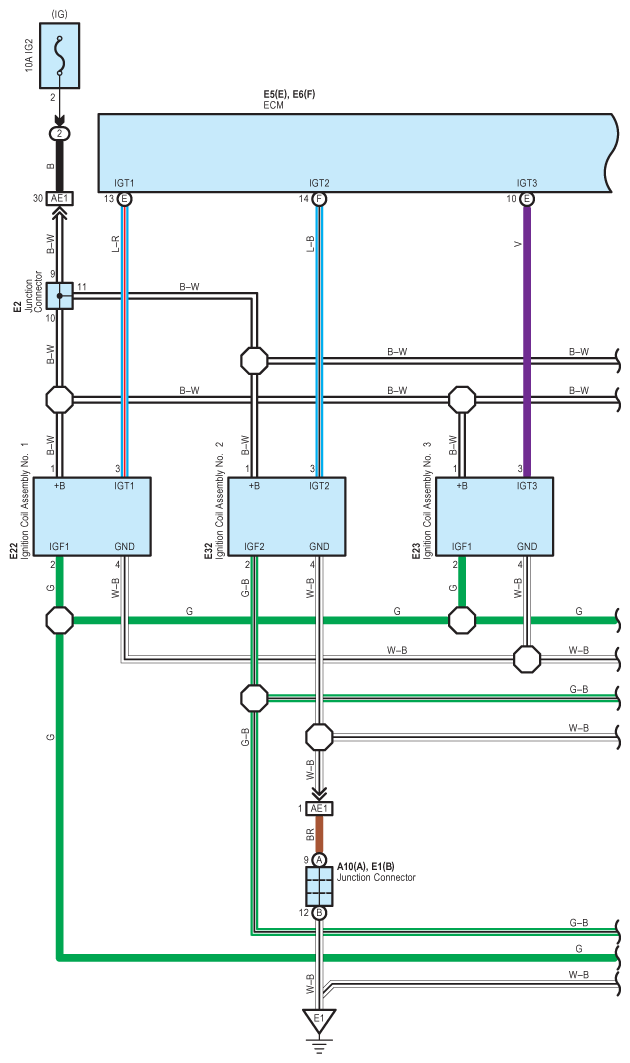

Fig 1: Ignition (2GR-FSE) - Wiring Diagram (1 Of 2)
G08938579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition (2GR-FSE) - Wiring Diagram (2 Of 2)
G08938580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
