Home >> Lexus >> 2012 >> IS 350C >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2GR-FSE) (Service Information) >> Camshaft Position Sensor >> Components >> Illustration

Camshaft Position Sensor: Components: Illustration

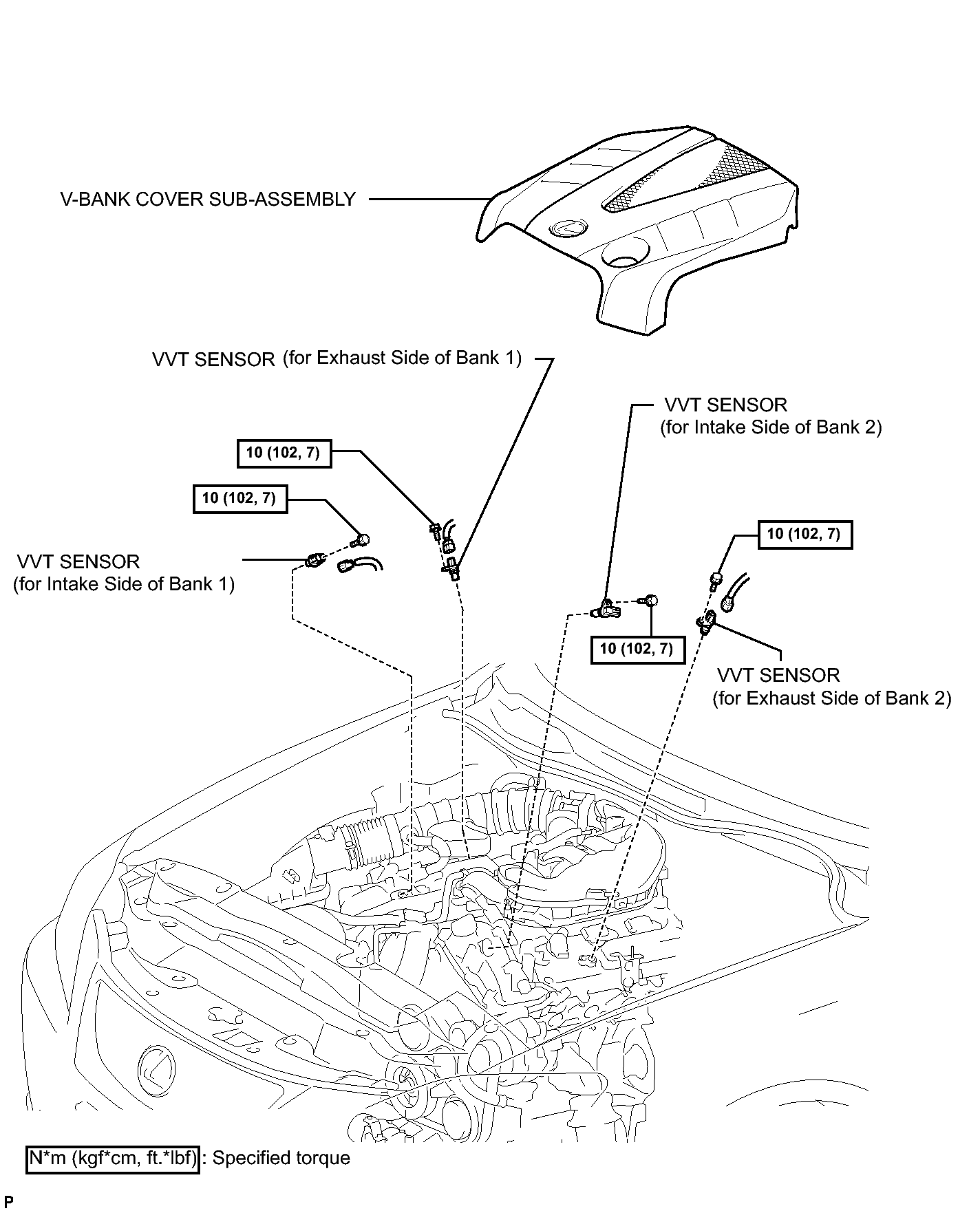

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications

GTY281473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
