Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer to REMOVAL .
  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.
    2. Remove the engine coolant temperature sensor.

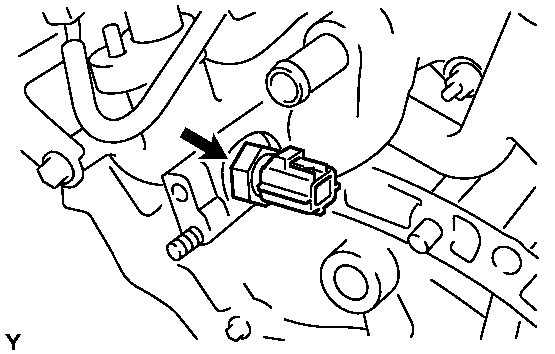

      Fig 1: Identifying Engine Coolant Temperature Sensor & Connector
      GTY104618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine coolant temperature sensor.
