Home >> Lexus >> 2012 >> IS 350C >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (Service Information) >> Speed Sensor >> Components >> Illustration

Speed Sensor: Components: Illustration

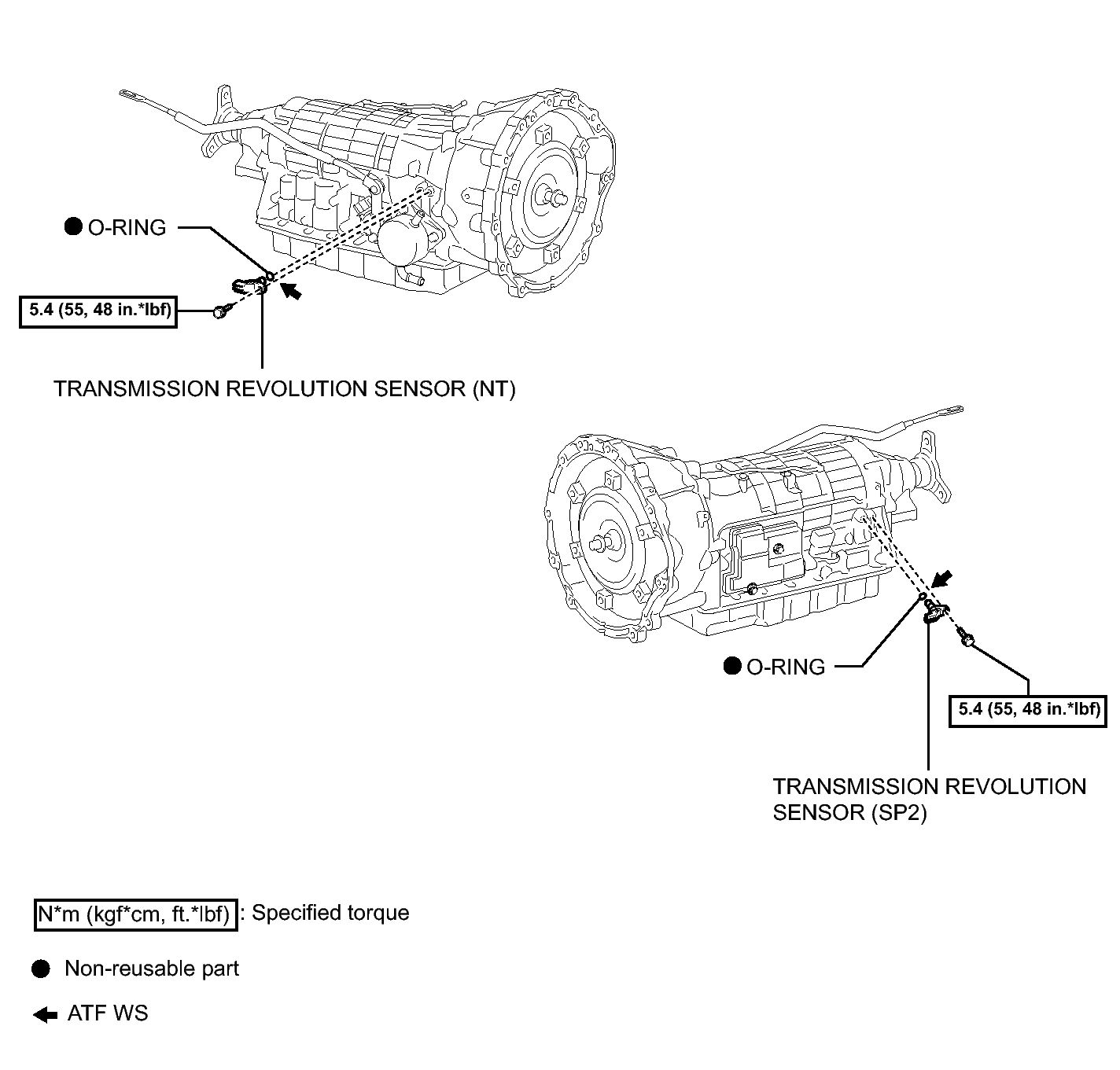

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications

GTY267467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
