OEM System Circuits
>>
Audio System (w/o LEXUS Navigation System)
>>
Notes
Audio System (w/o LEXUS Navigation System): Notes

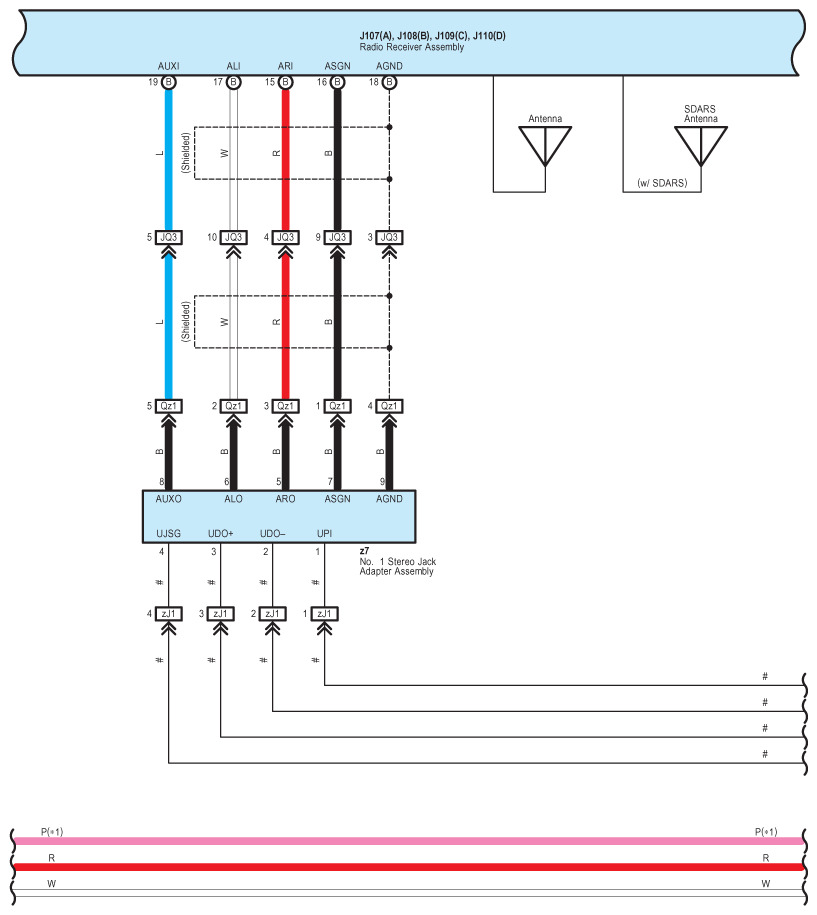

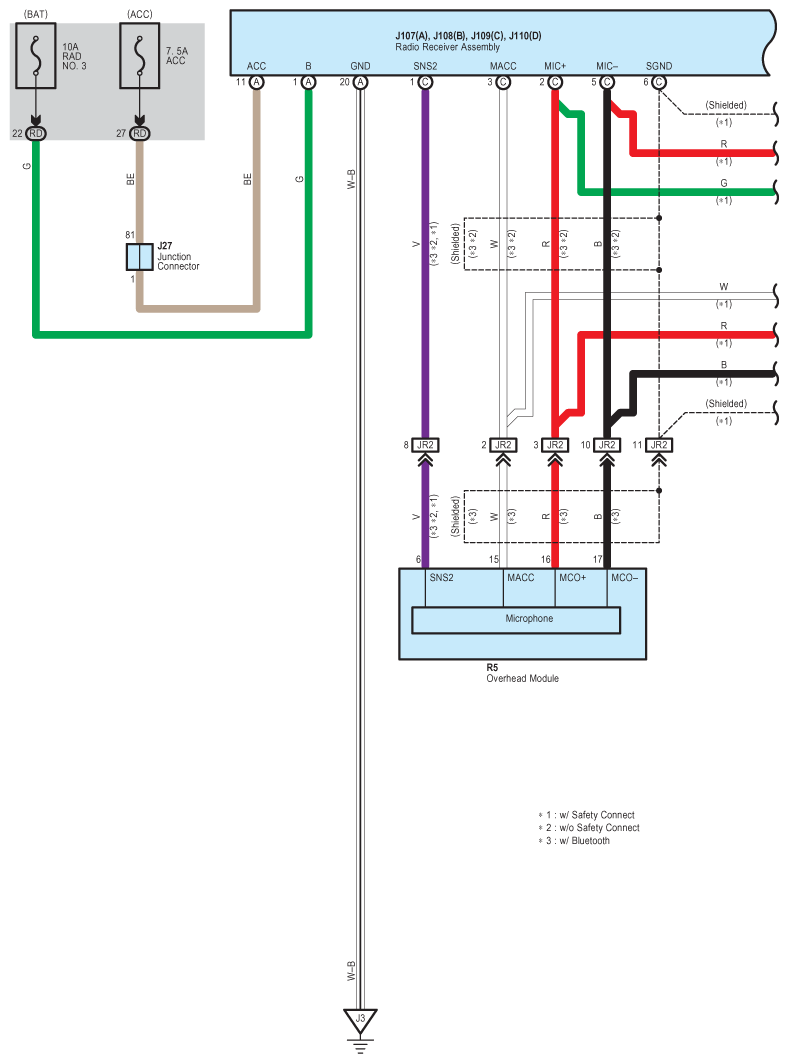

Fig 1: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

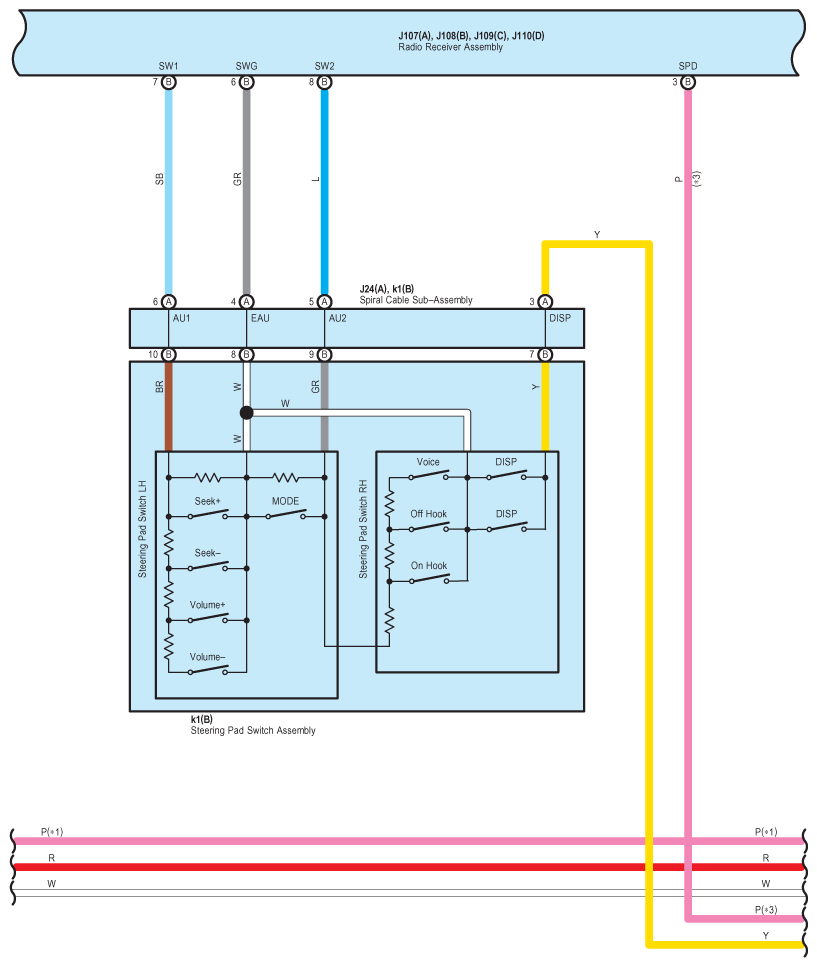

Fig 2: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

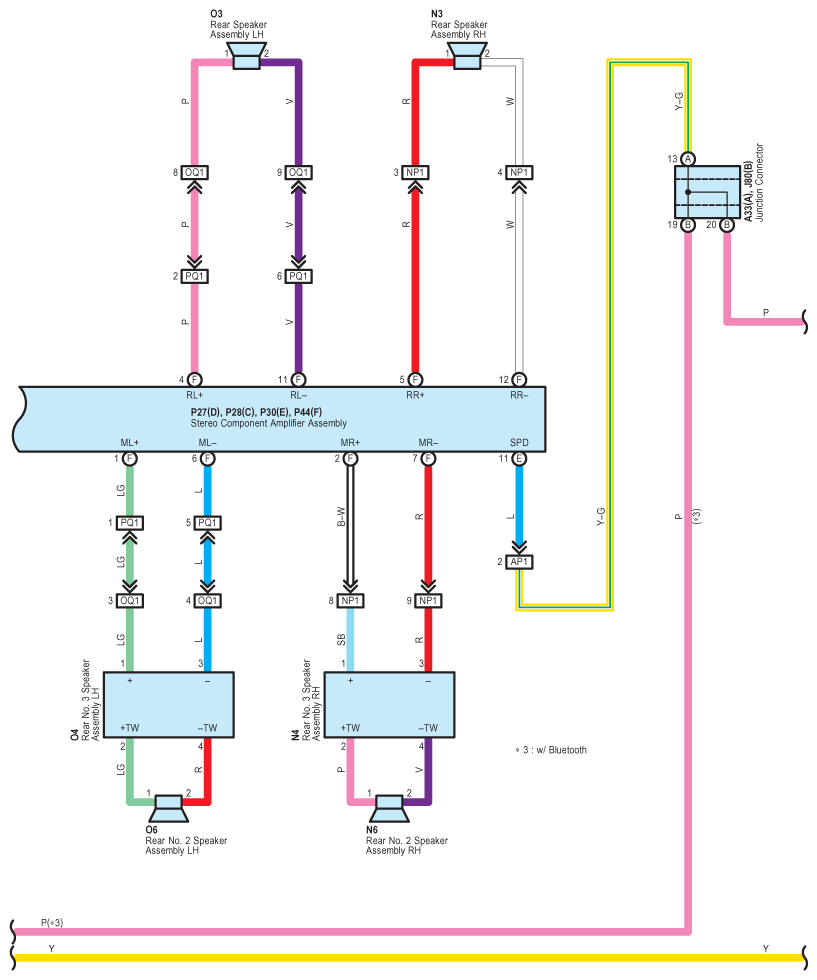

Fig 3: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

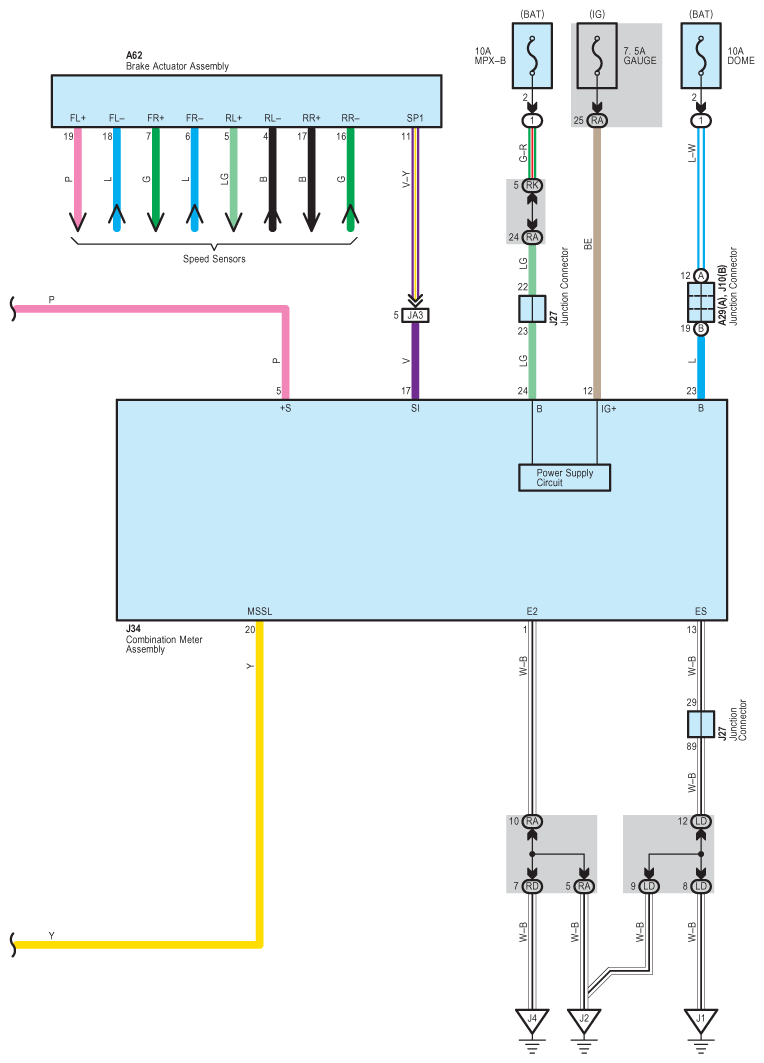

Fig 4: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

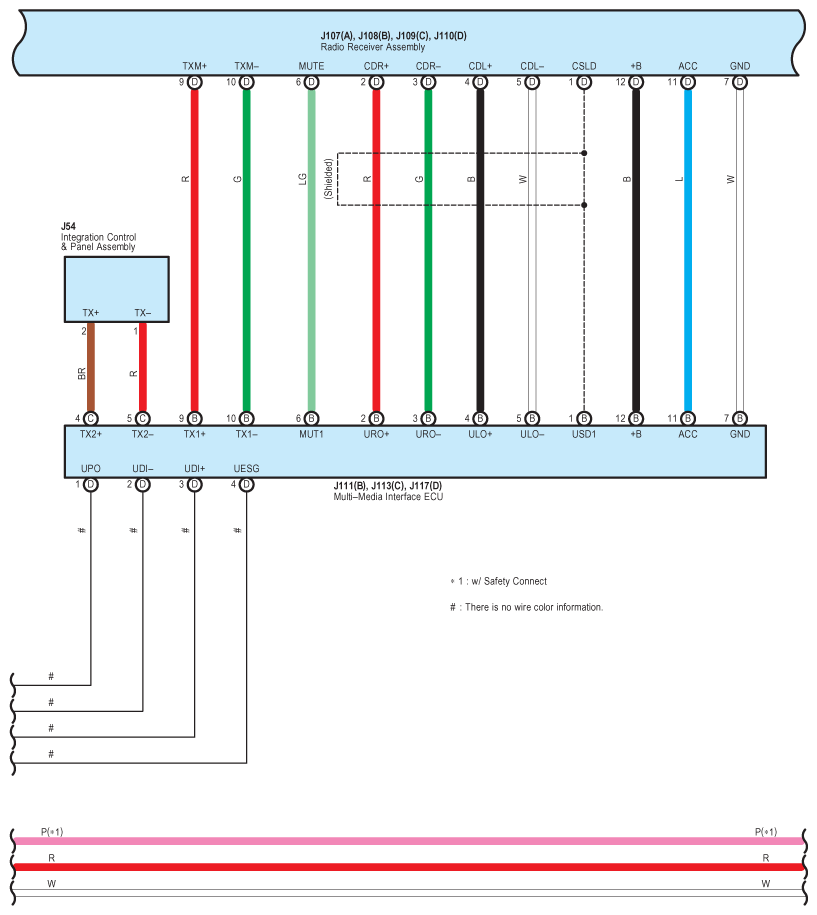

Fig 5: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

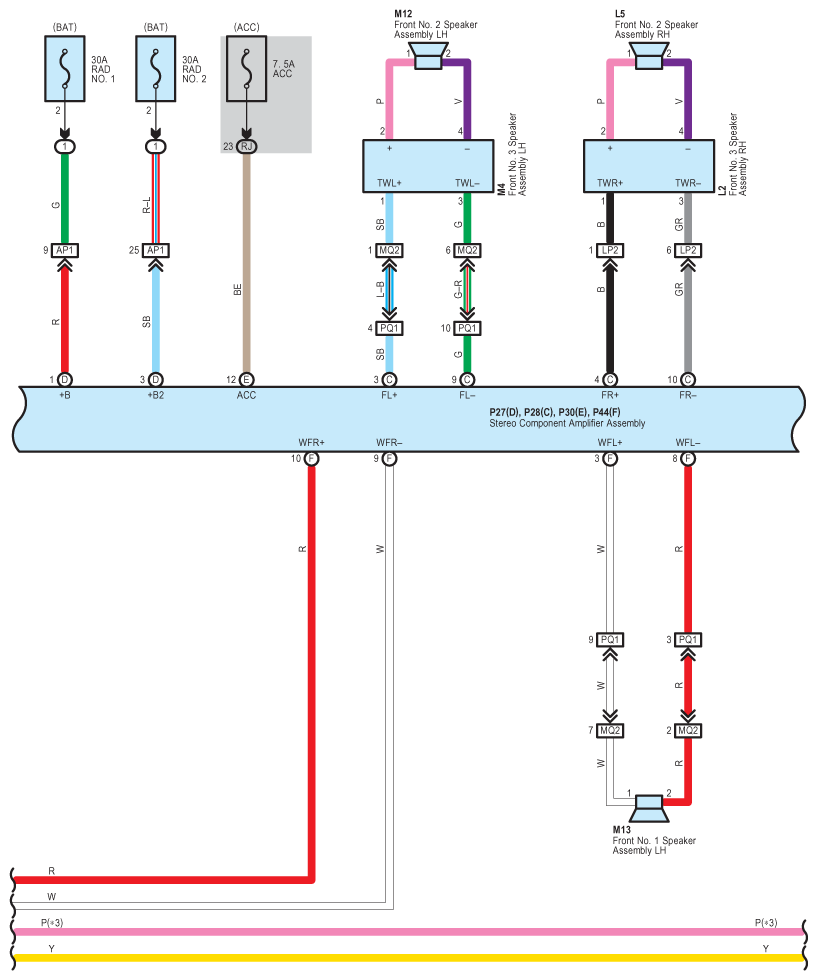

Fig 6: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

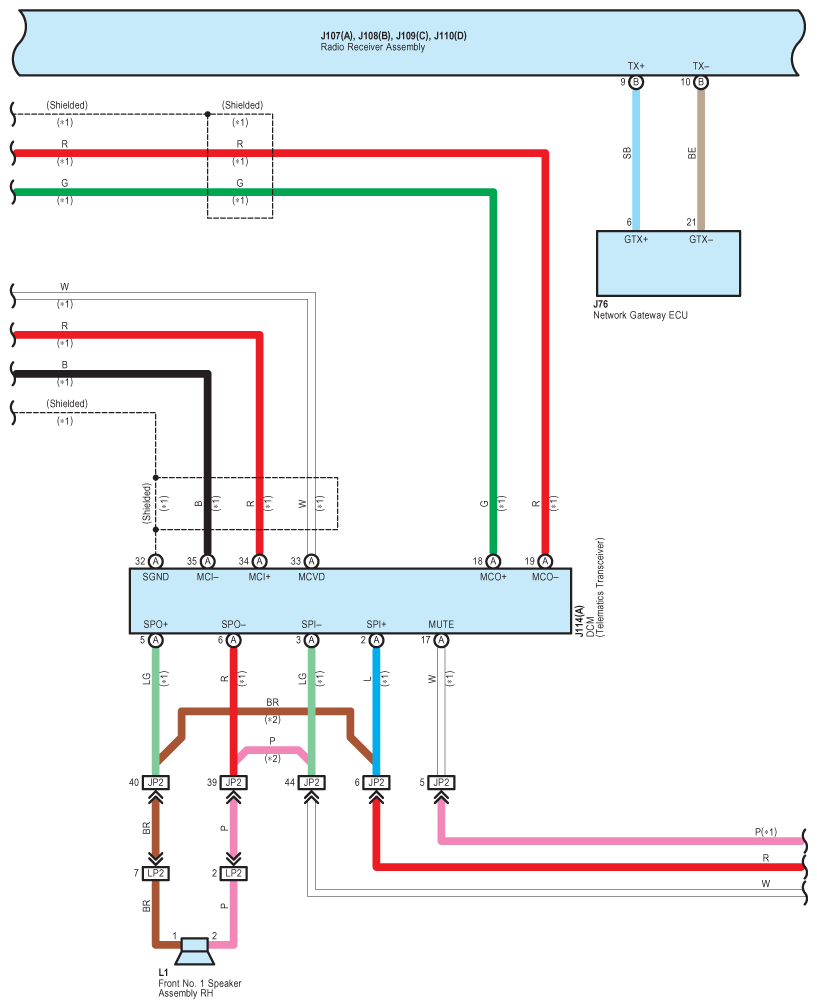

Fig 7: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

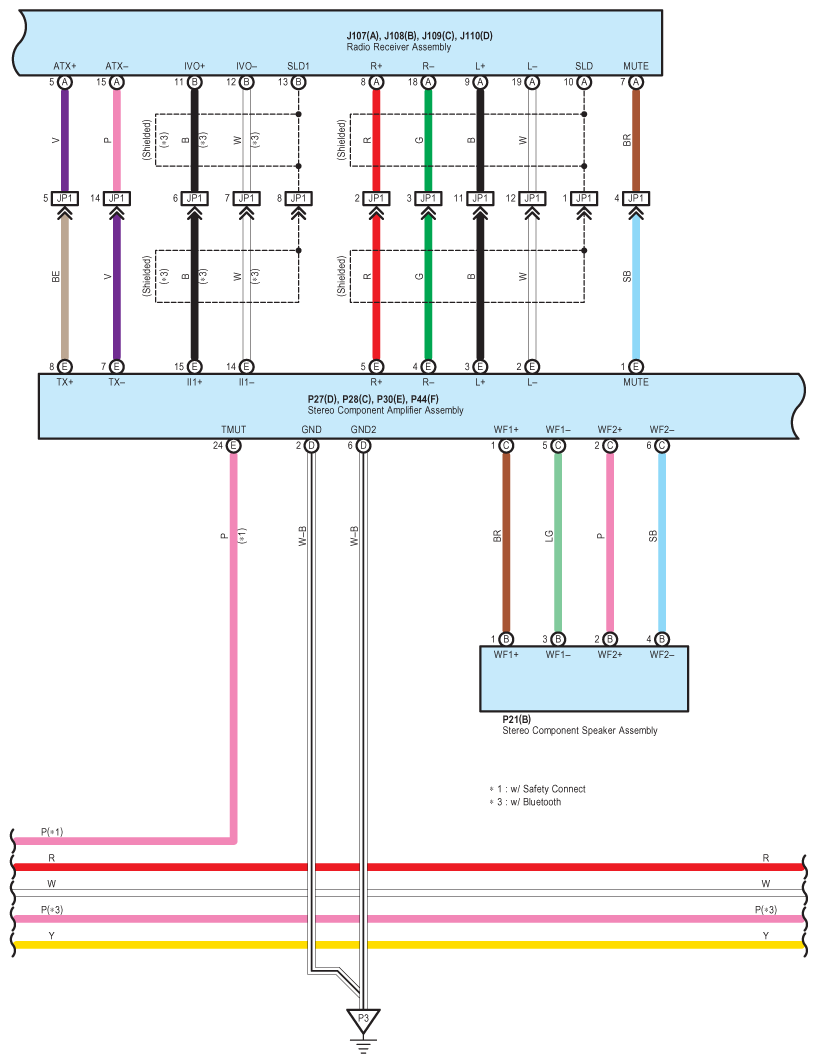

Fig 8: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
