OEM System Circuits: Charging: Notes

Fig 1: Charging - Wiring Diagram (1 Of 2)
G08939613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

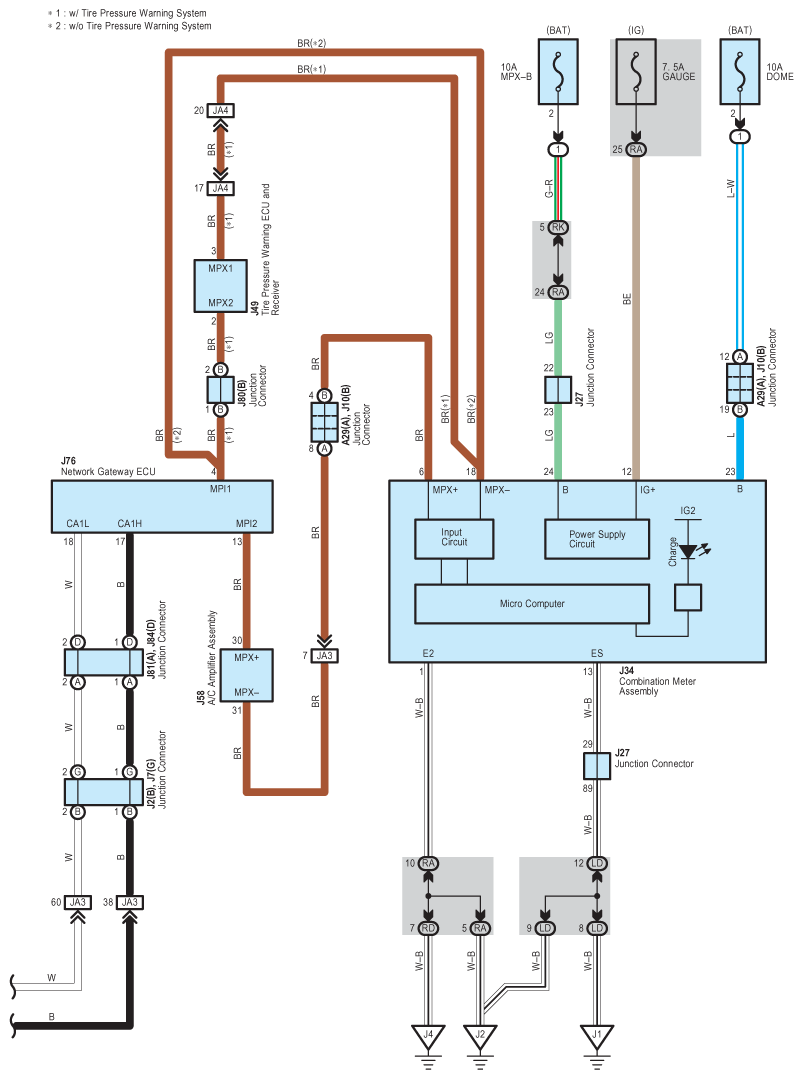

Fig 2: Charging - Wiring Diagram (2 Of 2)
G08939614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
