Cooling Fan: Notes

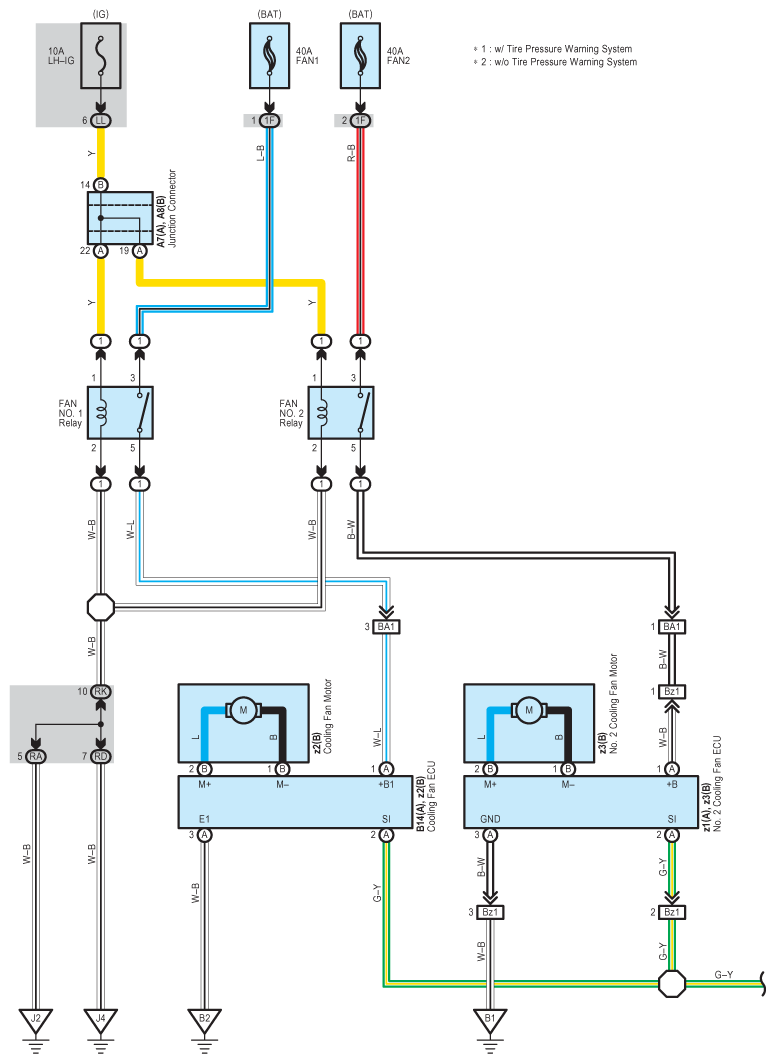

Fig 1: Cooling Fan - Wiring Diagram (1 Of 3)
G08939888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

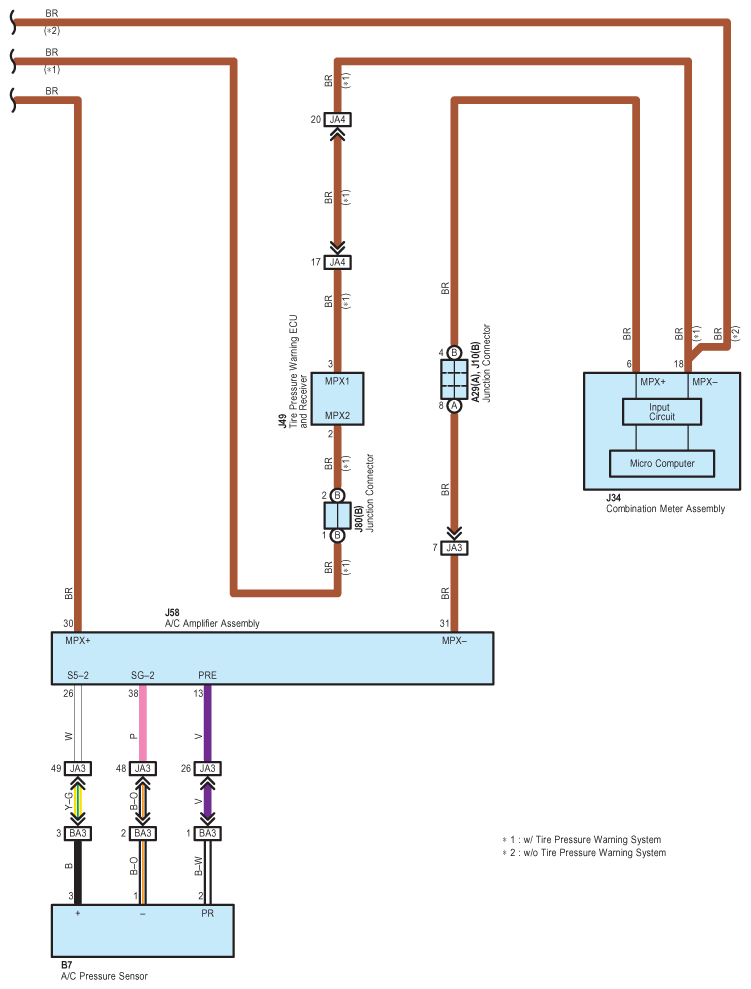

Fig 2: Cooling Fan - Wiring Diagram (2 Of 3)
G08939889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

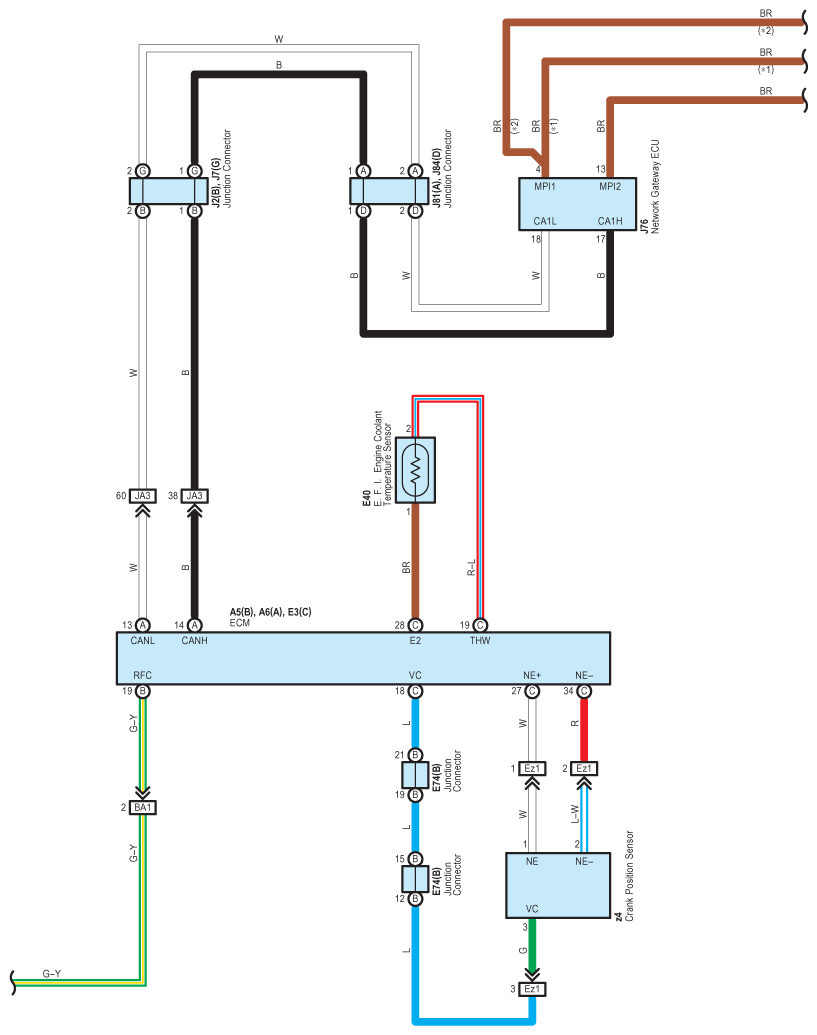

Fig 3: Cooling Fan - Wiring Diagram (3 Of 3)
G08939890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
