OEM System Circuits: Illumination: Notes

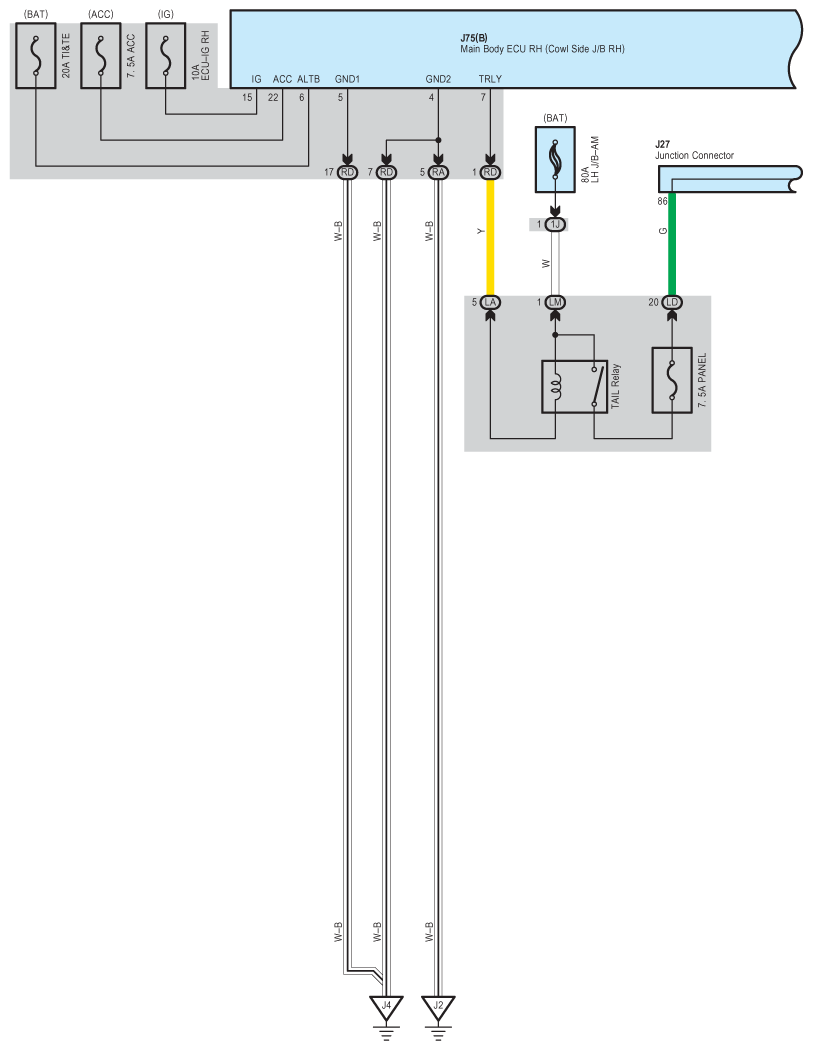

Fig 1: Illumination - Wiring Diagram (1 Of 8)

G08939677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

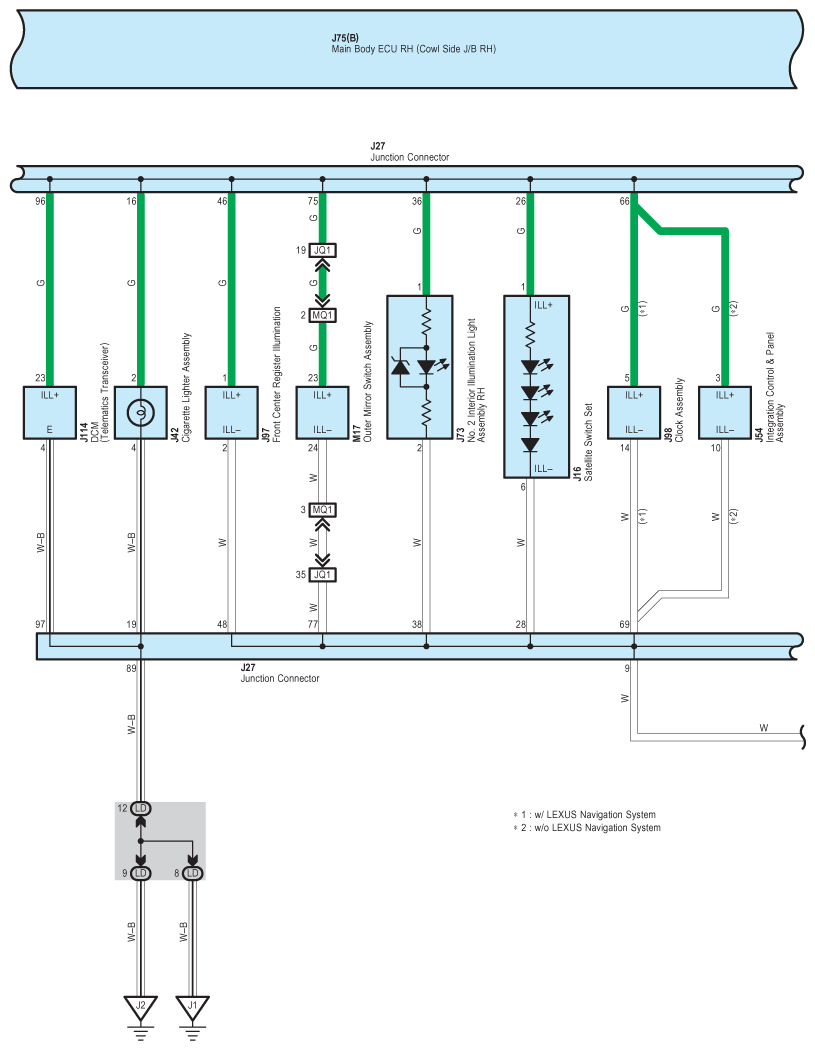

Fig 2: Illumination - Wiring Diagram (2 Of 8)

G08939678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

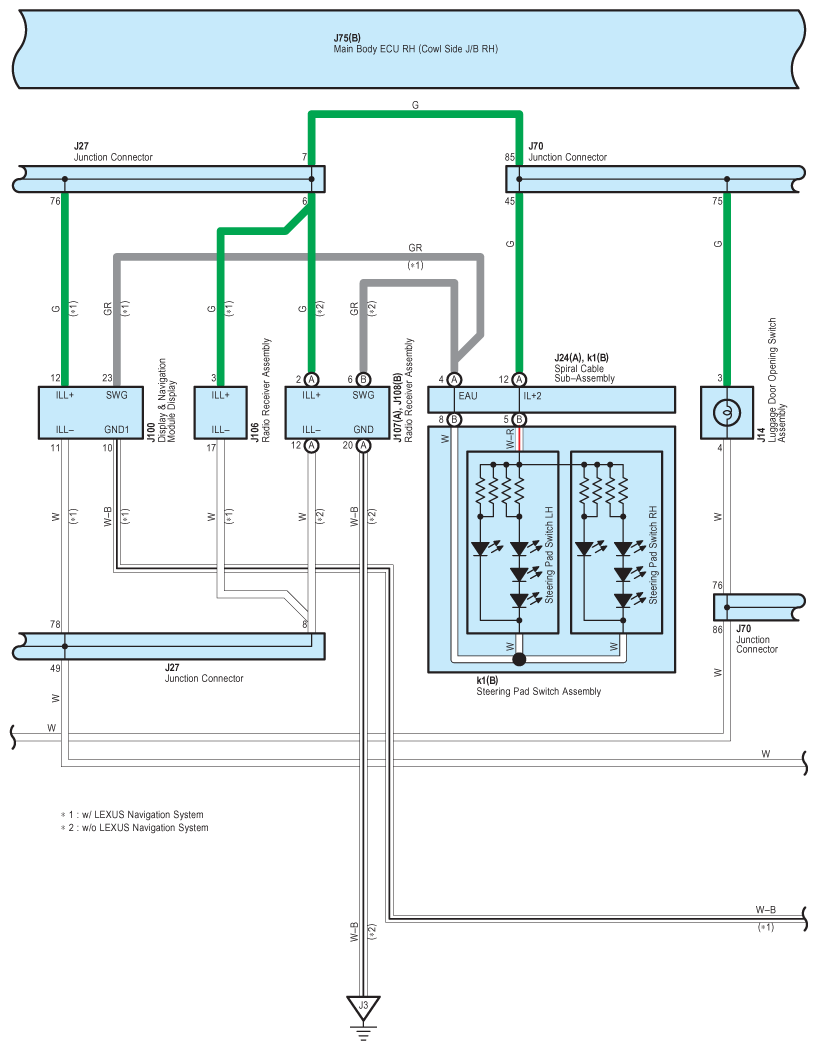

Fig 3: Illumination - Wiring Diagram (3 Of 8)

G08939679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Illumination - Wiring Diagram (4 Of 8)

G08939680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

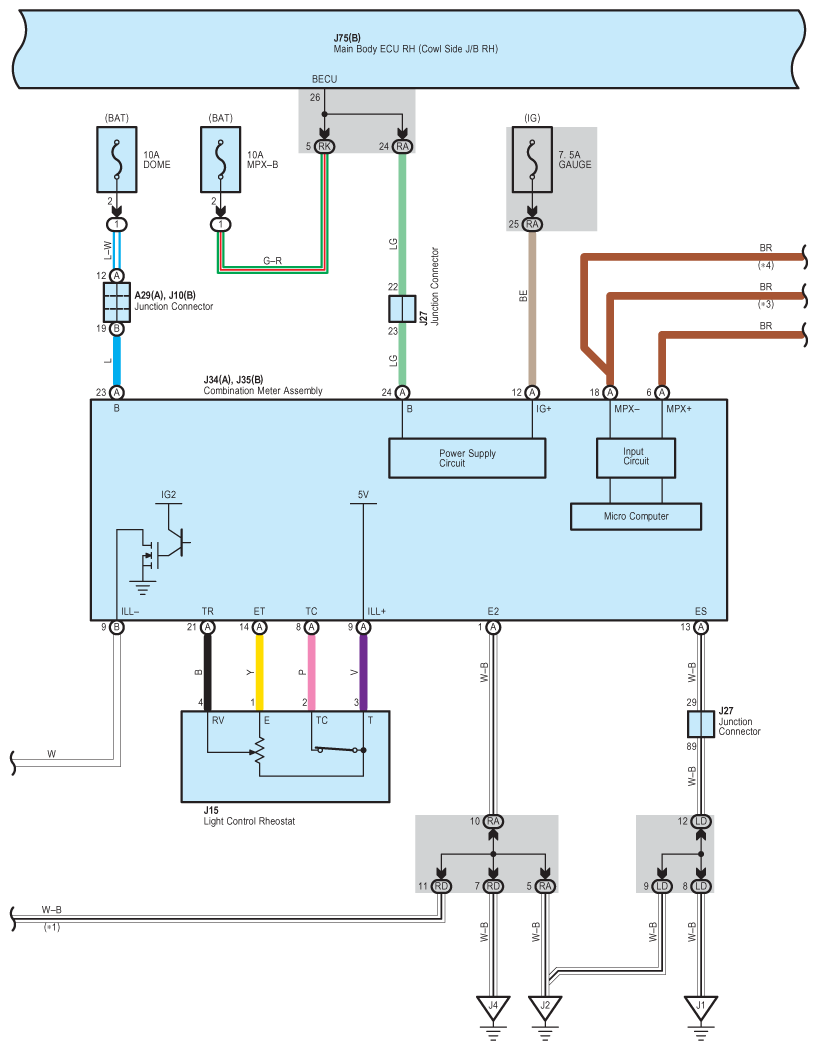

Fig 5: Illumination - Wiring Diagram (5 Of 8)

G08939681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

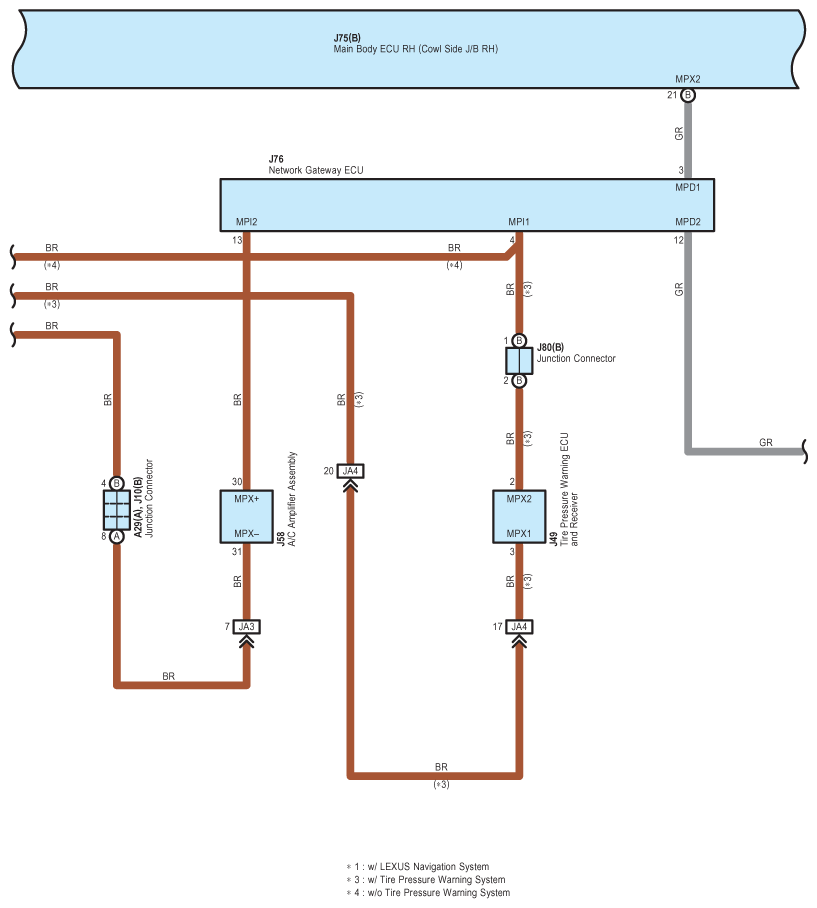

Fig 6: Illumination - Wiring Diagram (6 Of 8)

G08939682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

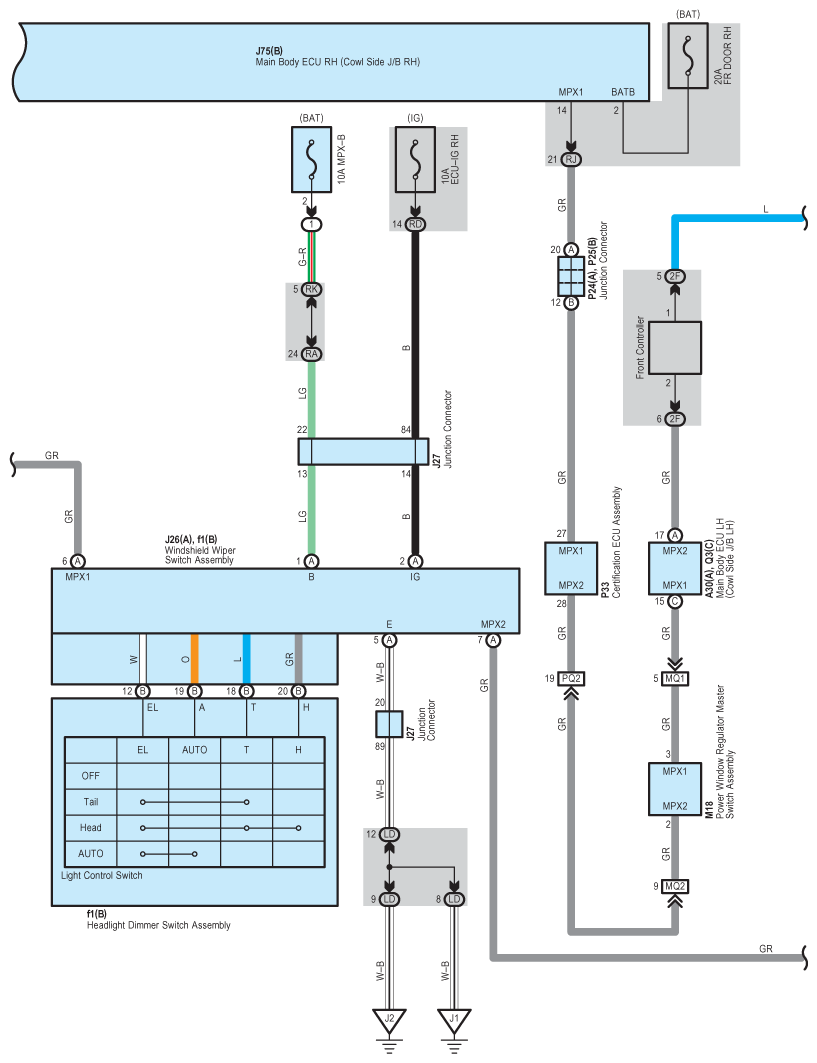

Fig 7: Illumination - Wiring Diagram (7 Of 8)

G08939683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

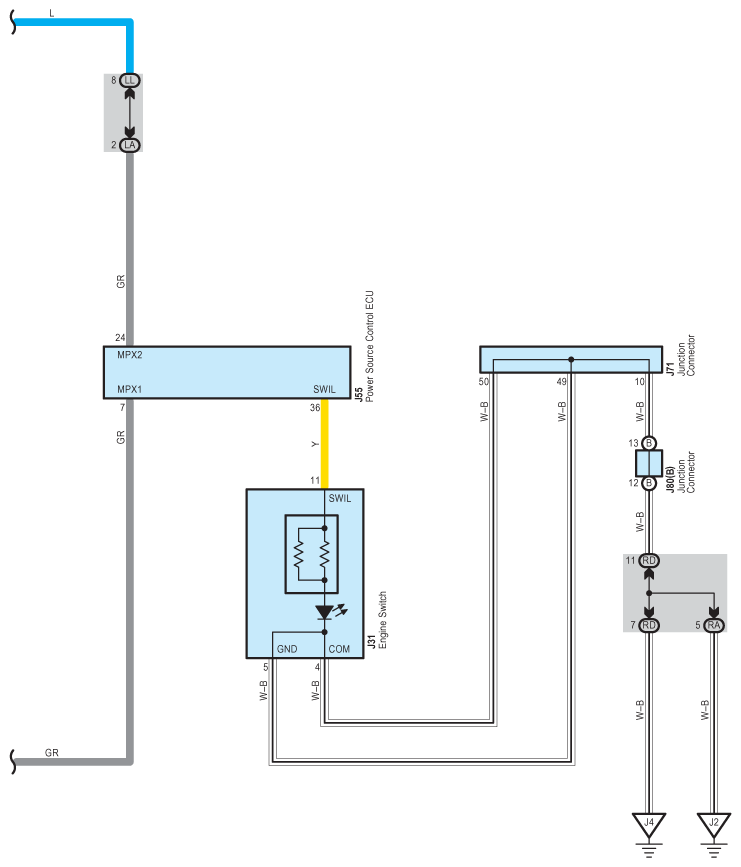

Fig 8: Illumination - Wiring Diagram (8 Of 8)

G08939684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
