Mirror Heater and Rear Window Defogger: Notes

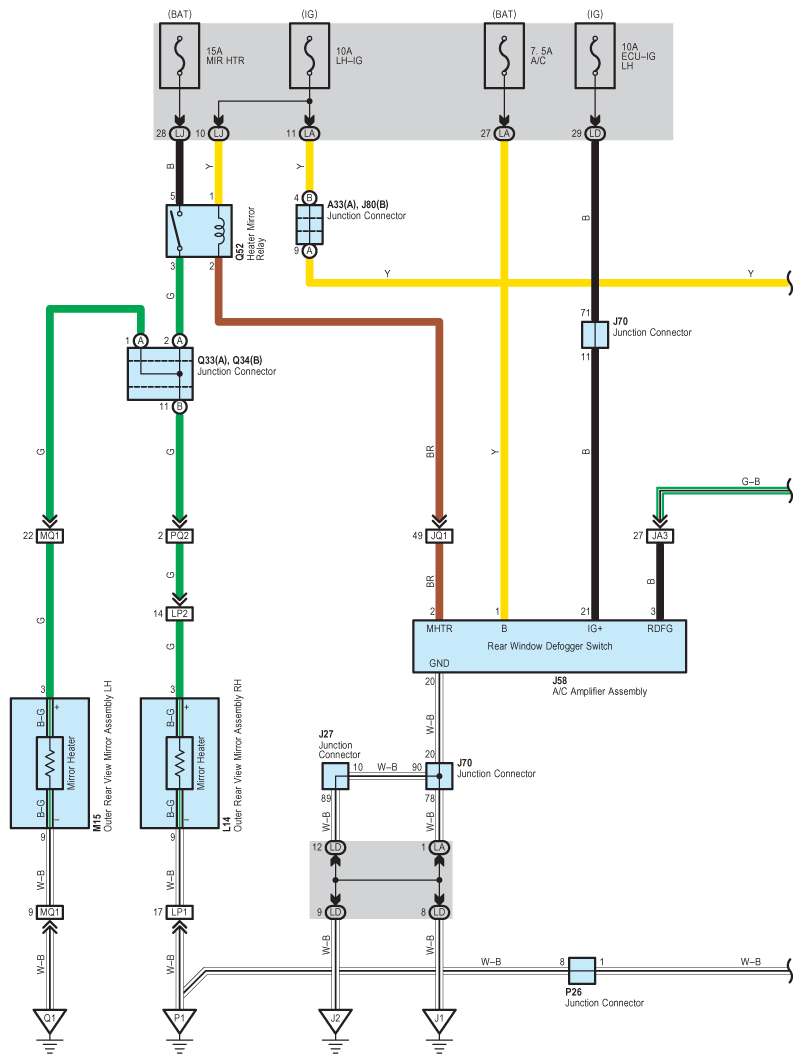

Fig 1: Mirror Heater And Rear Window Defogger - Wiring Diagram (1 Of 2)
G08939838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

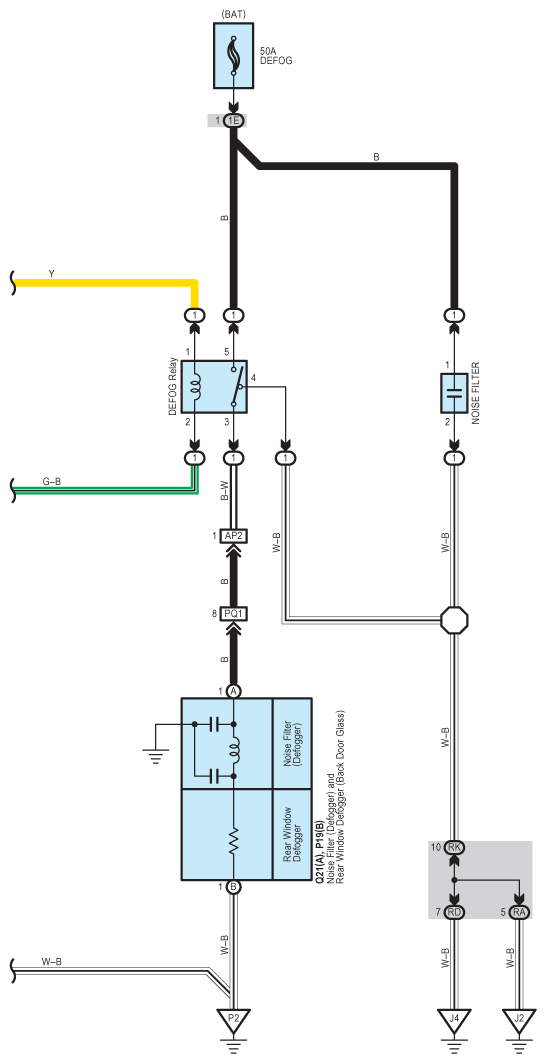

Fig 2: Mirror Heater And Rear Window Defogger - Wiring Diagram (2 Of 2)
G08939839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
