OEM System Circuits: Taillight: Notes

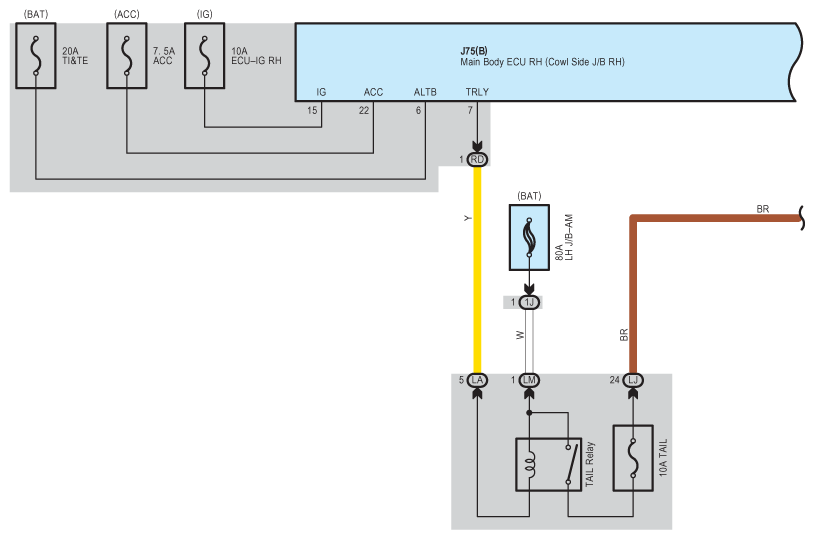

Fig 1: Taillight - Wiring Diagram (1 Of 8)

G08939685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

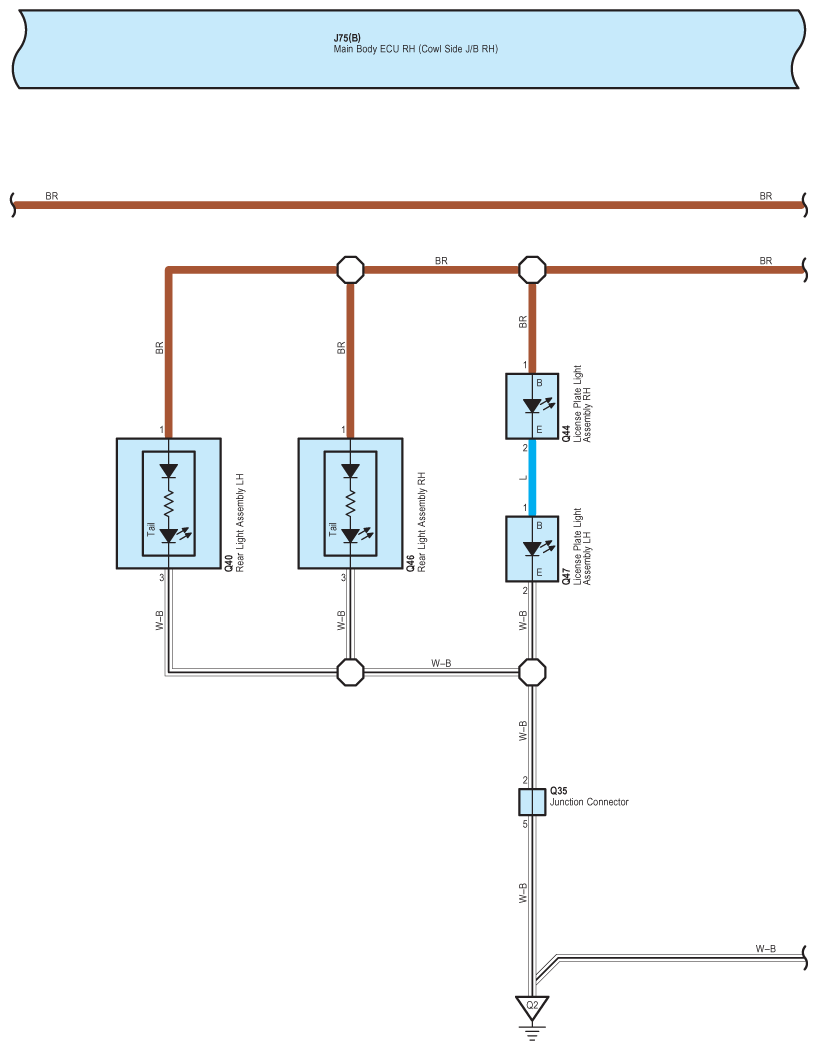

Fig 2: Taillight - Wiring Diagram (2 Of 8)

G08939686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

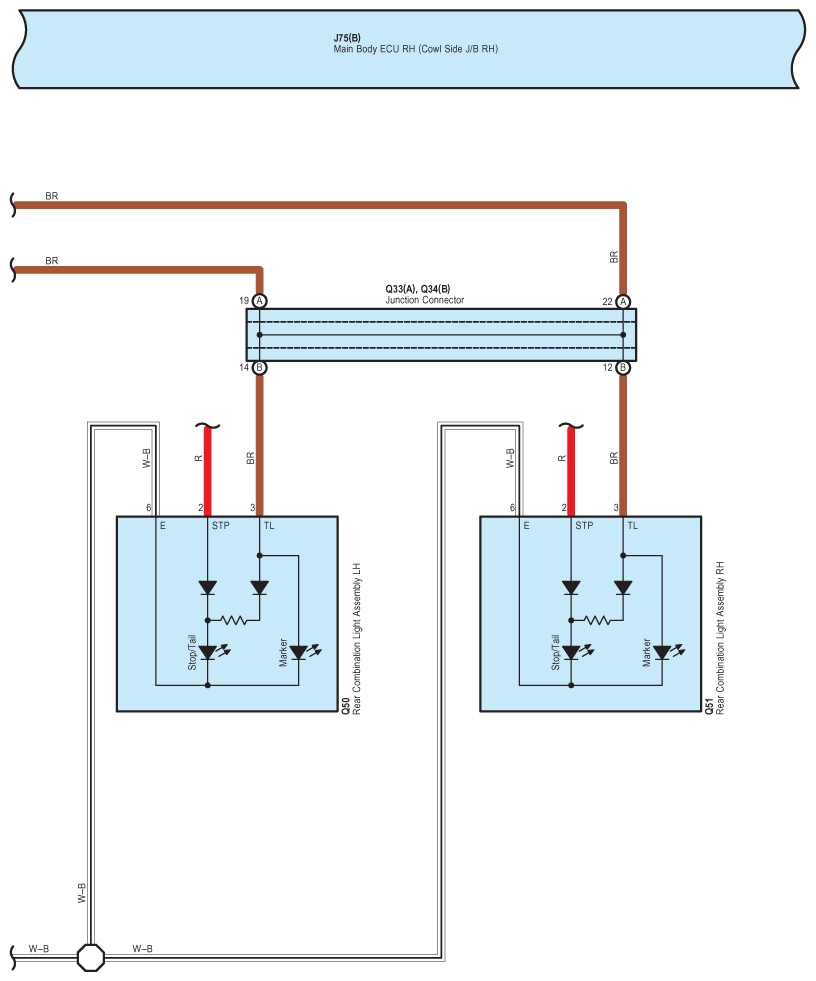

Fig 3: Taillight - Wiring Diagram (3 Of 8)

G08939687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

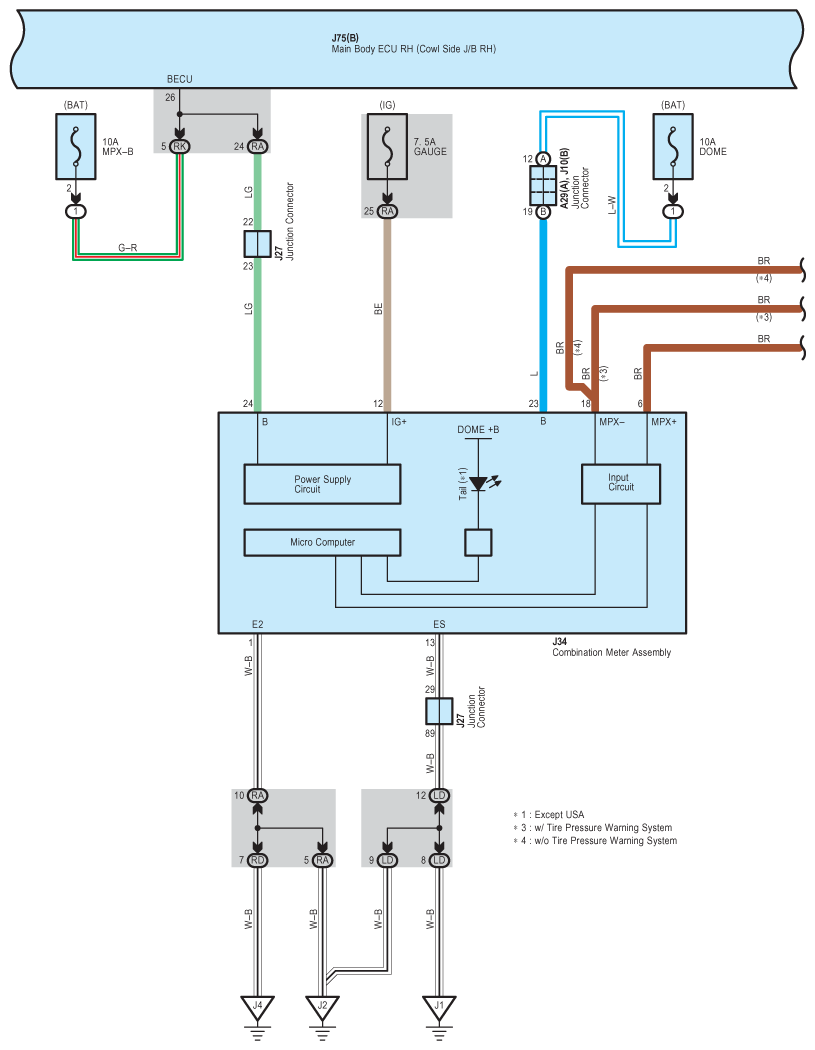

Fig 4: Taillight - Wiring Diagram (4 Of 8)

G08939688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

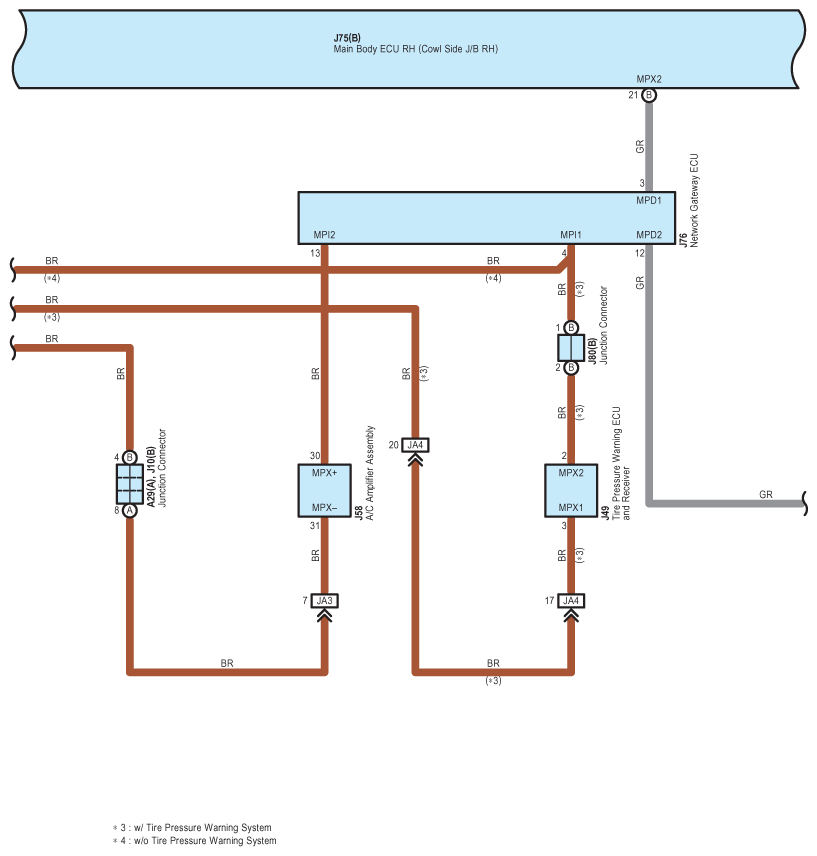

Fig 5: Taillight - Wiring Diagram (5 Of 8)

G08939689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

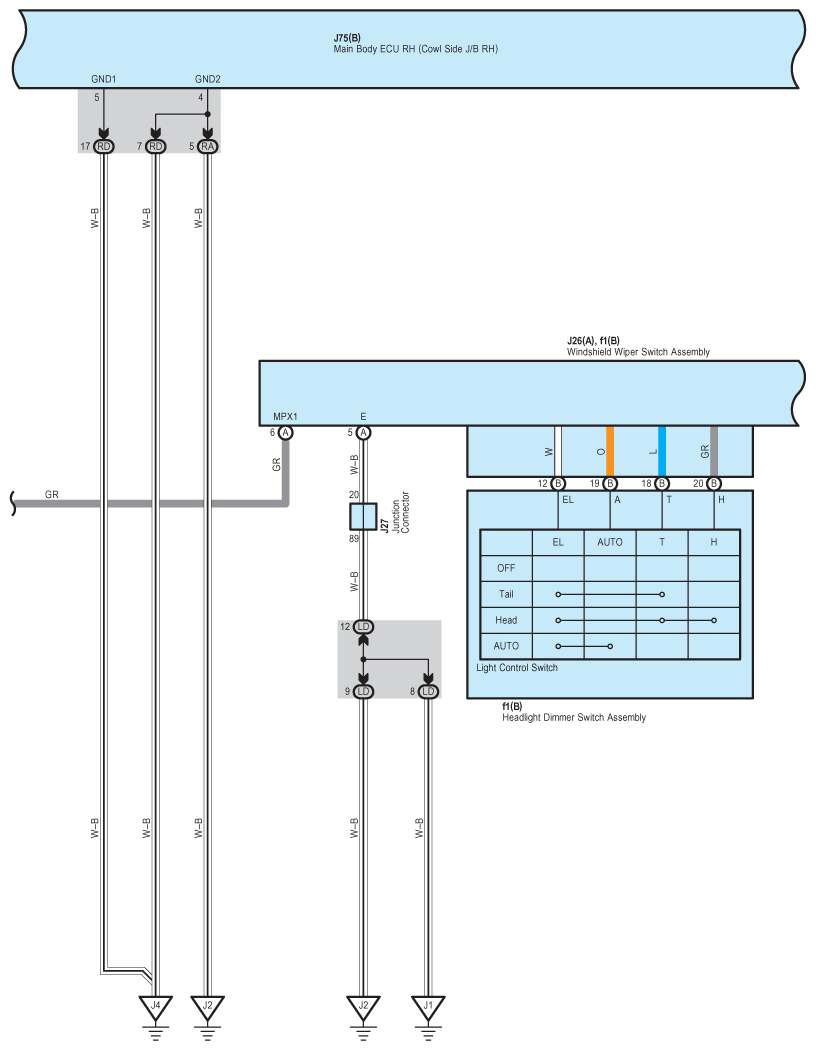

Fig 6: Taillight - Wiring Diagram (6 Of 8)

G08939690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

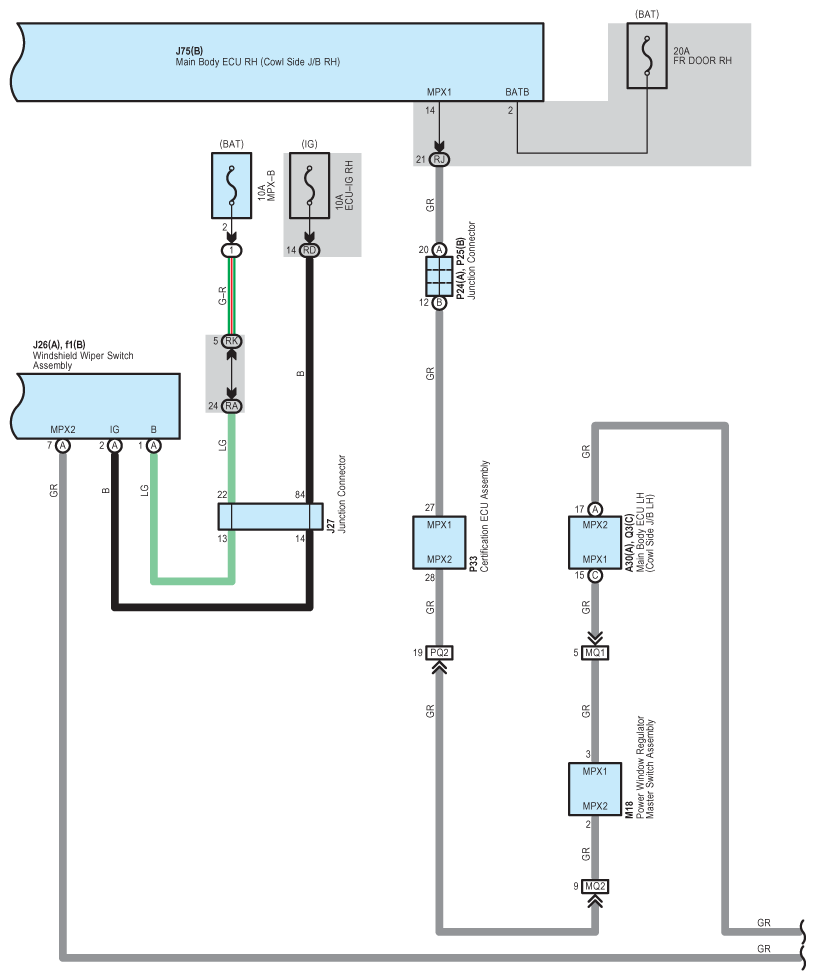

Fig 7: Taillight - Wiring Diagram (7 Of 8)

G08939691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

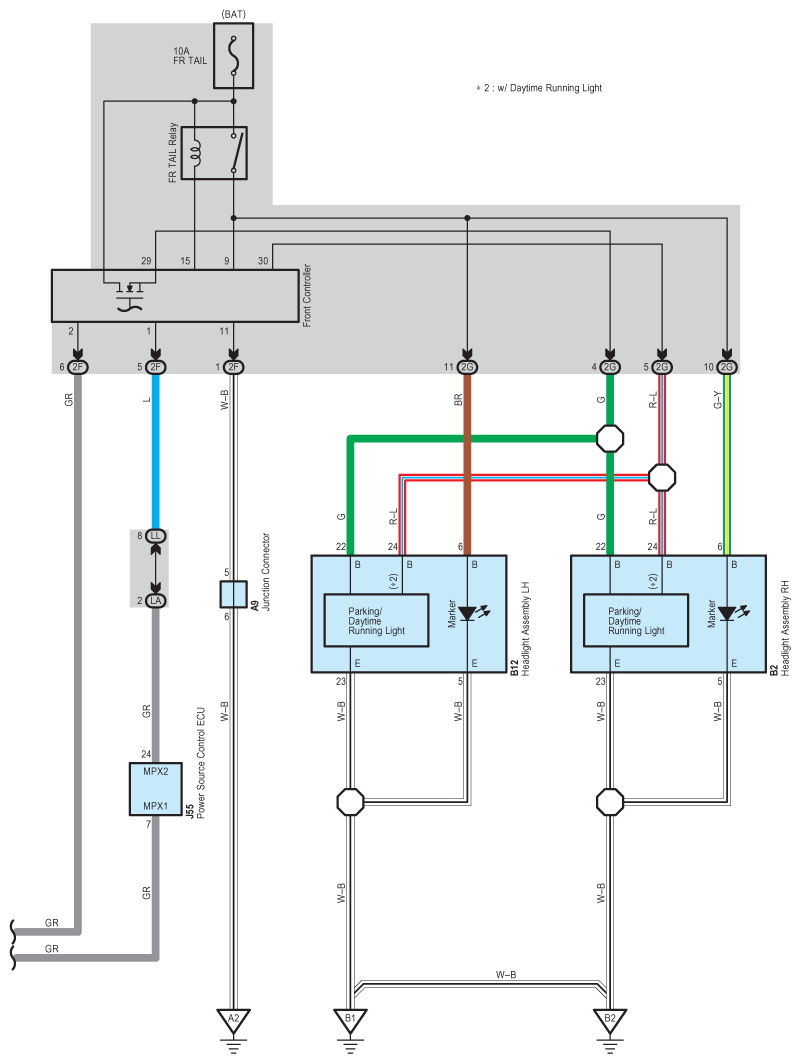

Fig 8: Taillight - Wiring Diagram (8 Of 8)

G08939692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
