Engine Switch: Components: Illustration

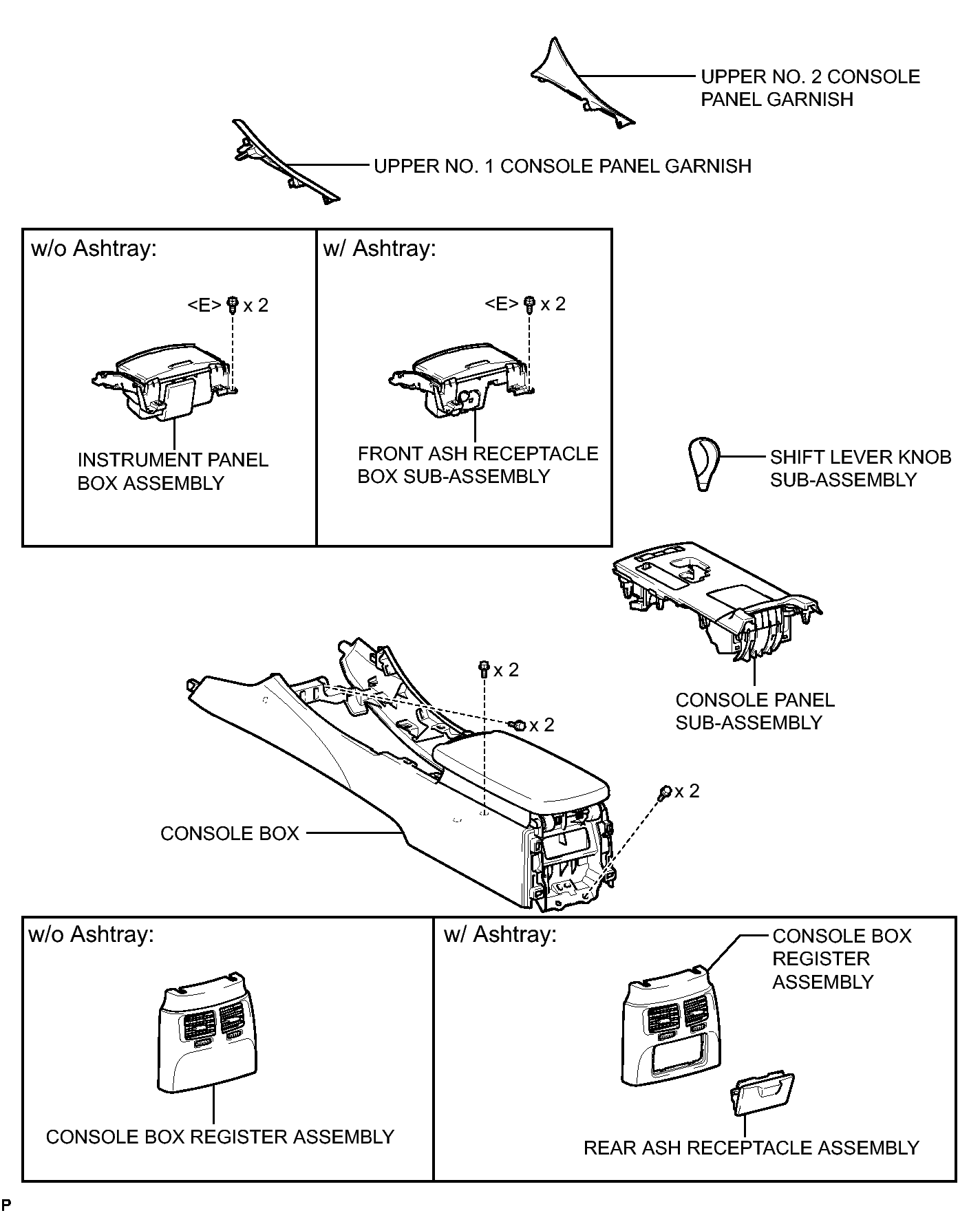

Fig 1: Identifying Engine Switch Replacement Components (1 Of 3)
GTY358479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

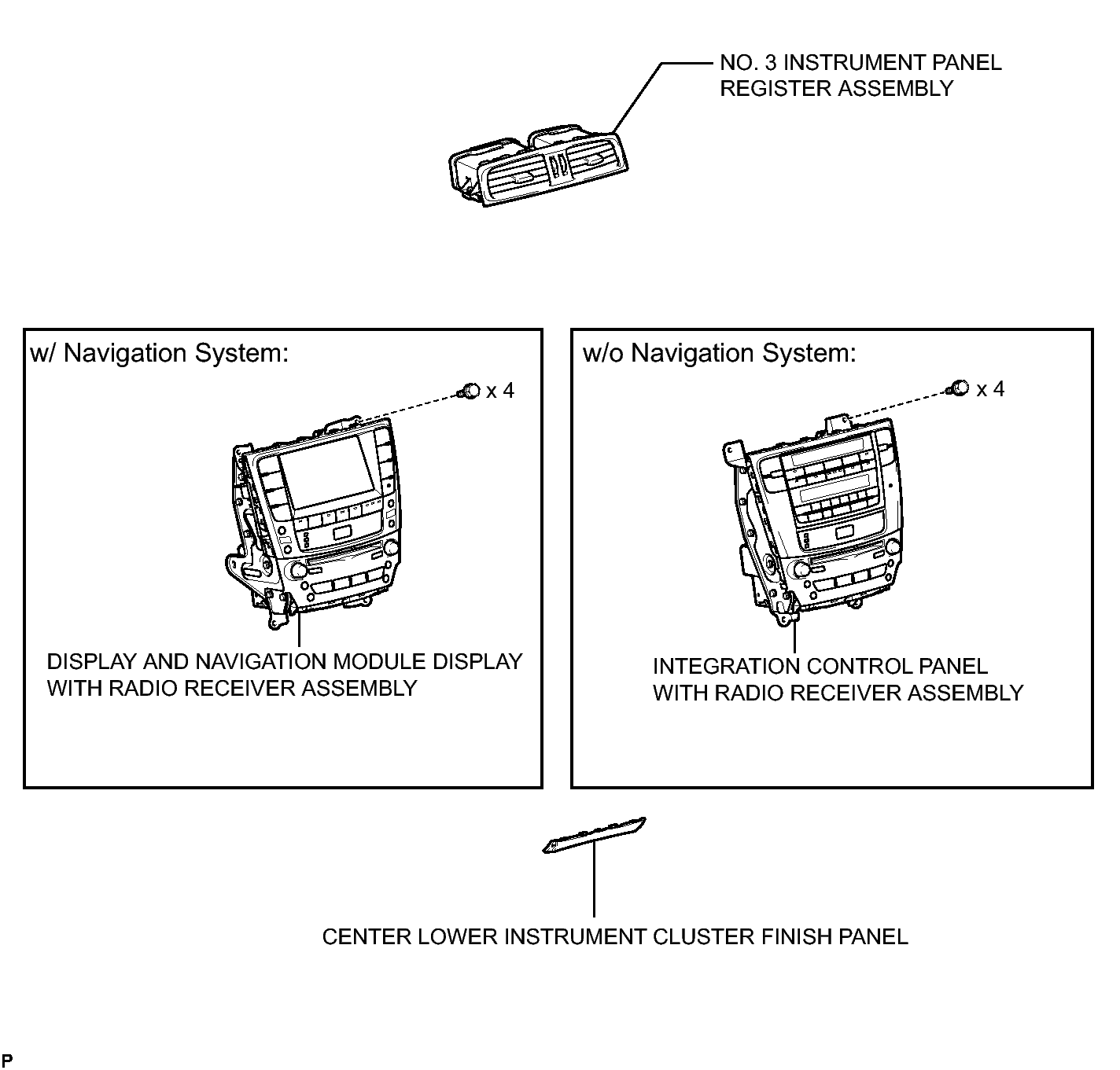

Fig 1: Identifying Engine Switch Replacement Components (2 Of 3)
GTY395416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

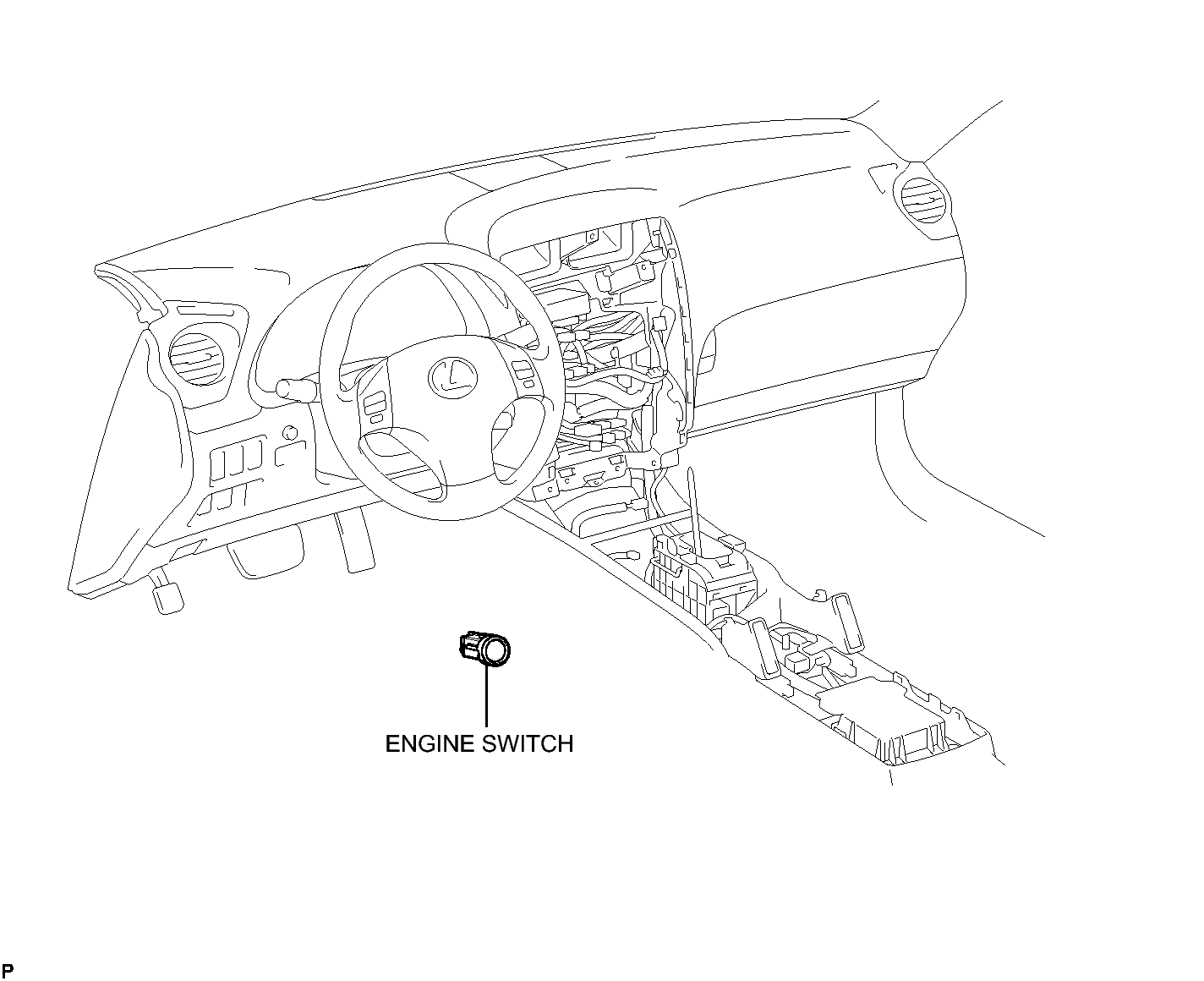

Fig 1: Identifying Engine Switch Replacement Components (3 Of 3)
GTY138956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
