Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 3)
GTY120905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


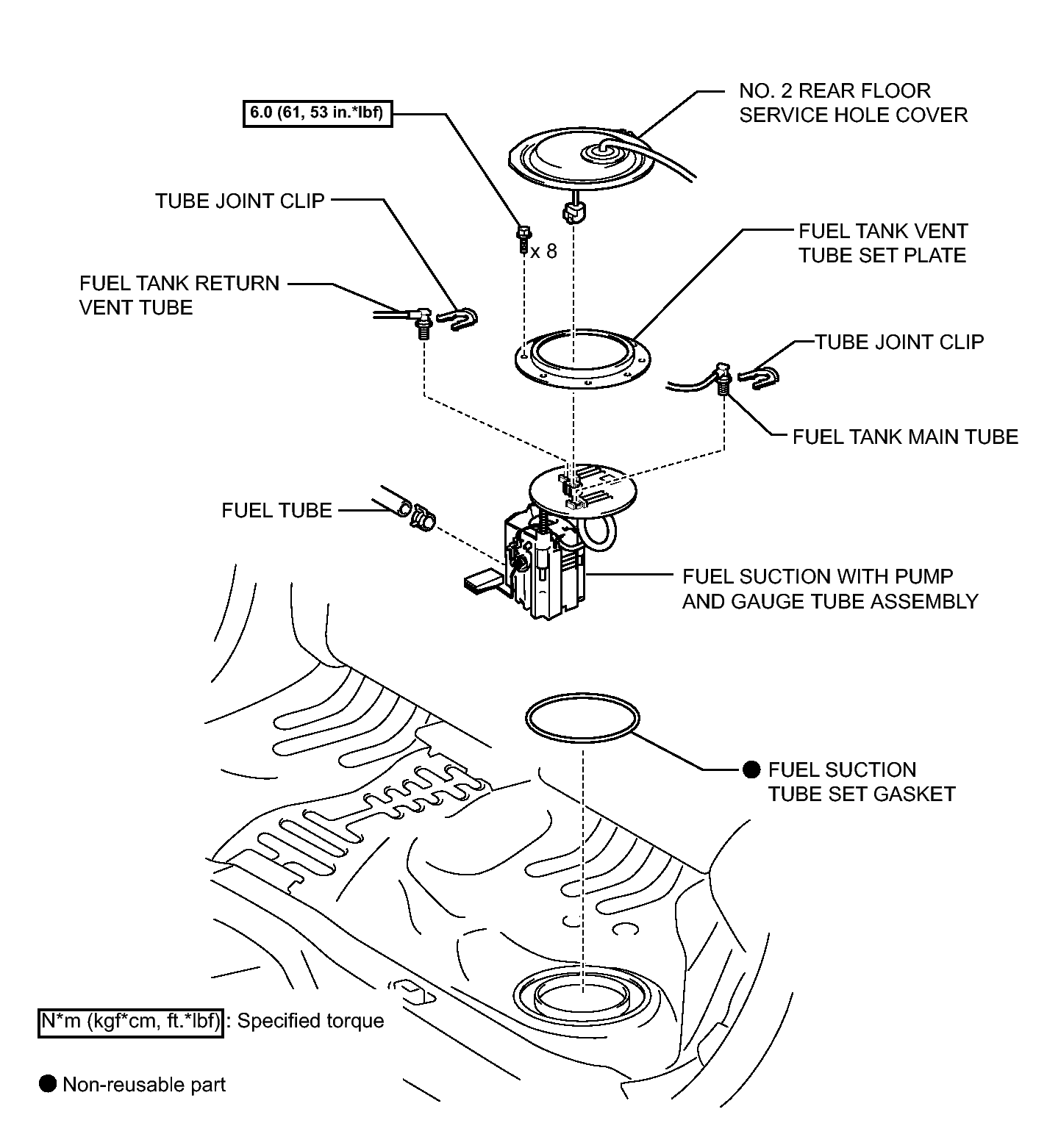

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 3)
GTY148915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

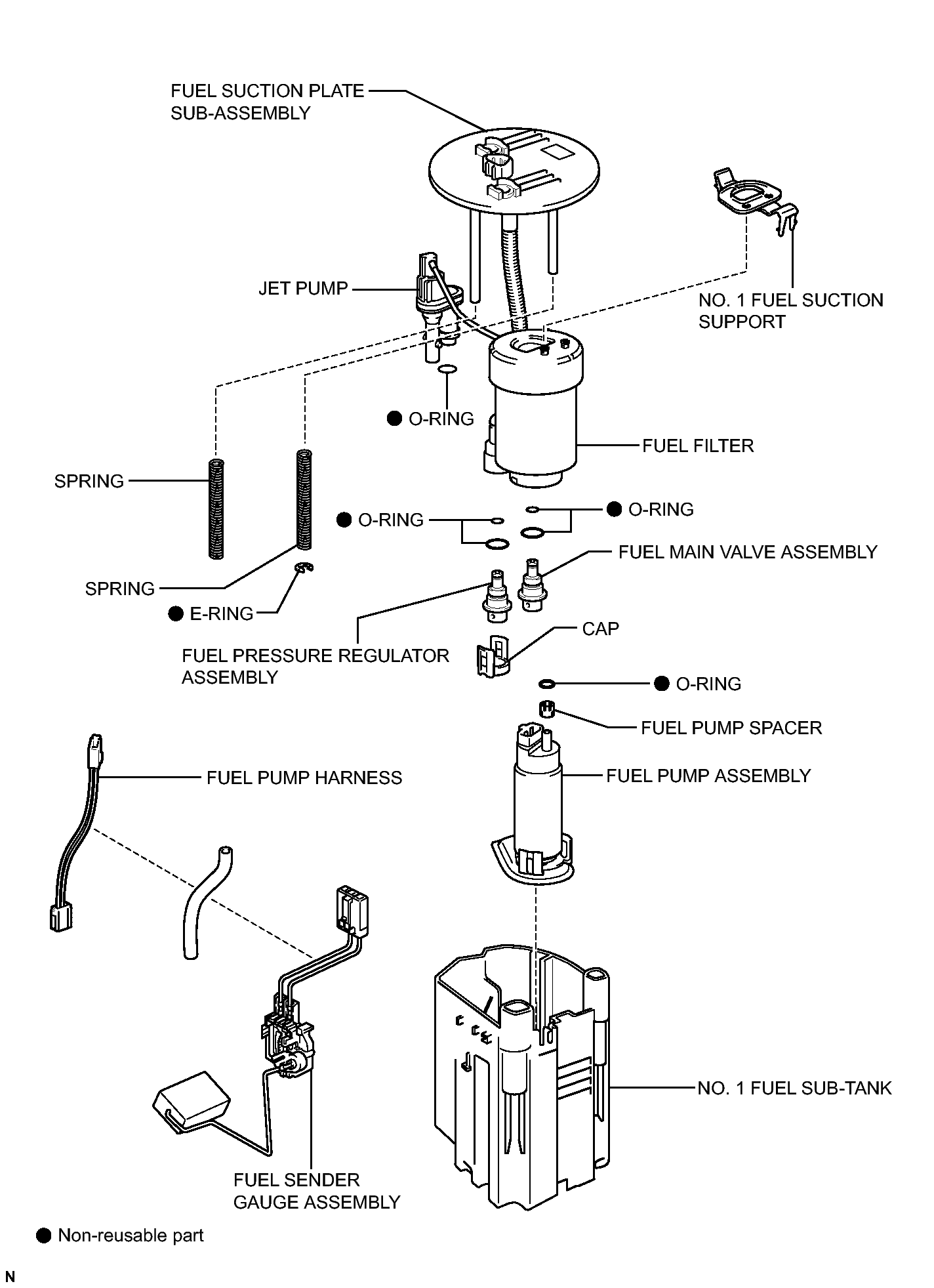

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 3)
GTY275704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
