Occupant Detection Sensor: Components: Illustration

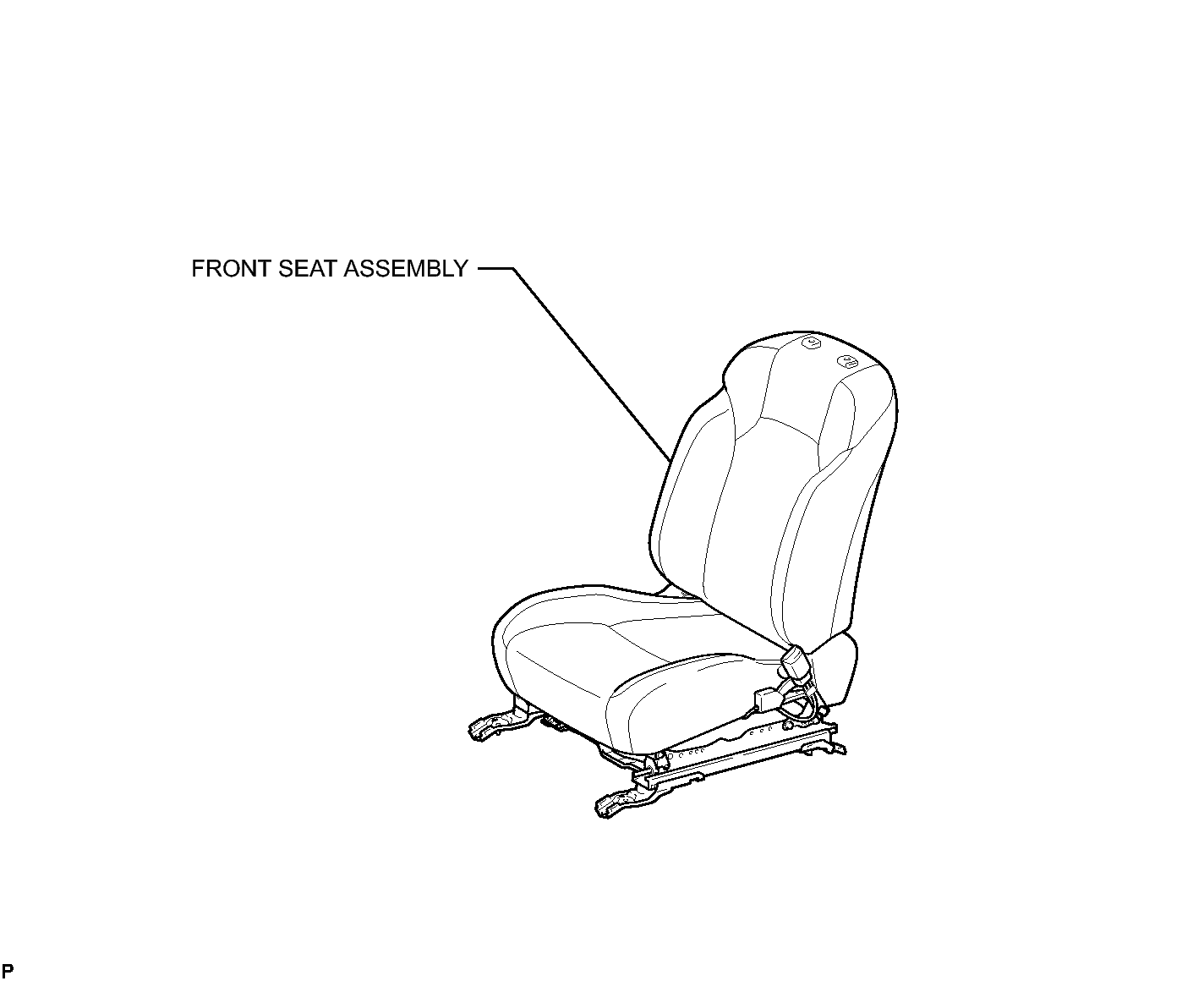

Fig 1: Identifying Occupant Detection Sensor Replacement Components (1 Of 2)
GTY357929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

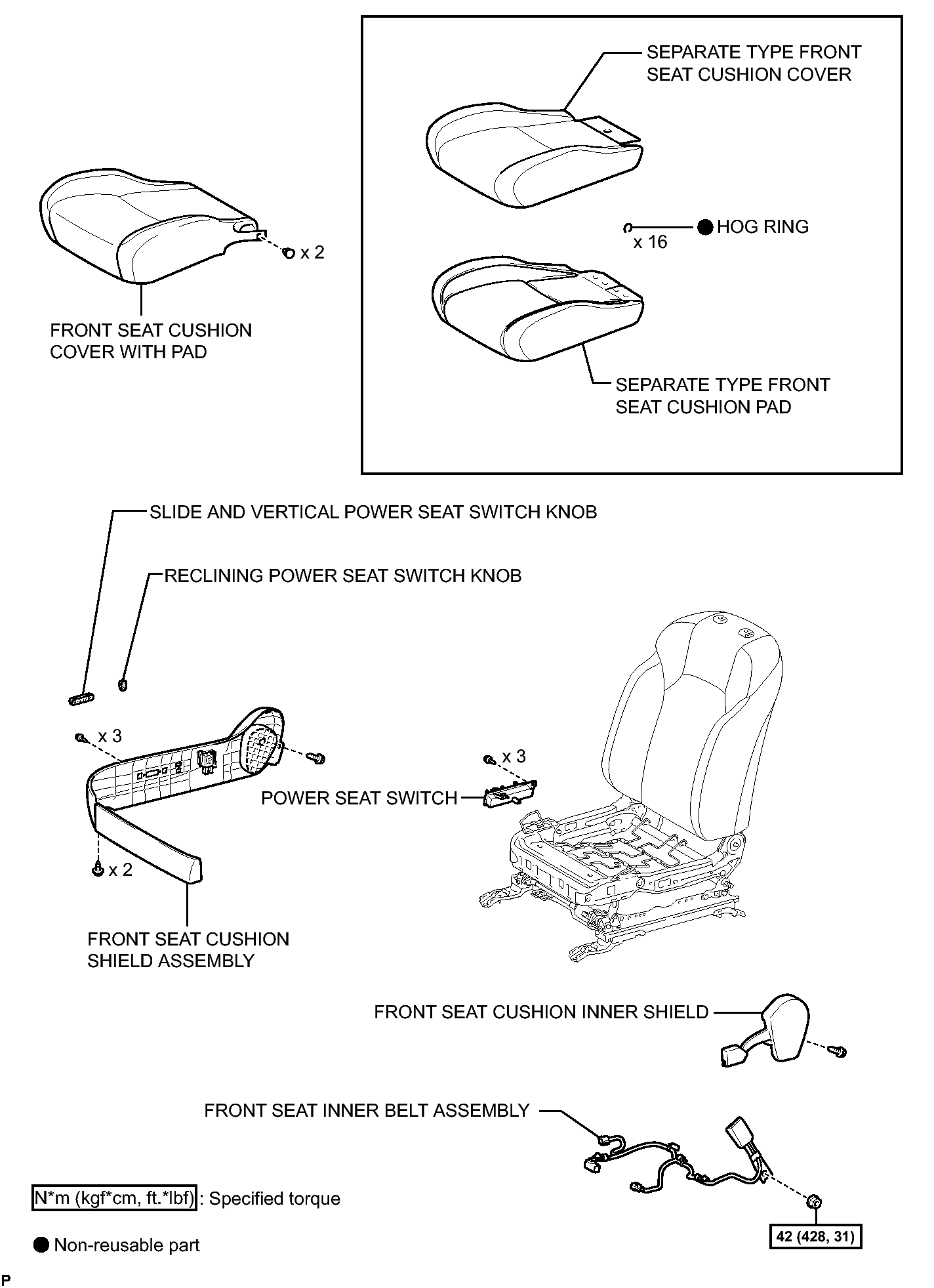

Fig 1: Identifying Occupant Detection Sensor Replacement Components (2 Of 2)
GTY357632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
