Shift Paddle Switch: Components: Illustration

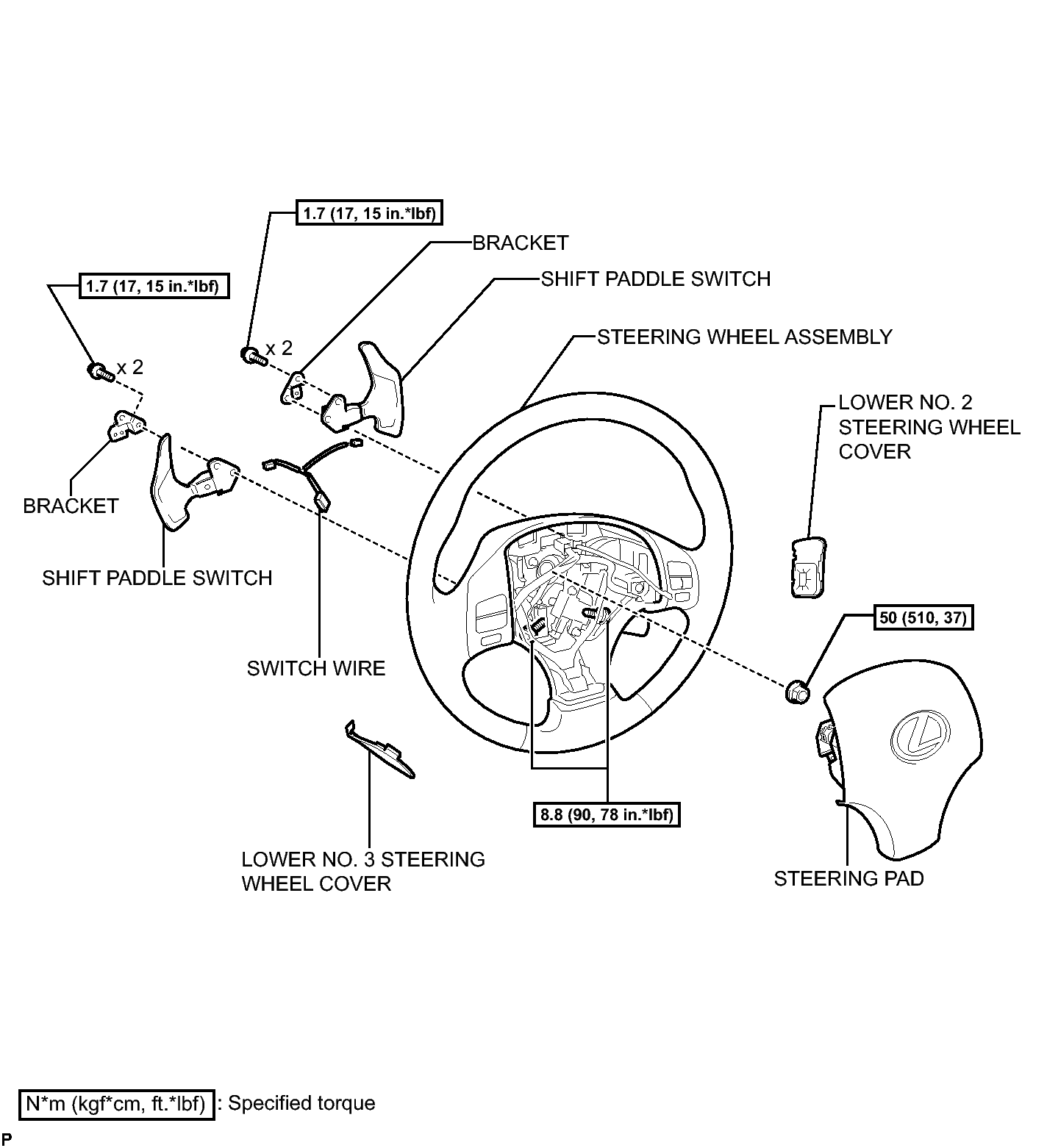

Fig 1: Identifying Shift Paddle Switch Replacement Components with Torque Specifications

GTY108955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
