Home >> Lexus >> 2012 >> IS F >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (Service Information) >> Transmission Control Switch >> Components >> Illustration

Transmission Control Switch: Components: Illustration

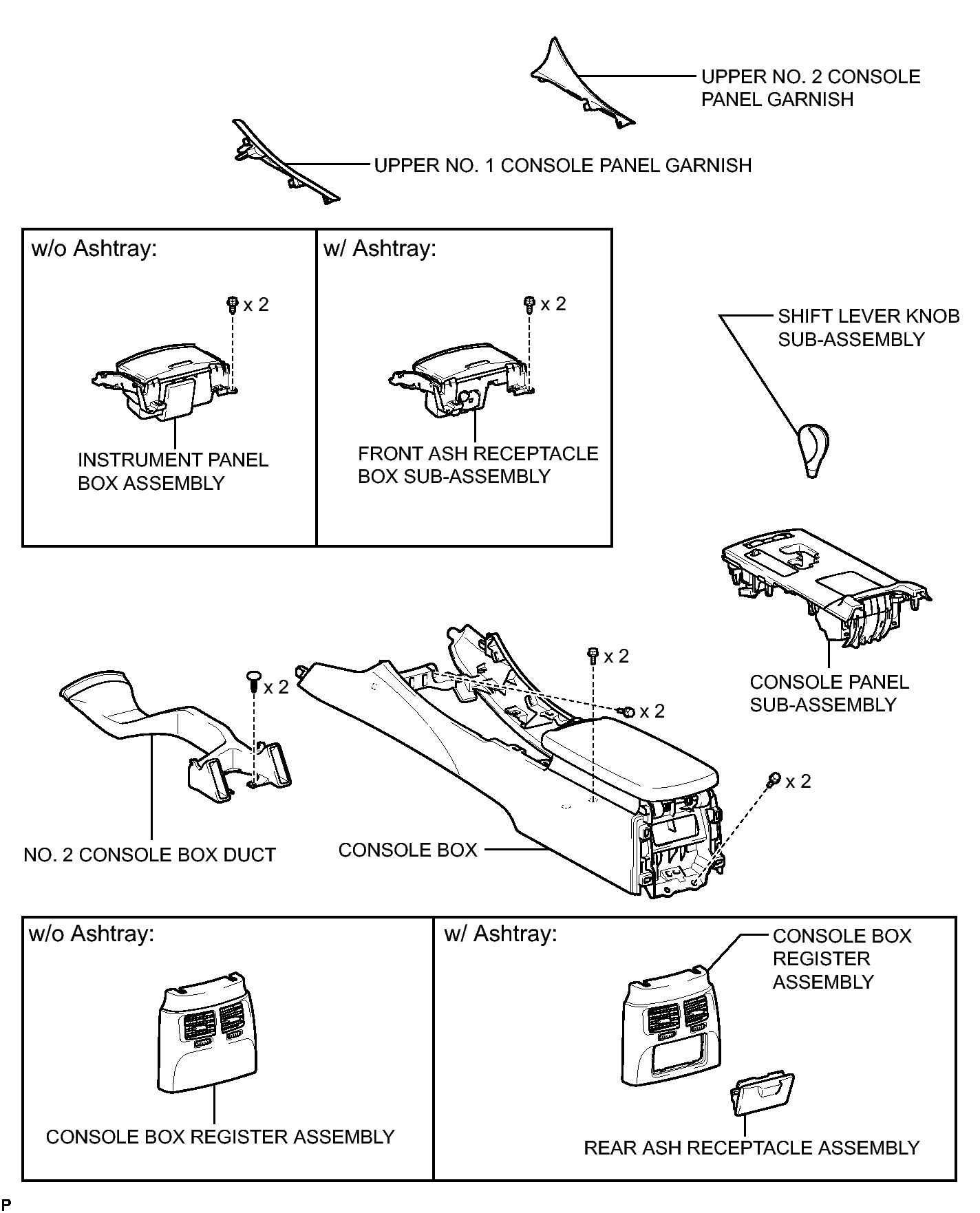

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)
GTY348841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

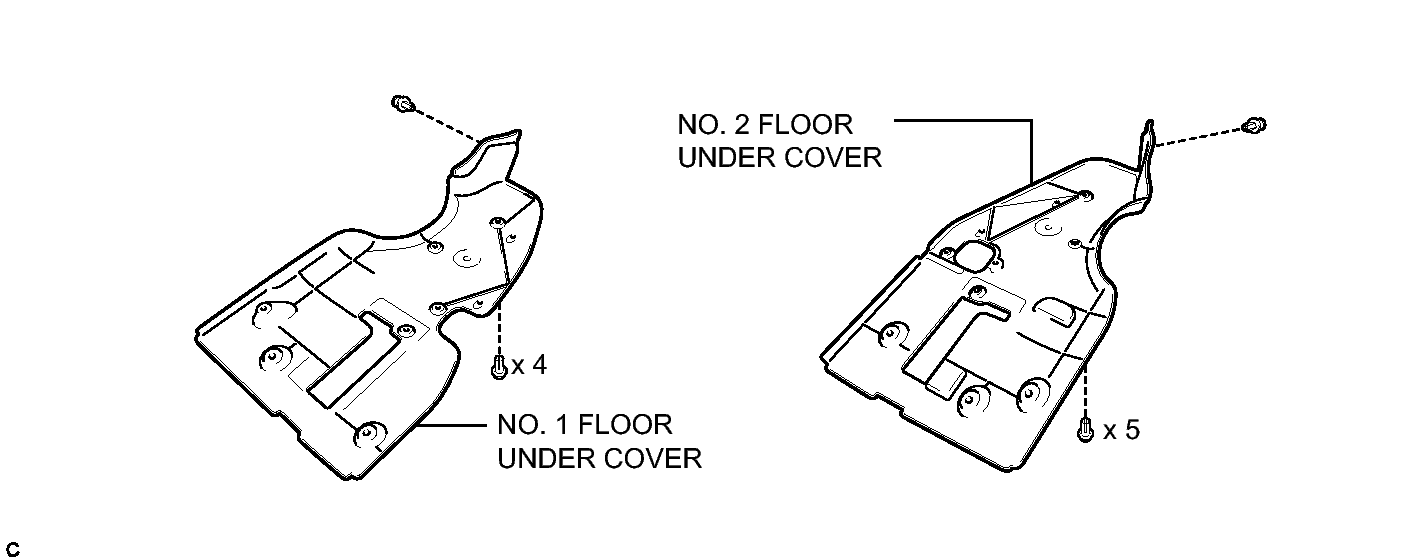

Fig 1: Identifying Transmission Control Switch Replacement Components (2 Of 4)
GTY149092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

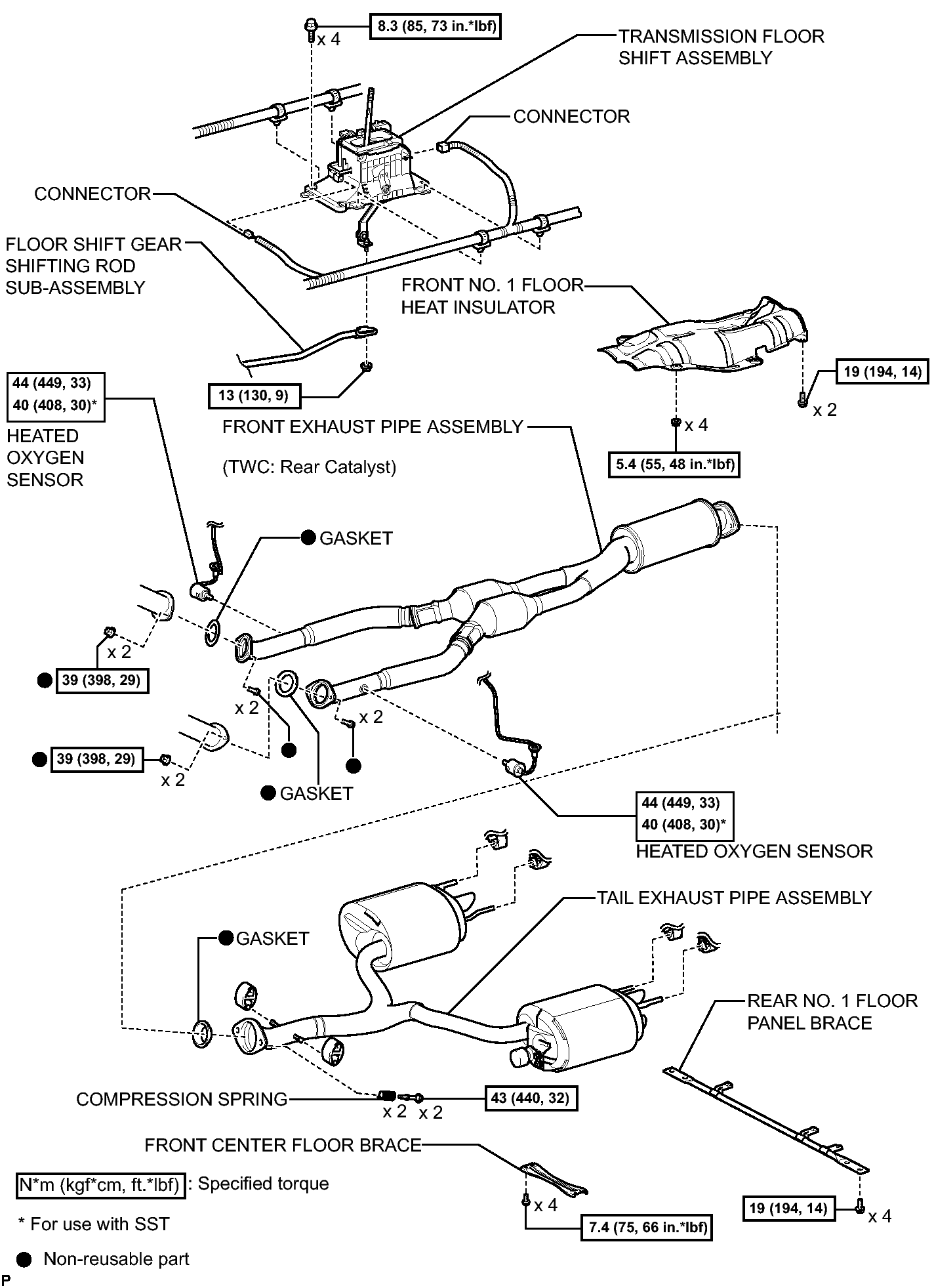

Fig 1: Identifying Transmission Control Switch Replacement Components With Torque Specifications (3 Of 4)
GTY357747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

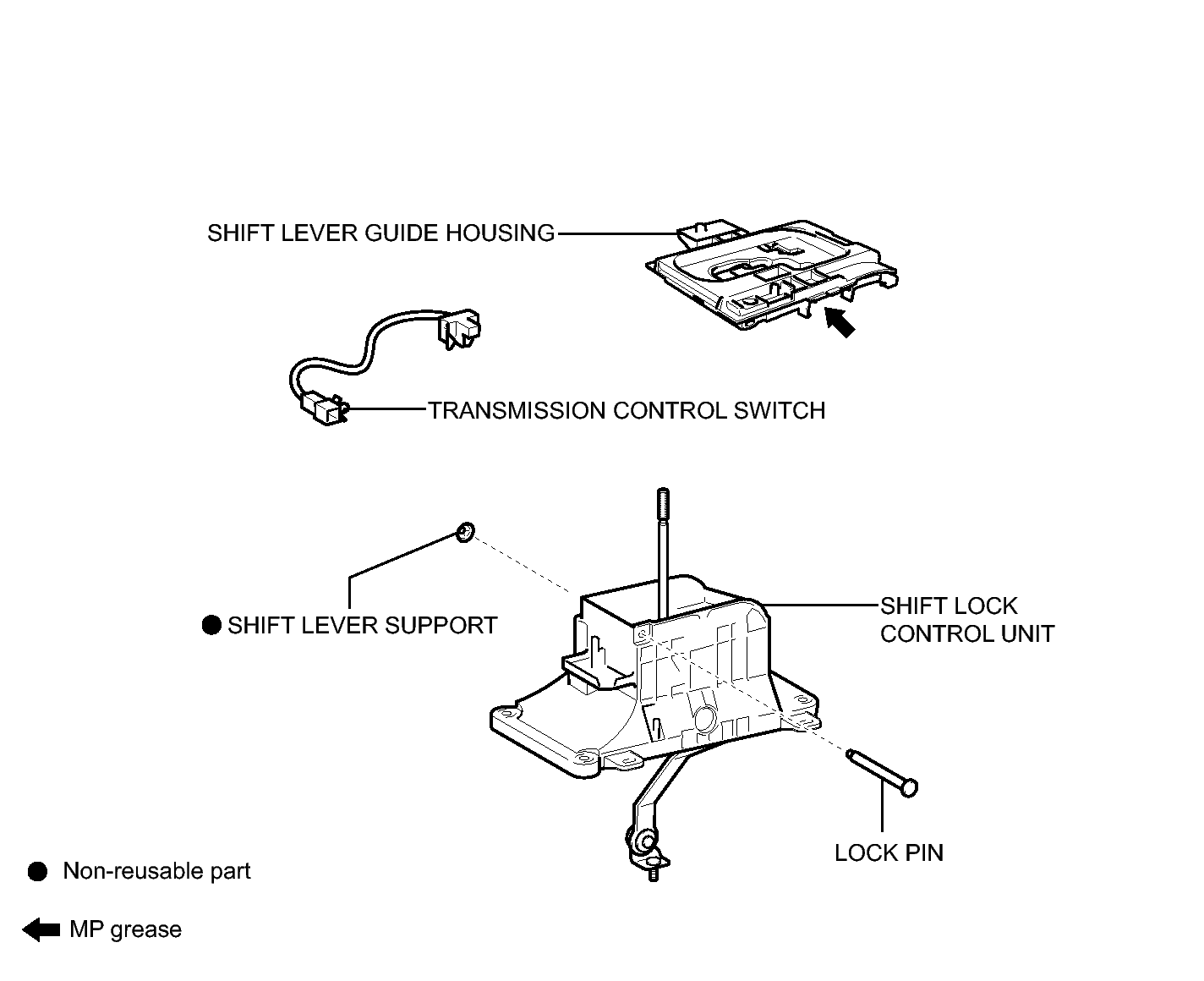

Fig 1: Identifying Transmission Control Switch Replacement Components (4 Of 4)
GTY135499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
