Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (For Fixed Seat Type) (1 Of 5)
GTY288301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

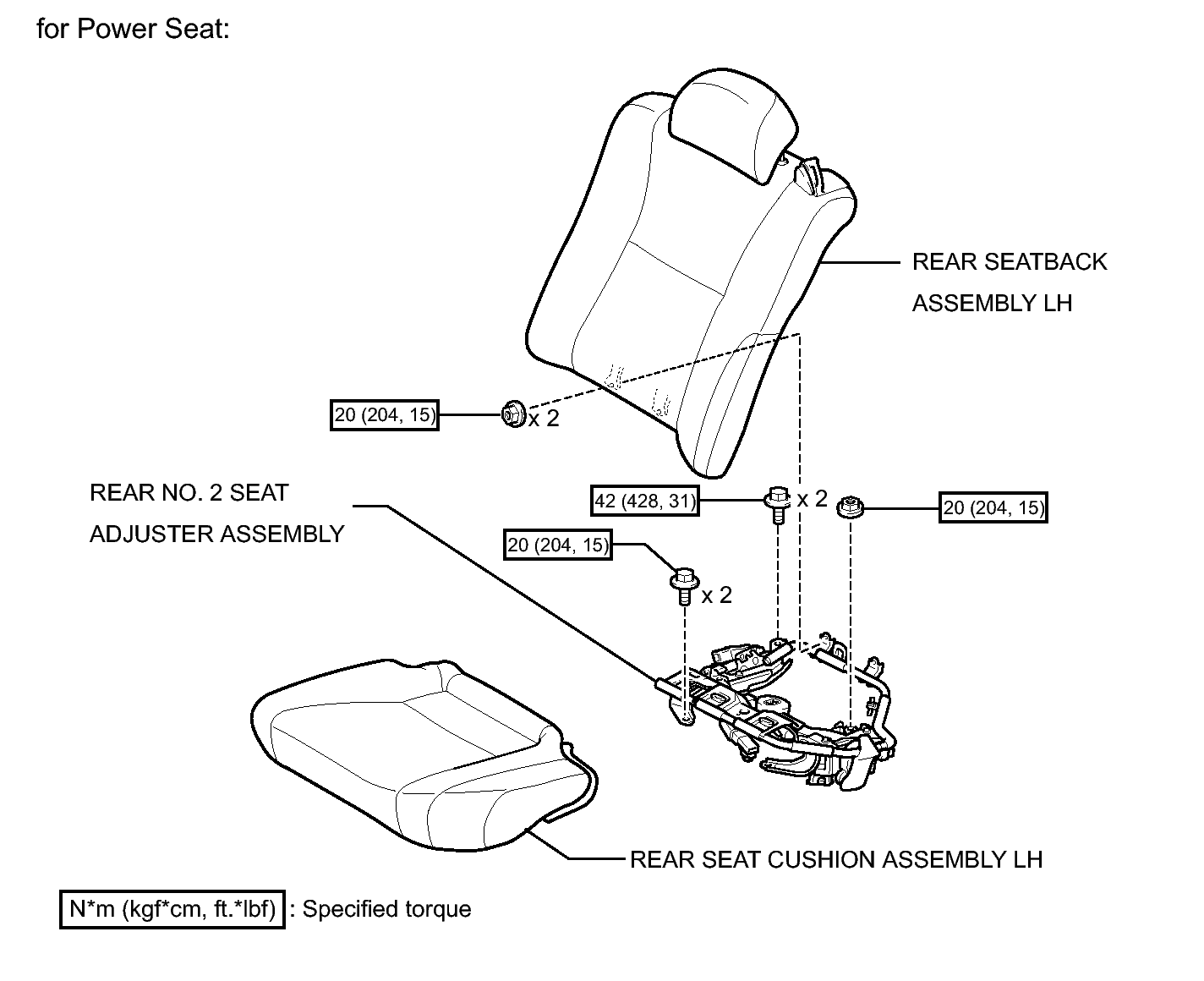

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (For Power Seat) (2 Of 5)
GTY288302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

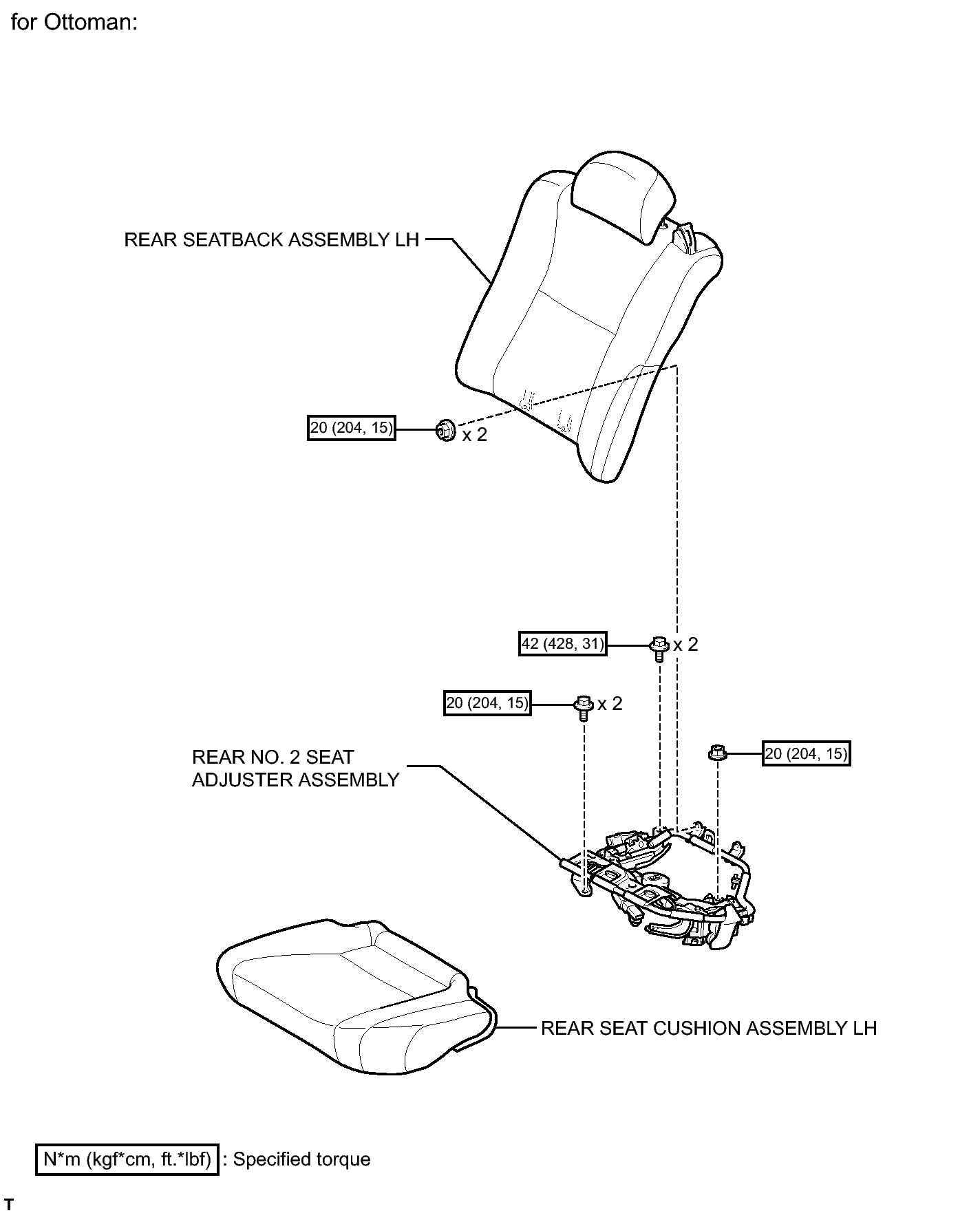

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (For Ottoman) (3 Of 5)
GTY288223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

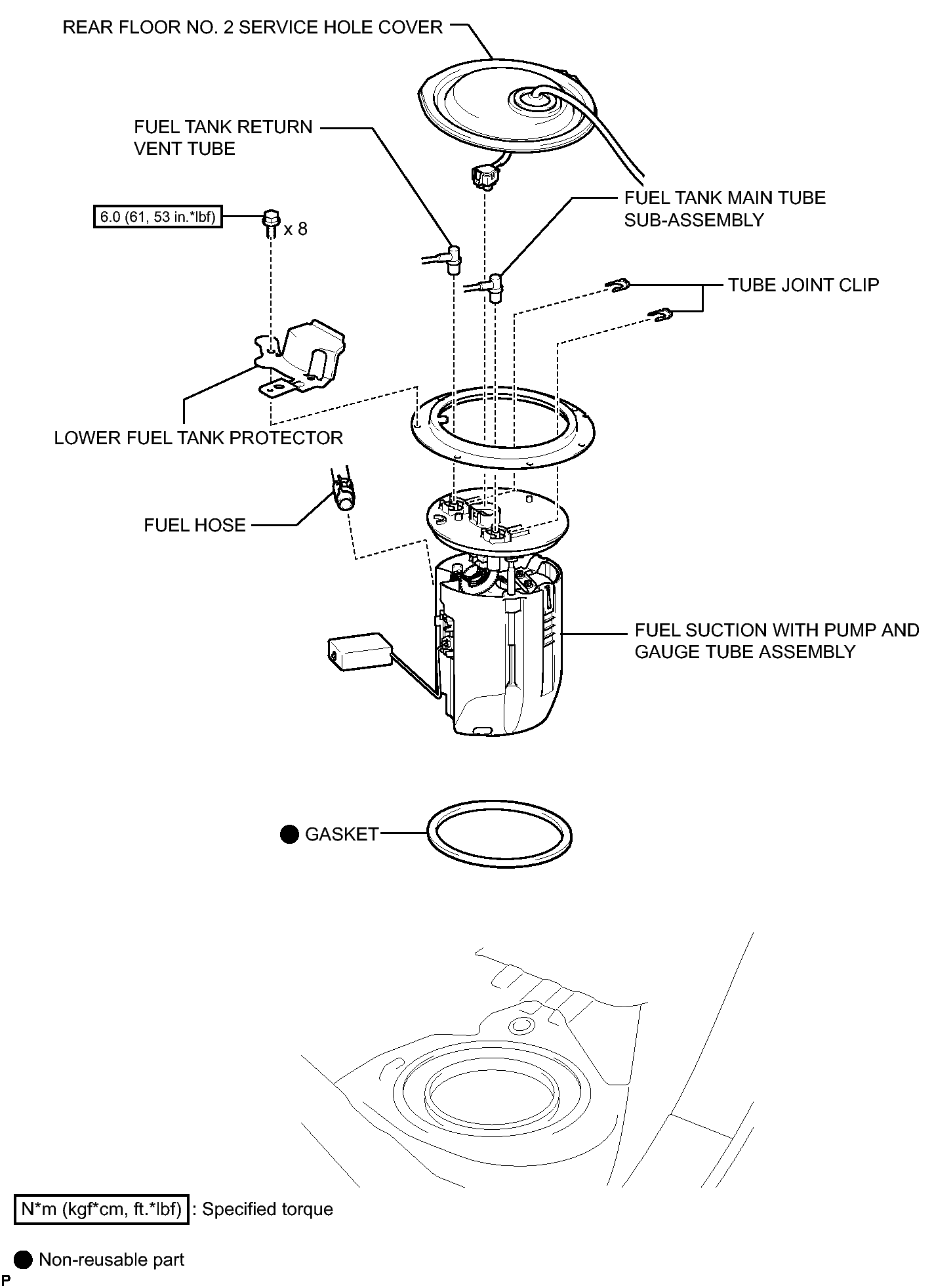

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (4 Of 5)
GTY288176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

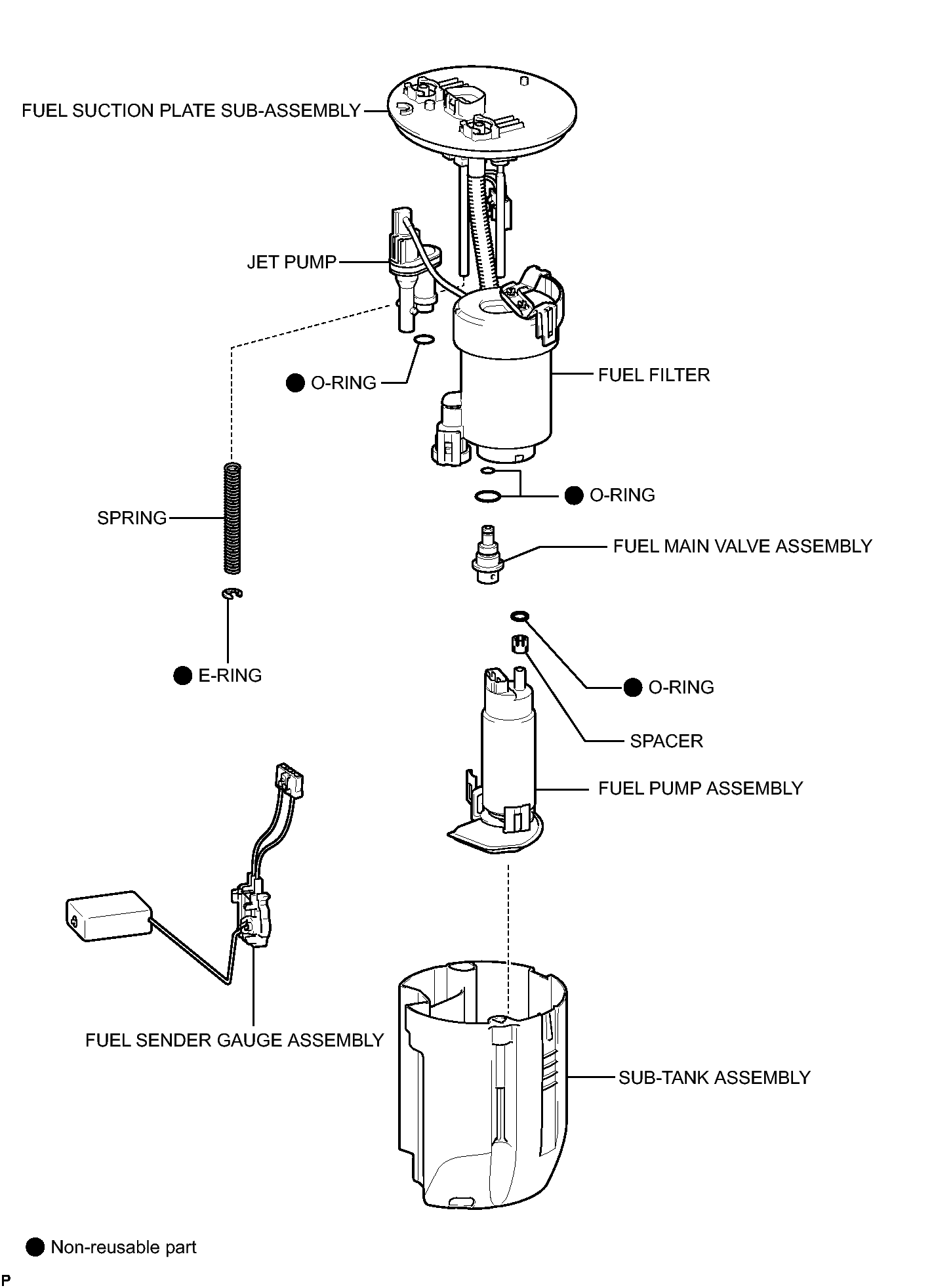

Fig 1: Identifying Fuel Pump Replacement Components (5 Of 5)
GTY280104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
