Height Control Compressor: Components: Illustration

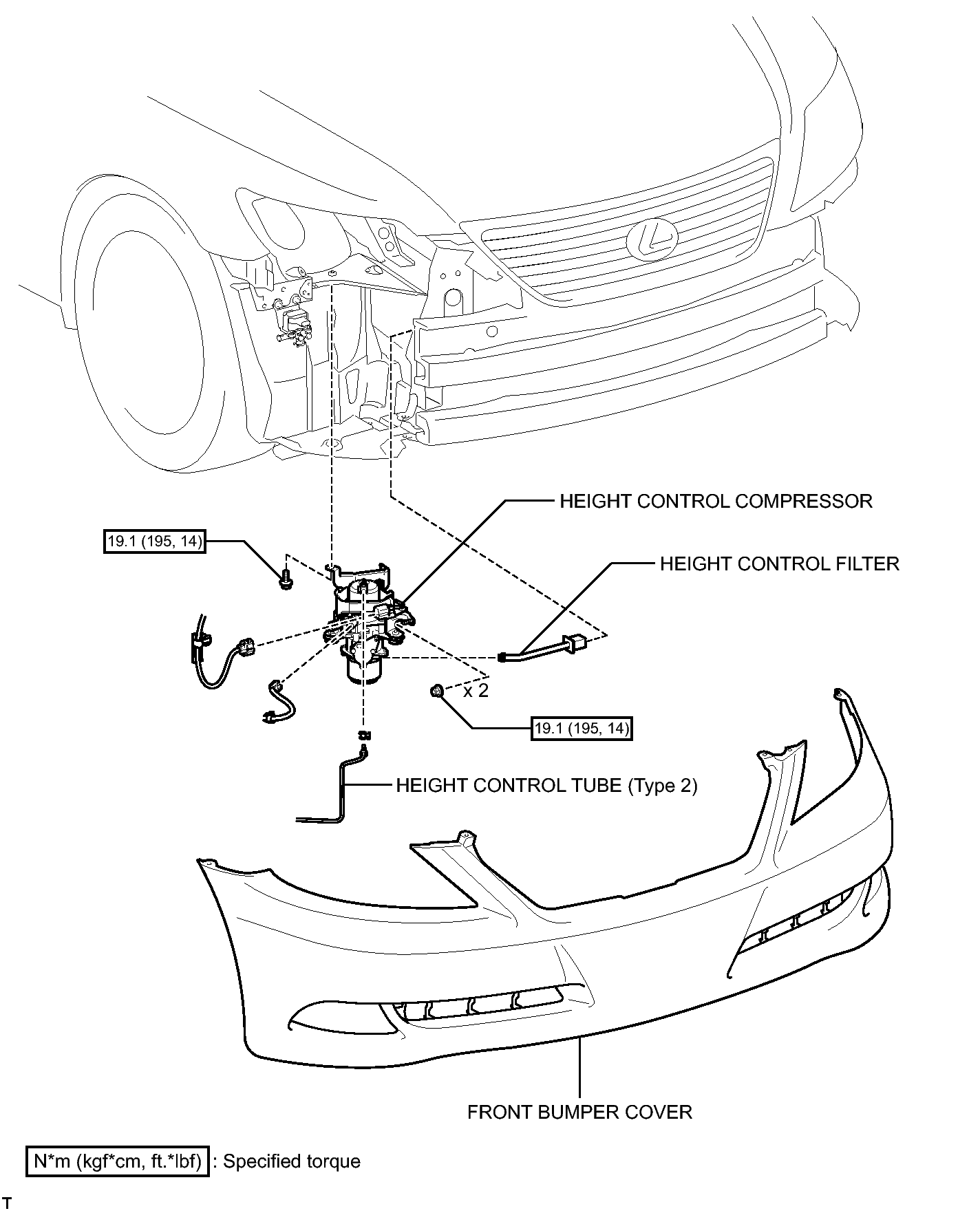

Fig 1: Identifying Height Control Compressor Replacement Components And Torque Specifications (1 Of 2)
GTY289041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

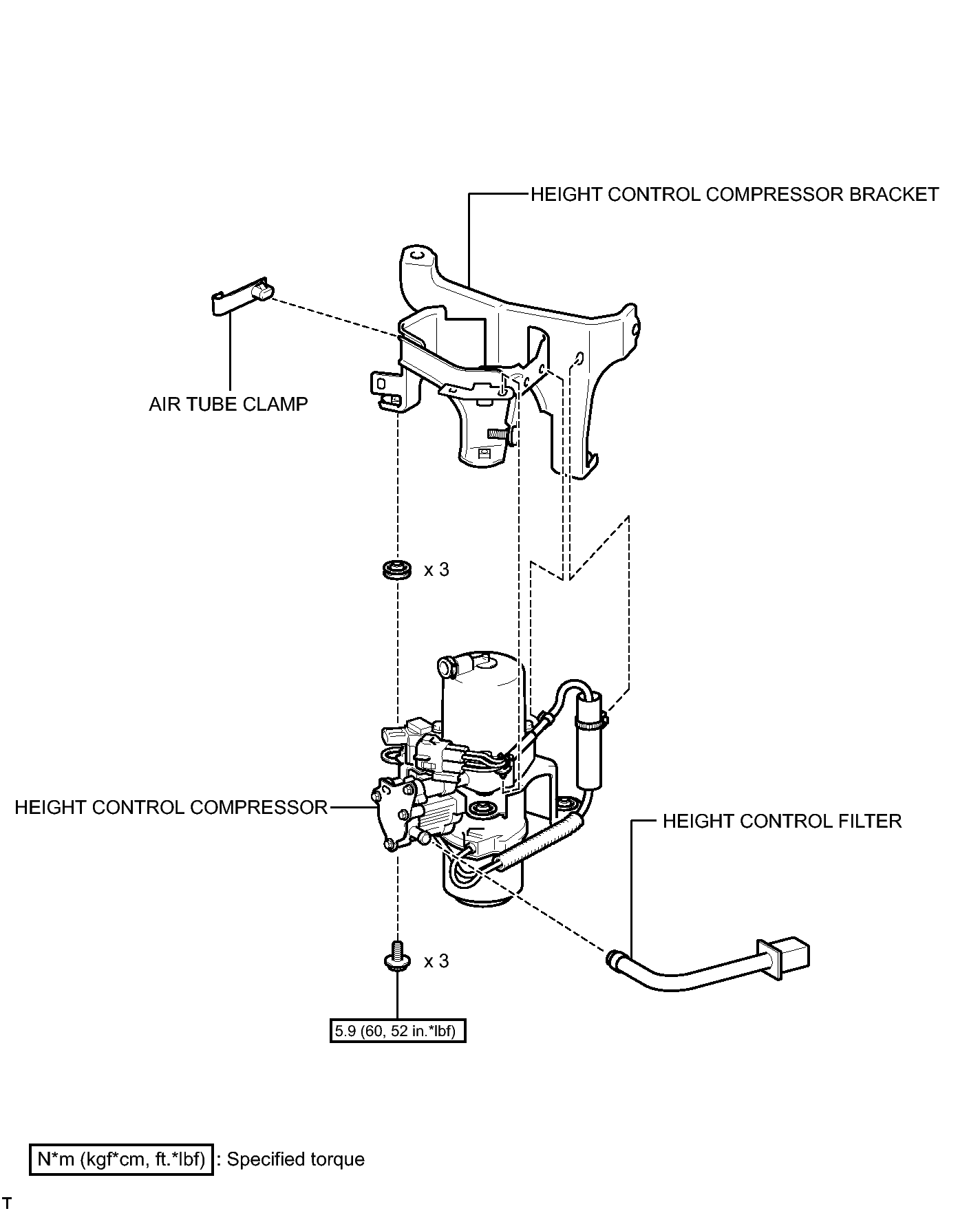

Fig 1: Identifying Height Control Compressor Replacement Components And Torque Specifications (2 Of 2)
GTY289042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
