Power Window: Notes

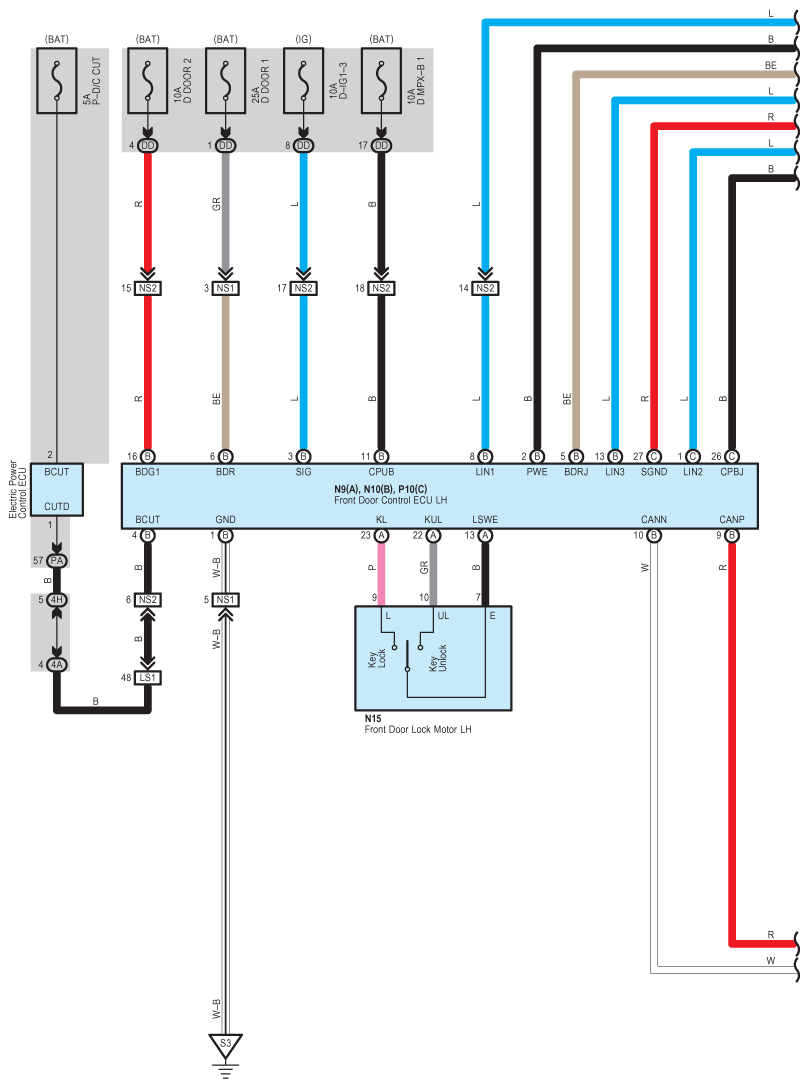

Fig 1: Power Window - Wiring Diagram (1 Of 8)

G08940696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

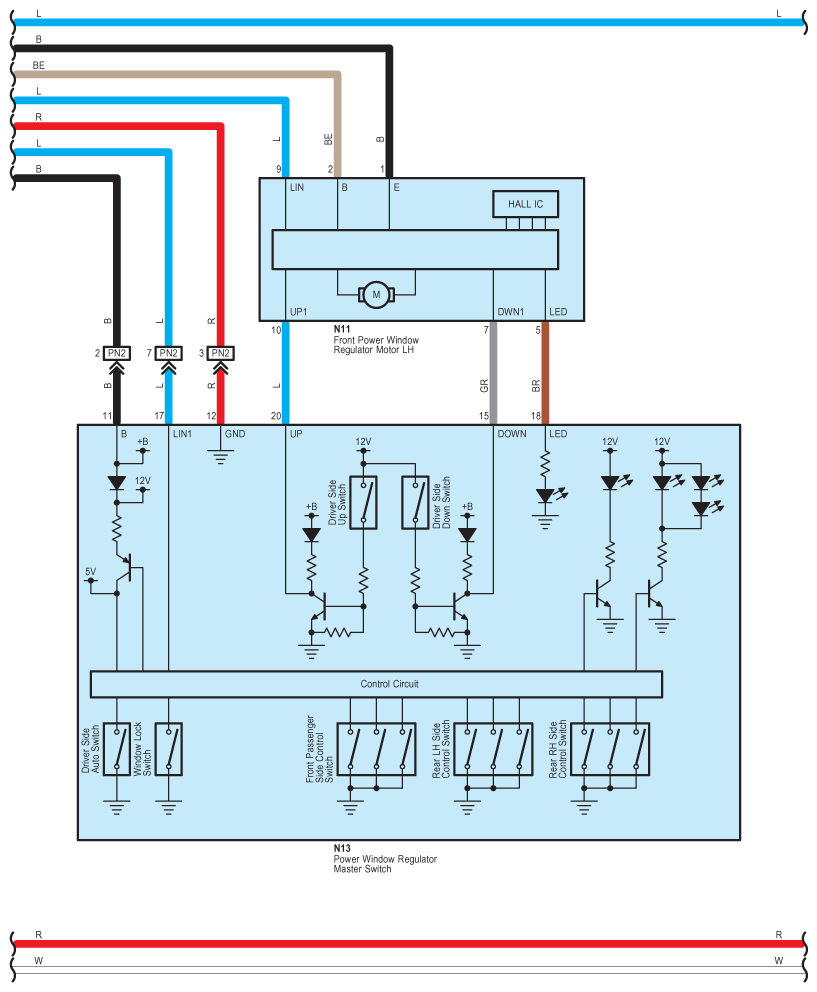

Fig 2: Power Window - Wiring Diagram (2 Of 8)

G08940697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

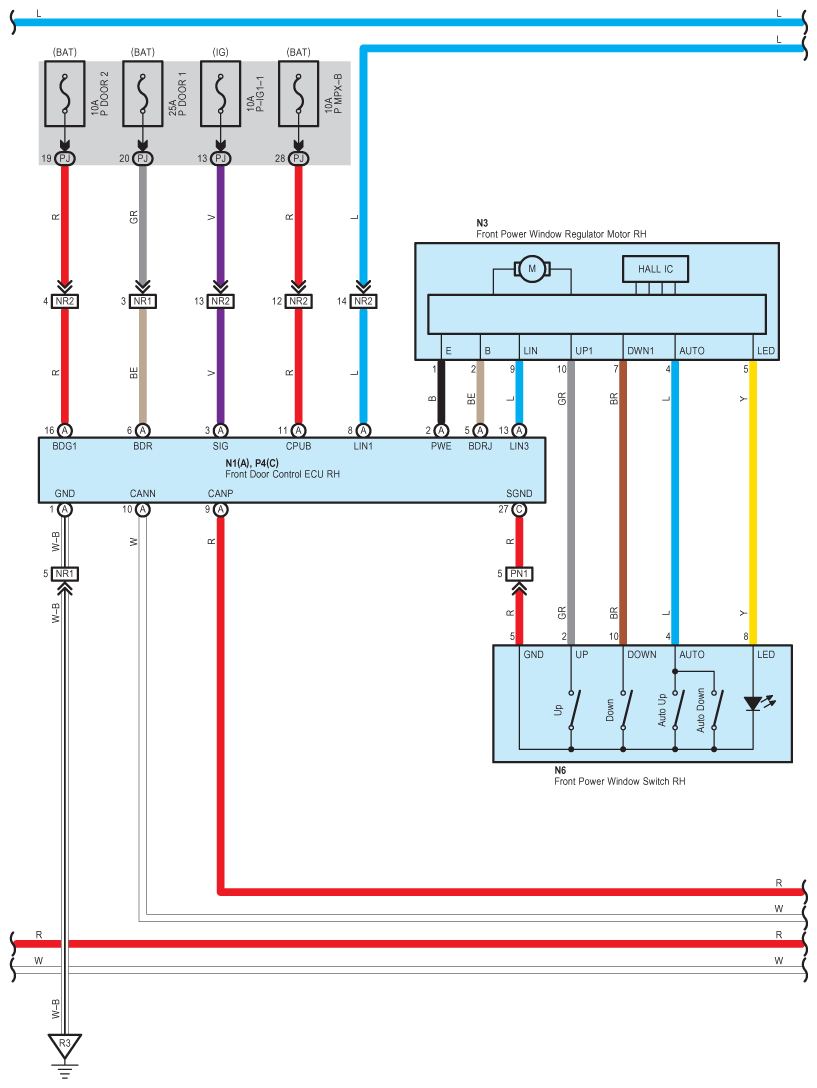

Fig 3: Power Window - Wiring Diagram (3 Of 8)

G08940698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

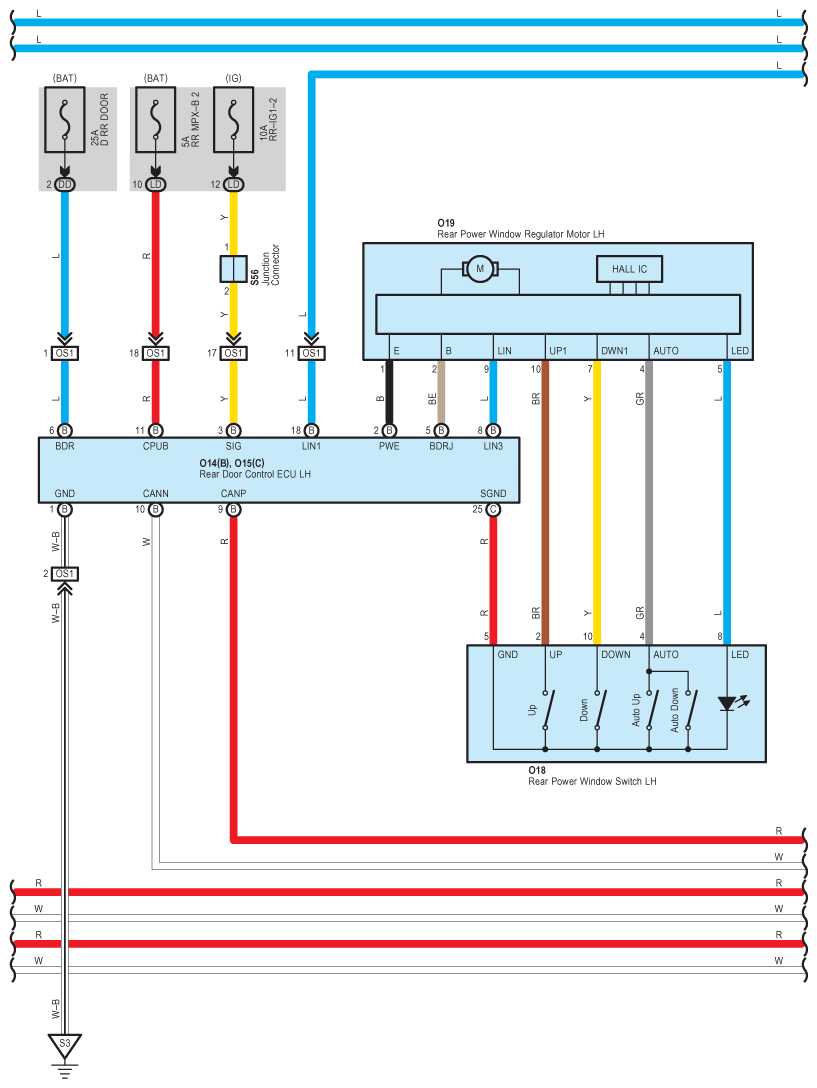

Fig 4: Power Window - Wiring Diagram (4 Of 8)

G08940699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

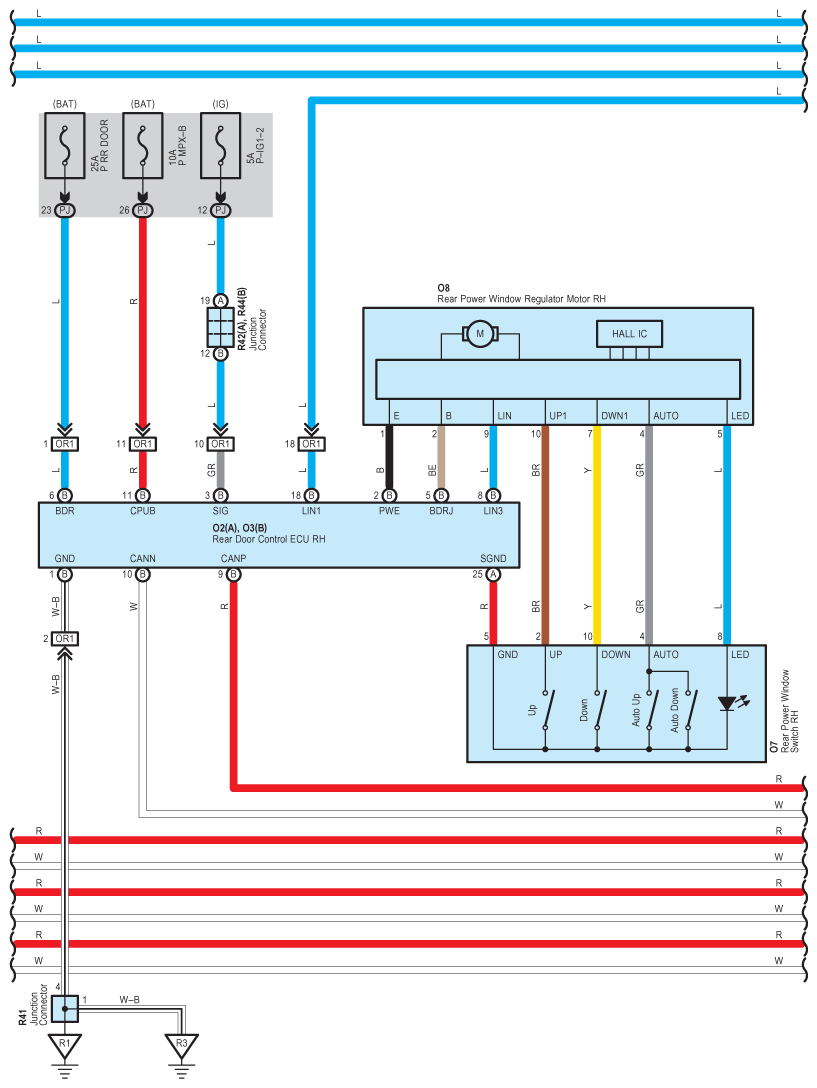

Fig 5: Power Window - Wiring Diagram (5 Of 8)

G08940700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

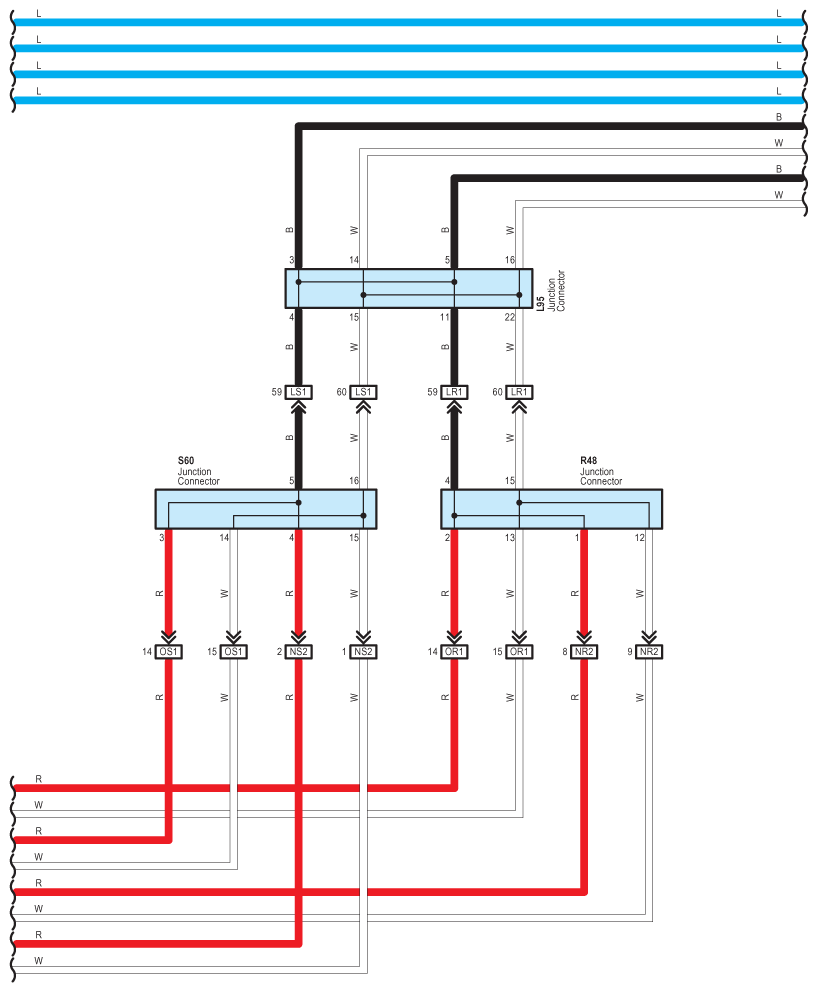

Fig 6: Power Window - Wiring Diagram (6 Of 8)

G08940701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

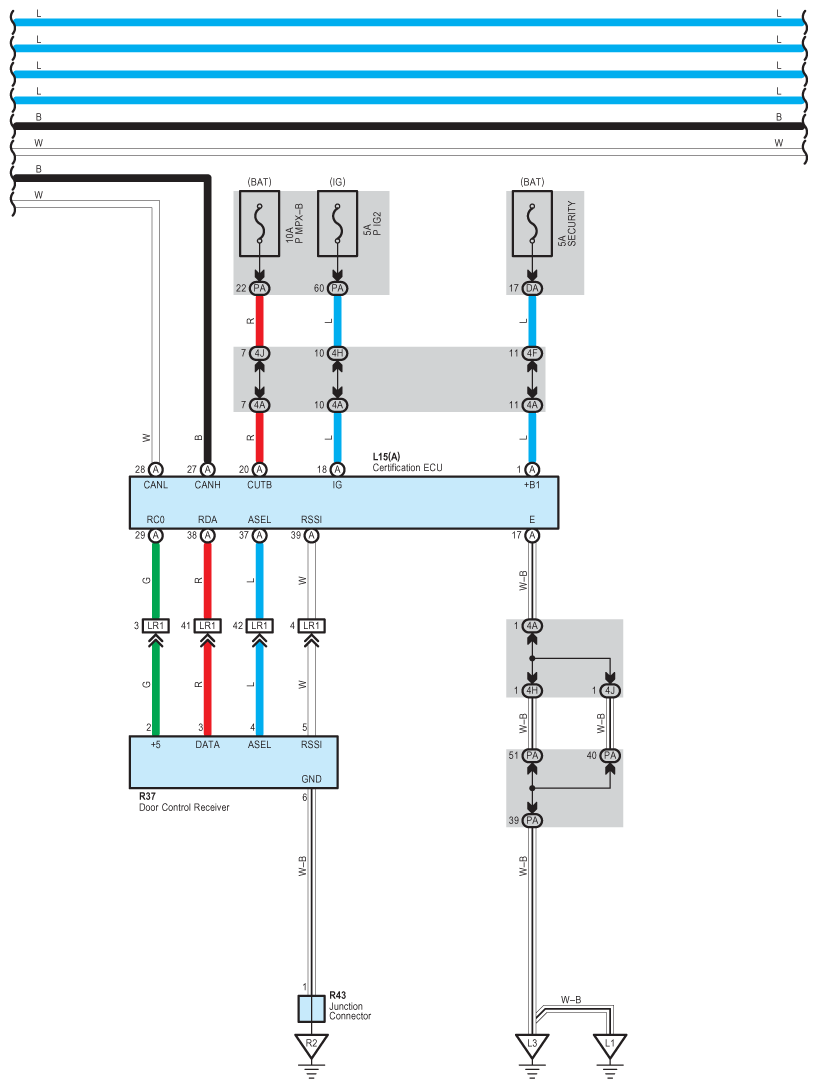

Fig 7: Power Window - Wiring Diagram (7 Of 8)

G08940702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

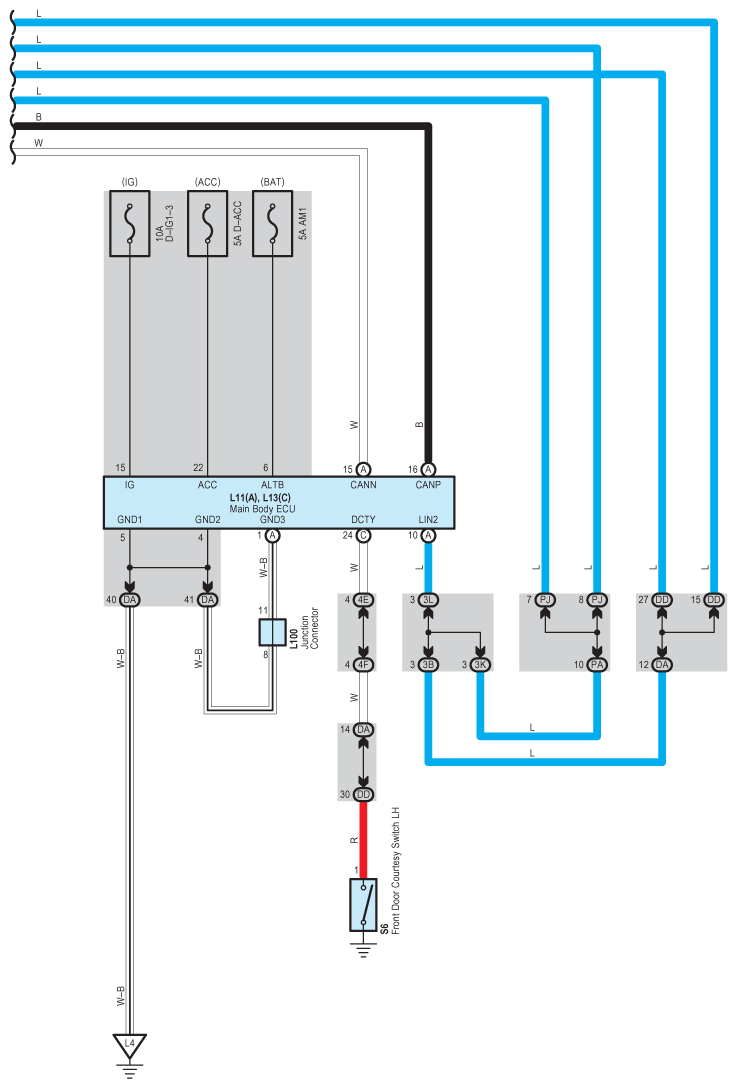

Fig 8: Power Window - Wiring Diagram (8 Of 8)

G08940703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
