Sliding Roof: Notes

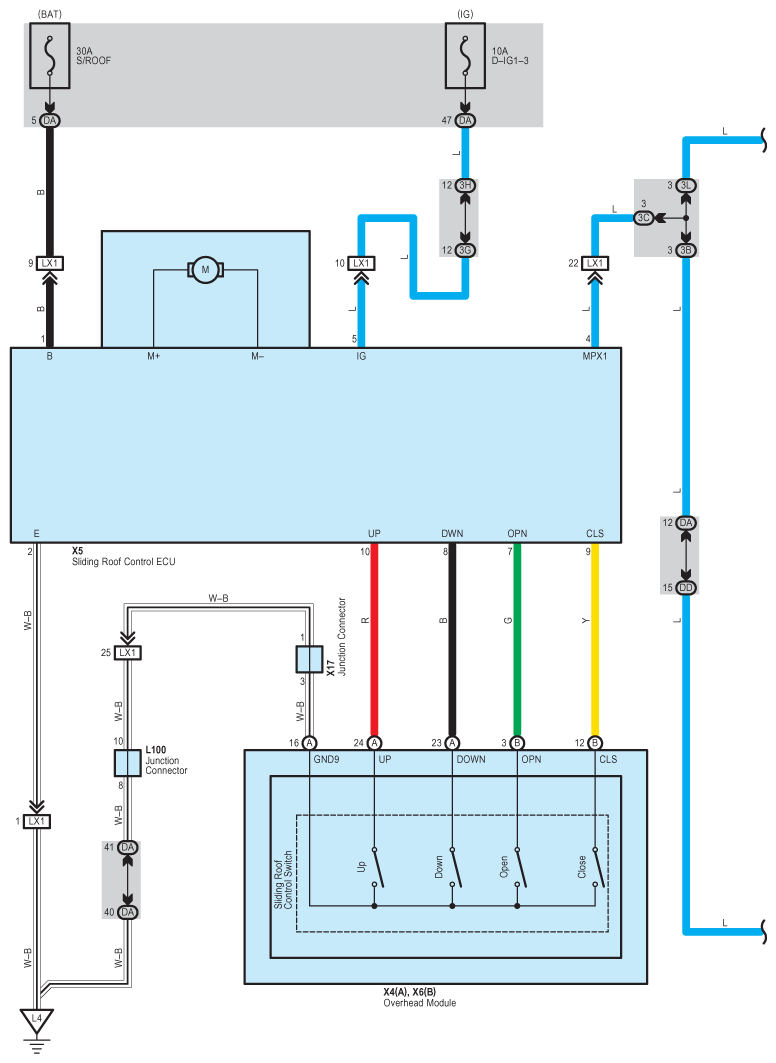

Fig 1: Sliding Roof - Wiring Diagram (1 Of 4)
G08940857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

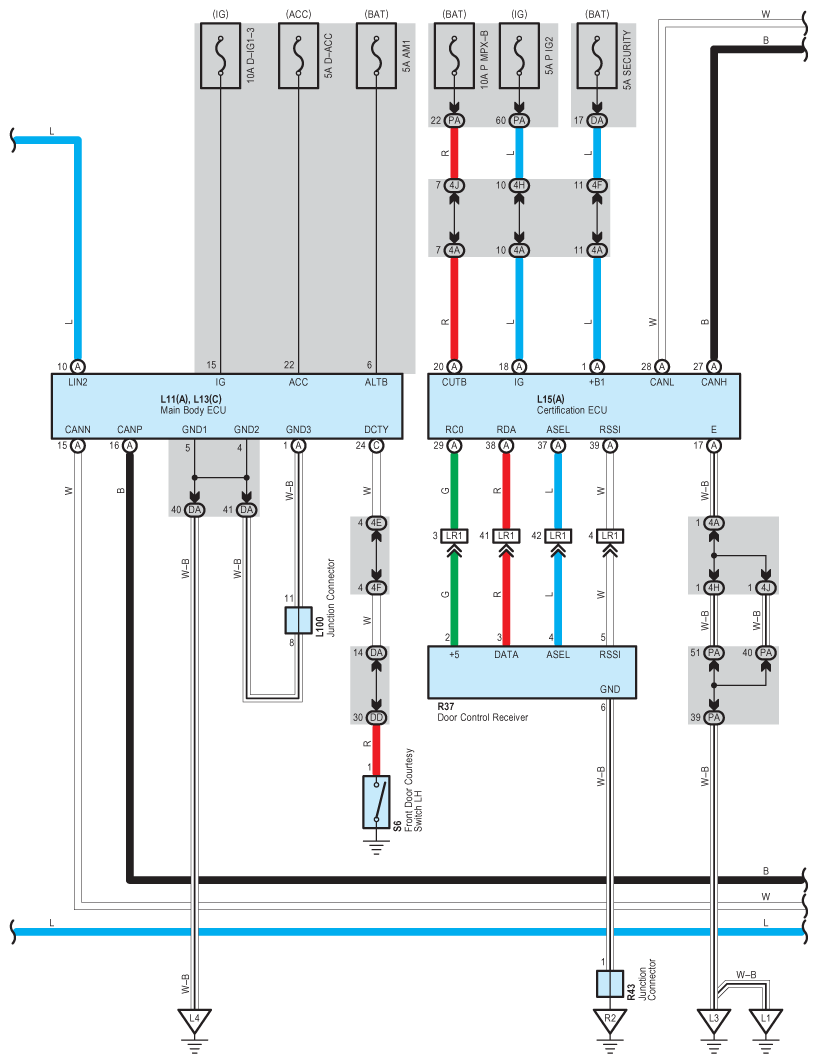

Fig 2: Sliding Roof - Wiring Diagram (2 Of 4)
G08940858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

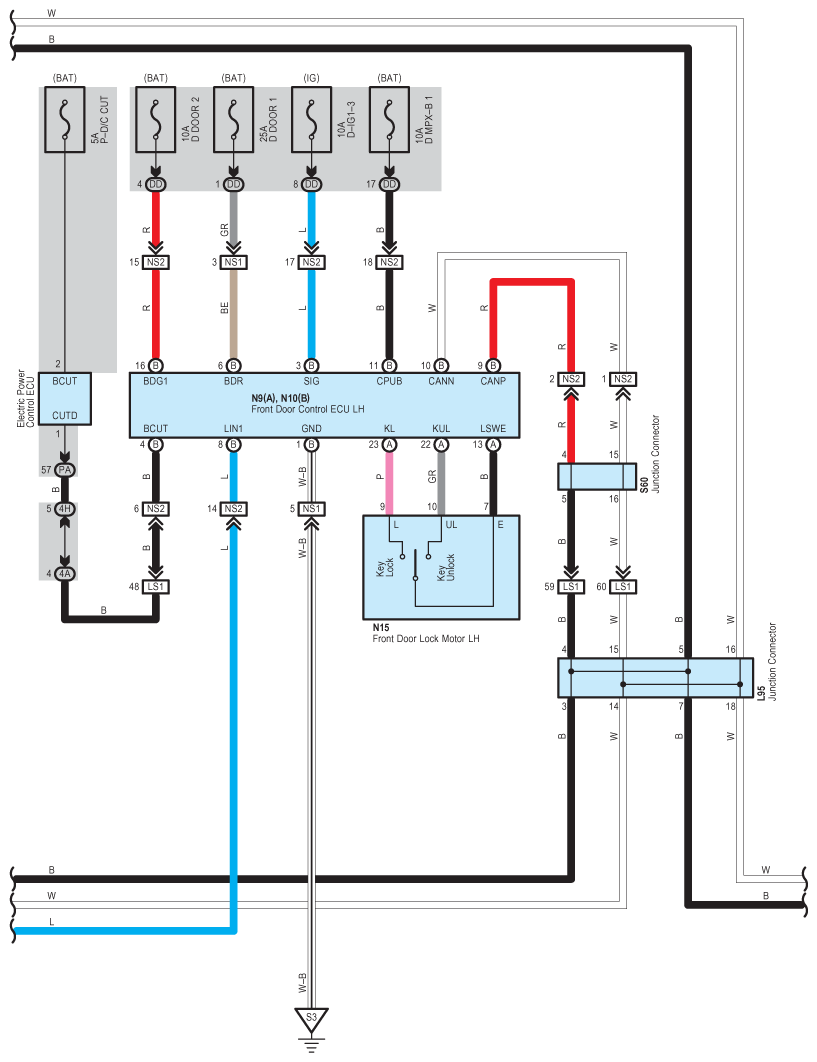

Fig 3: Sliding Roof - Wiring Diagram (3 Of 4)
G08940859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

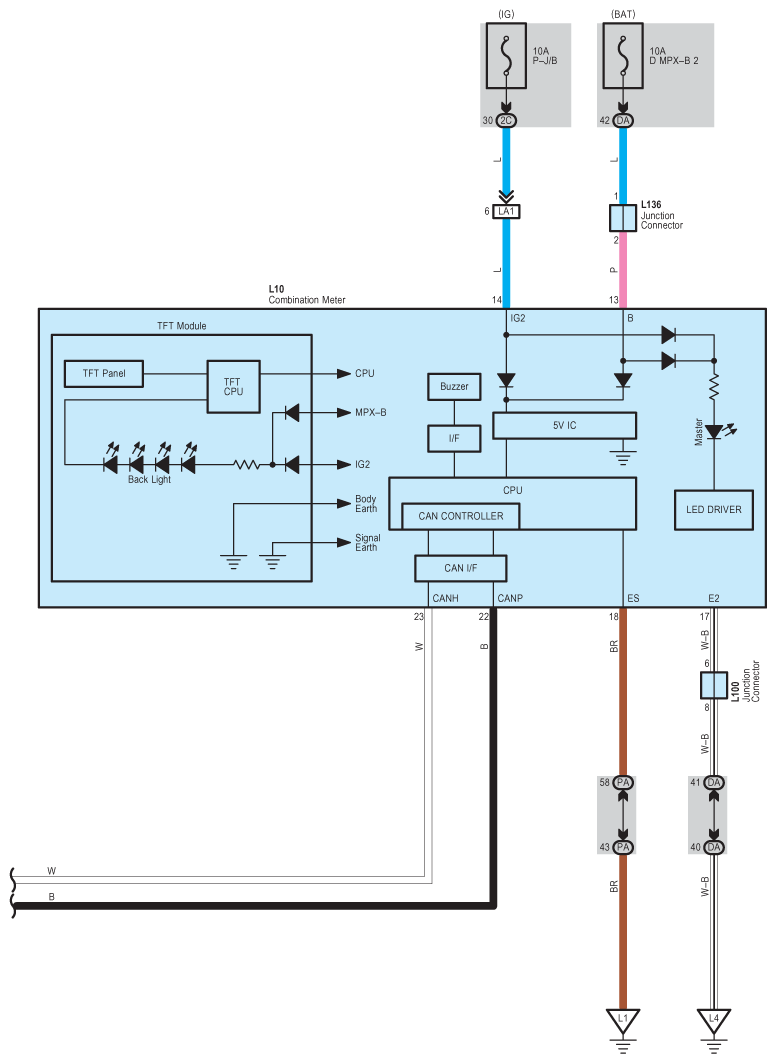

Fig 4: Sliding Roof - Wiring Diagram (4 Of 4)
G08940860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
