Power Window Master Switch: Installation: Installation

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Install the power window regulator master switch with the 3 screws.

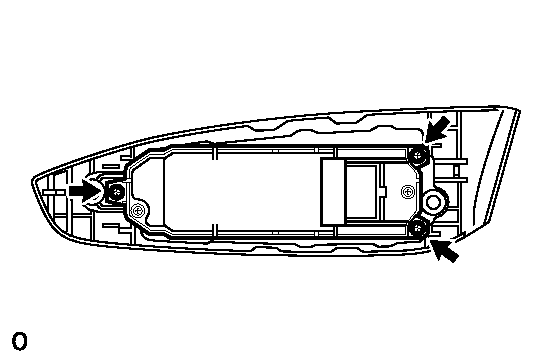

      Fig 1: Power Window Regulator Master Switch Assembly Screws
      GTY135083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

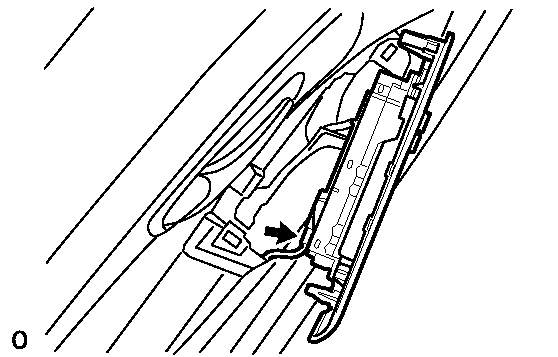

      Fig 2: Locating Connector
      GTY142883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 clips to install the armrest base panel assembly.

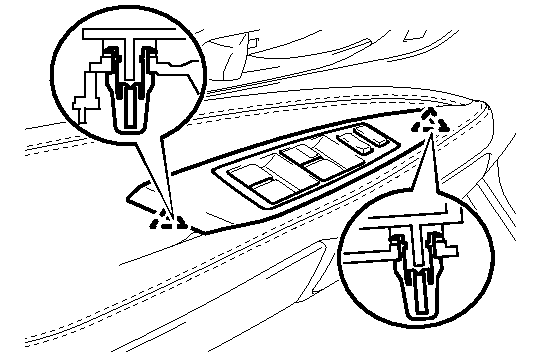

      Fig 3: Identifying Master Switch Assembly Clips
      GTY116917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
