Door Closer: Notes

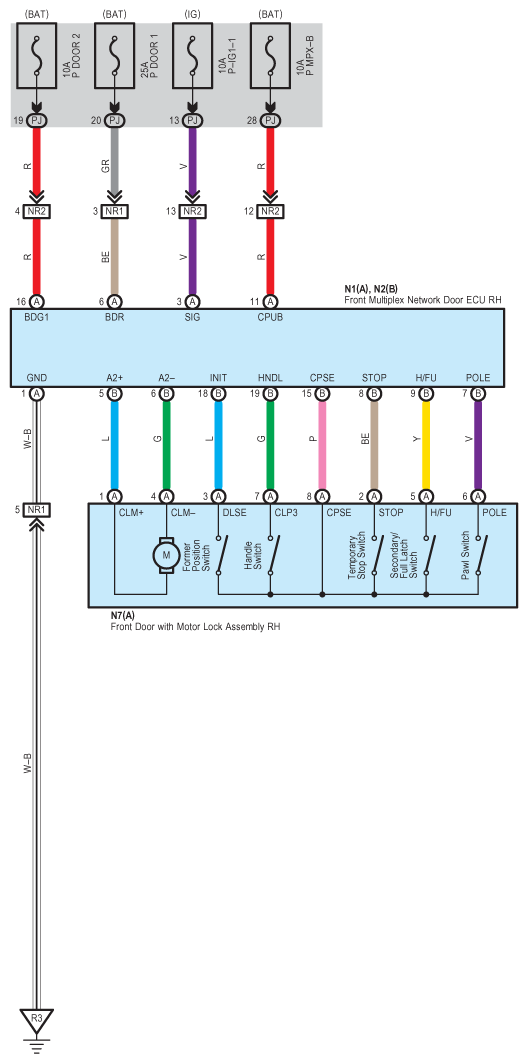

Fig 1: Door Closer - Wiring Diagram (1 Of 4)
G08936836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

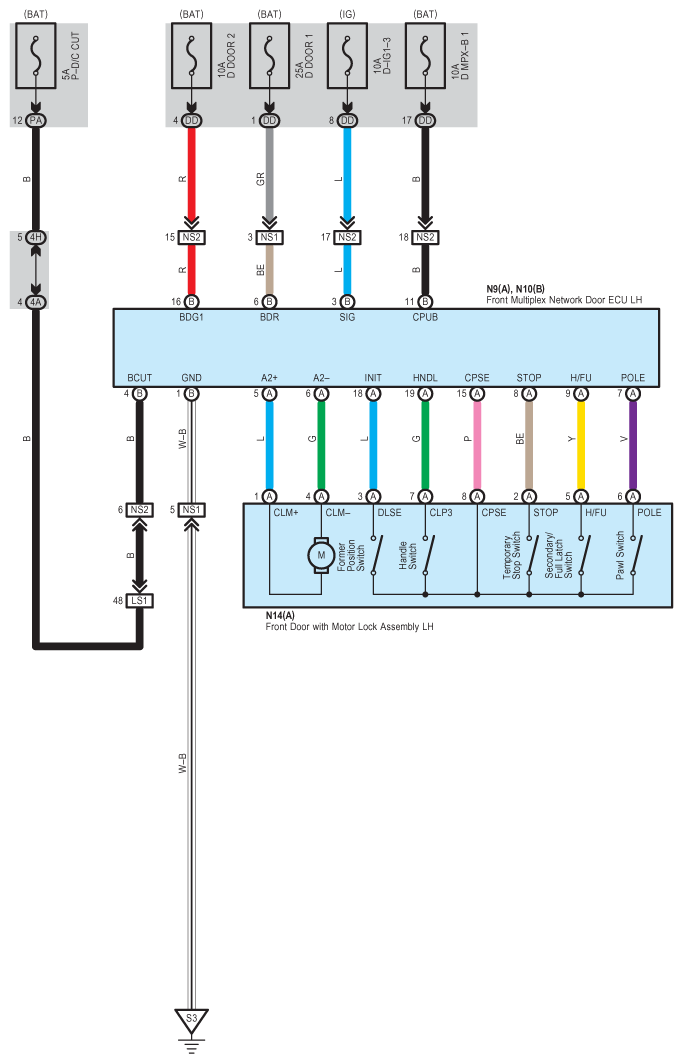

Fig 2: Door Closer - Wiring Diagram (2 Of 4)
G08936837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

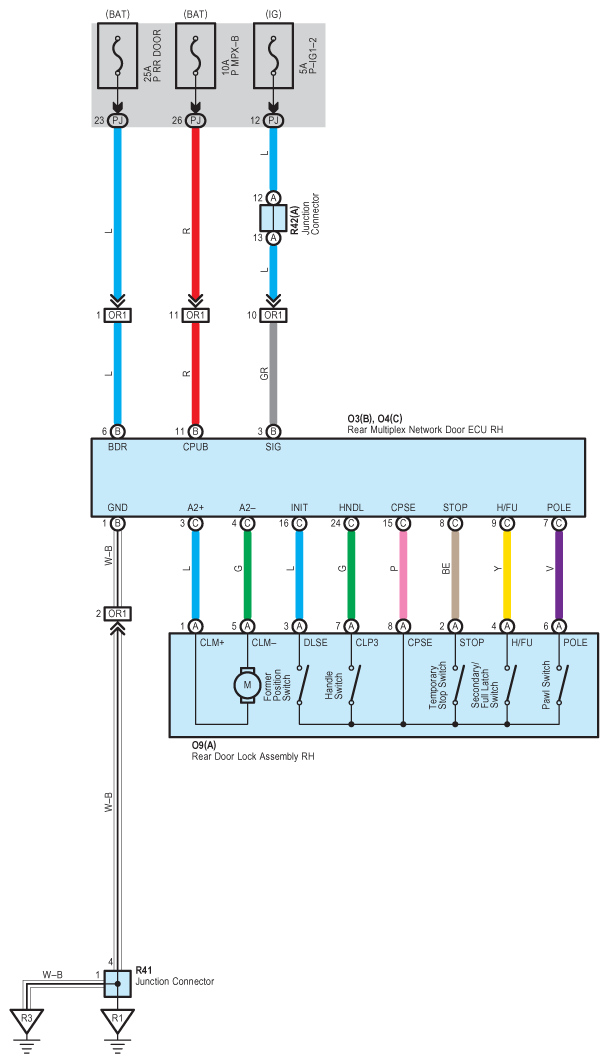

Fig 3: Door Closer - Wiring Diagram (3 Of 4)
G08936838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

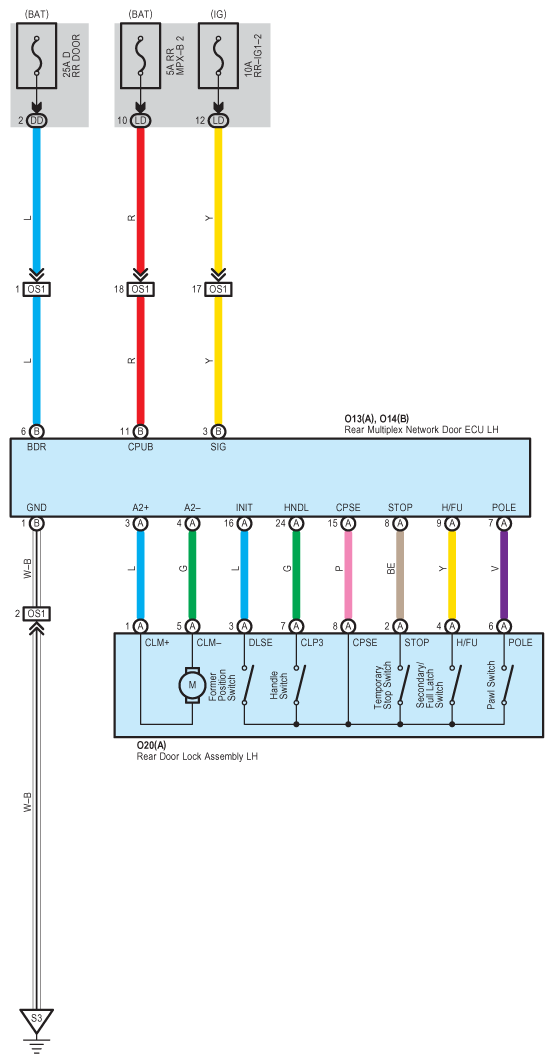

Fig 4: Door Closer - Wiring Diagram (4 Of 4)
G08936839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
