Home >> Lexus >> 2012 >> LS 600hL >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Garage Door Opener >> Notes

Garage Door Opener: Notes

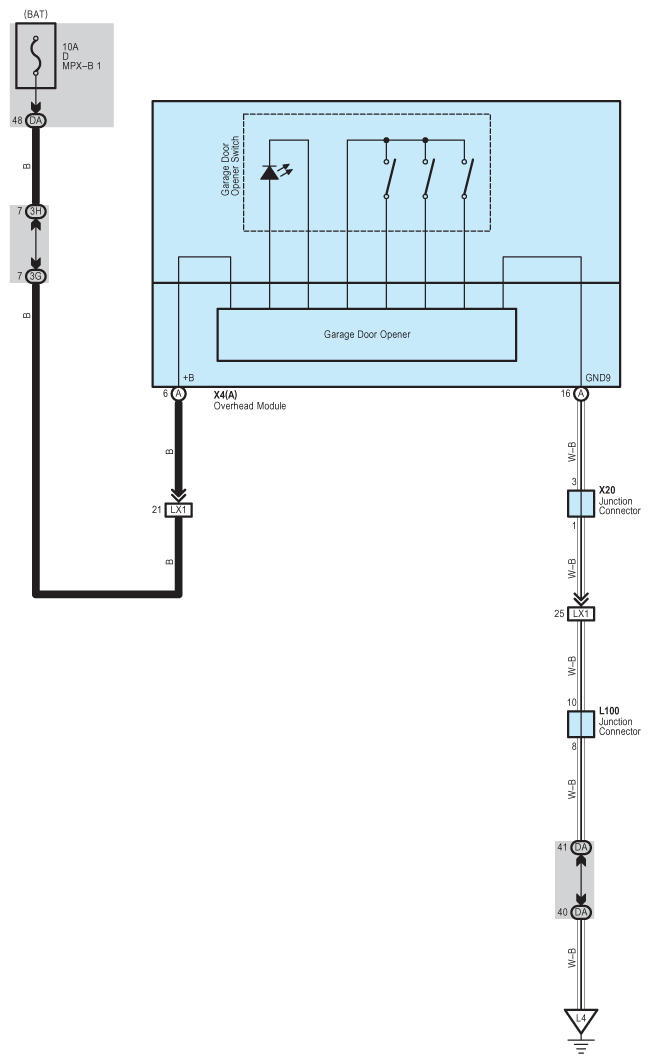

Fig 1: Garage Door Opener - Wiring Diagram
G08937041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
