Power Outlet (115V): Notes

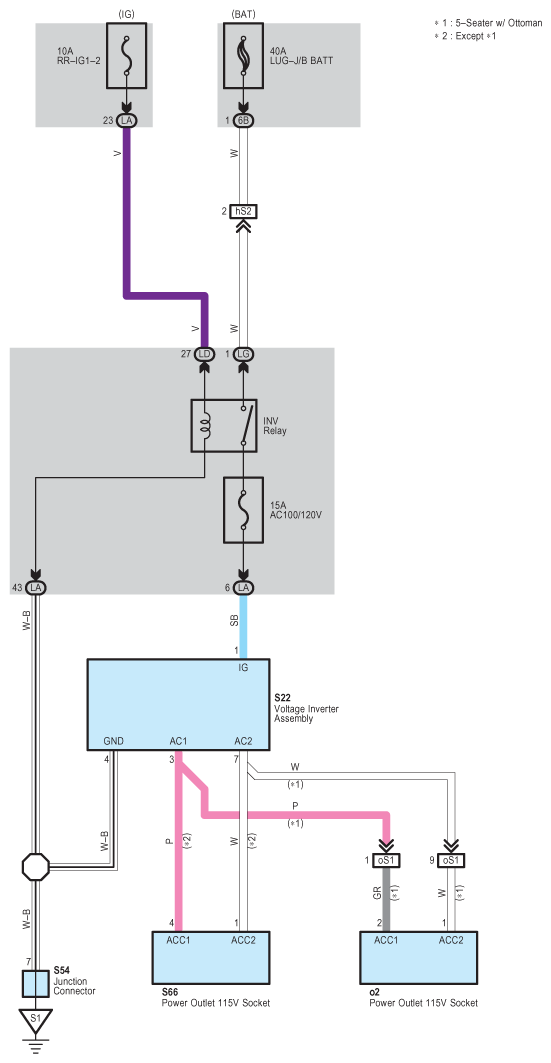

Fig 1: Power Outlet (115V) - Wiring Diagram
G08937043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
