Tire Pressure Warning System: Notes

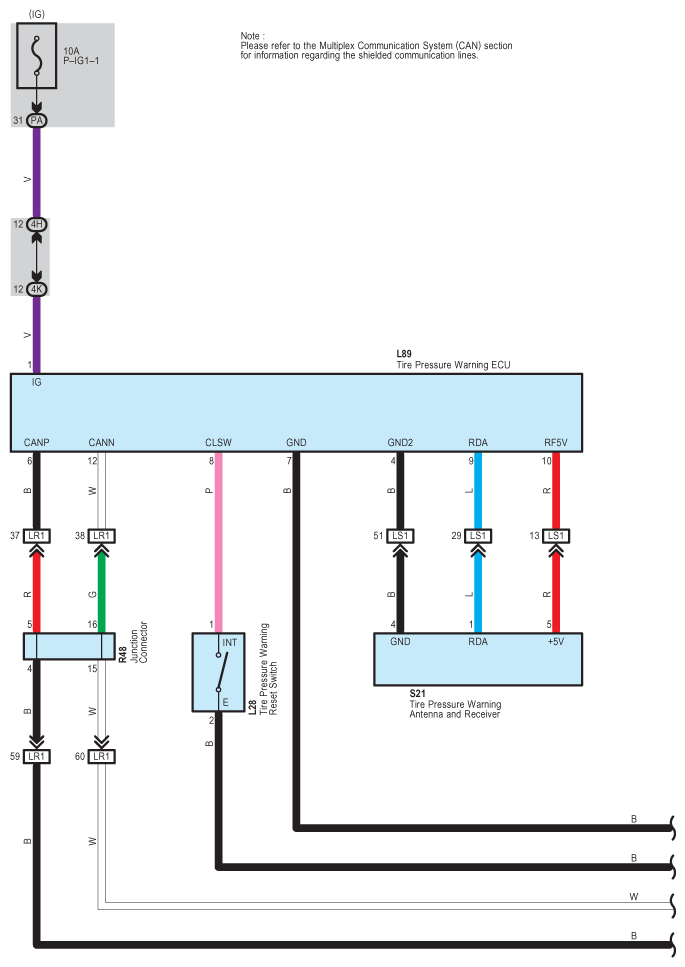

Fig 1: Tire Pressure Warning System - Wiring Diagram (1 Of 3)
G08936975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

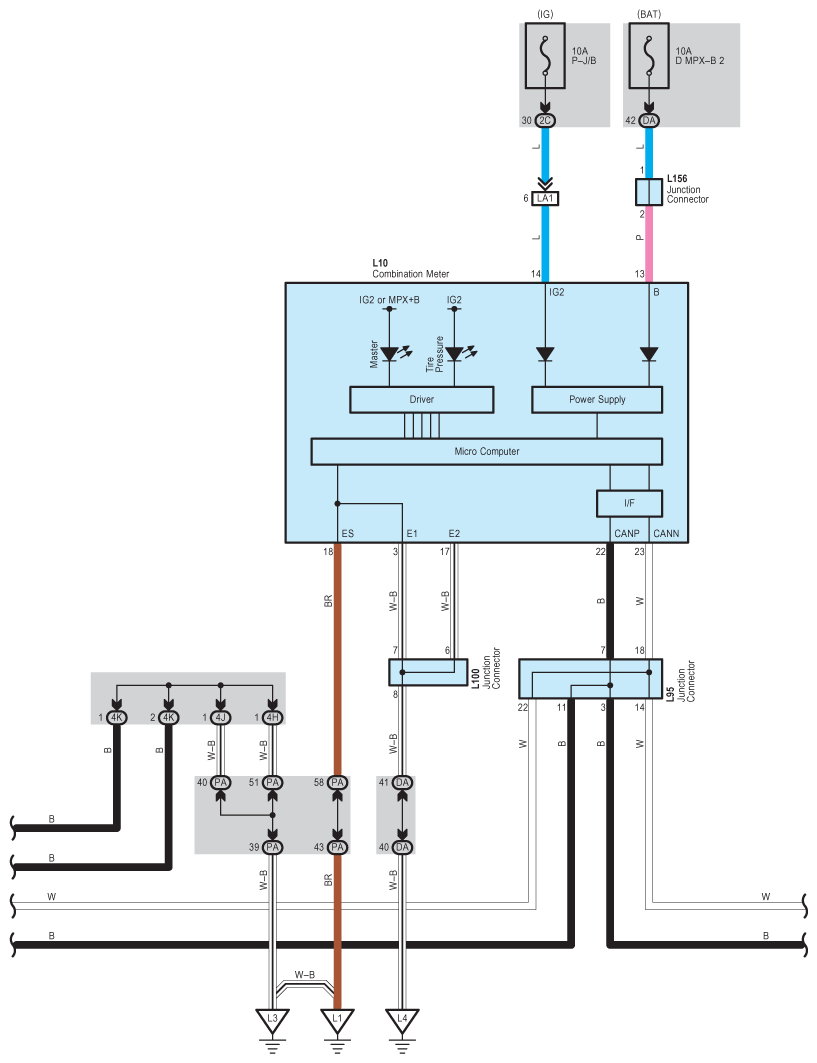

Fig 2: Tire Pressure Warning System - Wiring Diagram (2 Of 3)
G08936976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

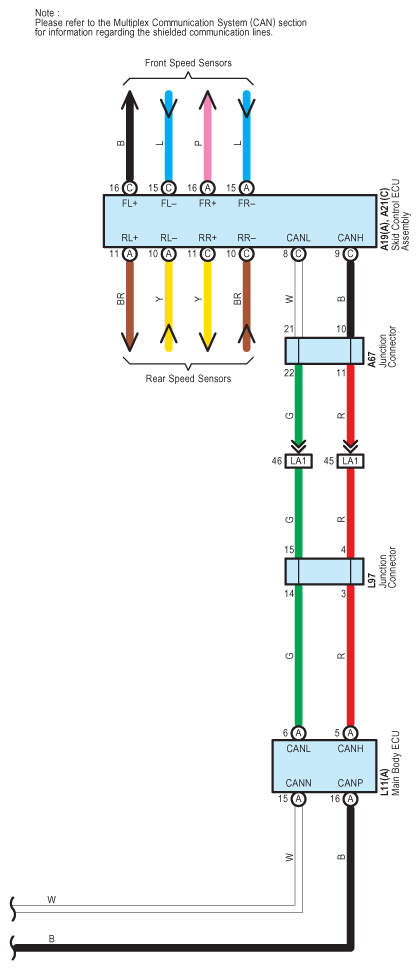

Fig 3: Tire Pressure Warning System - Wiring Diagram (3 Of 3)
G08936977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
