Home >> Lexus >> 2012 >> RX 350 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

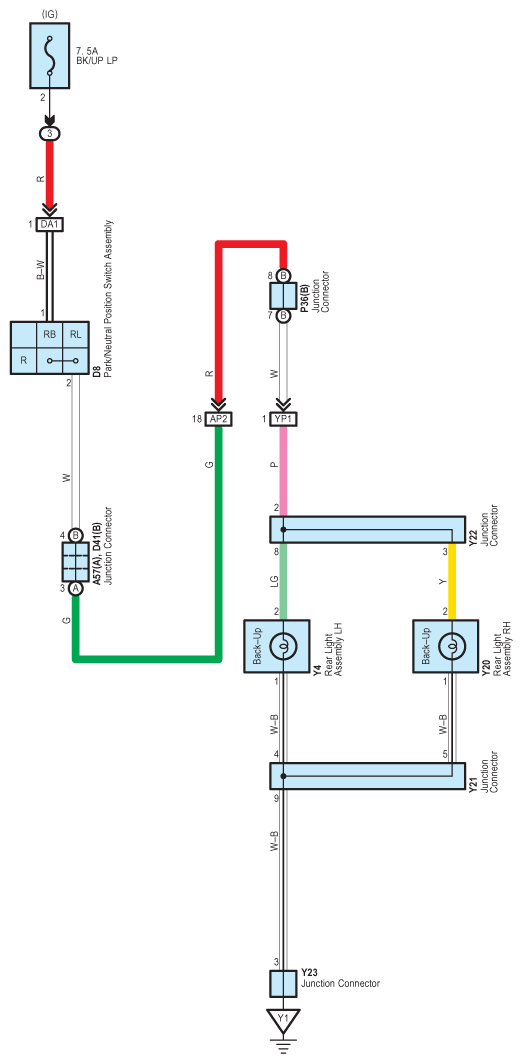

Fig 1: Back-Up Light - Wiring Diagram
G08938240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
